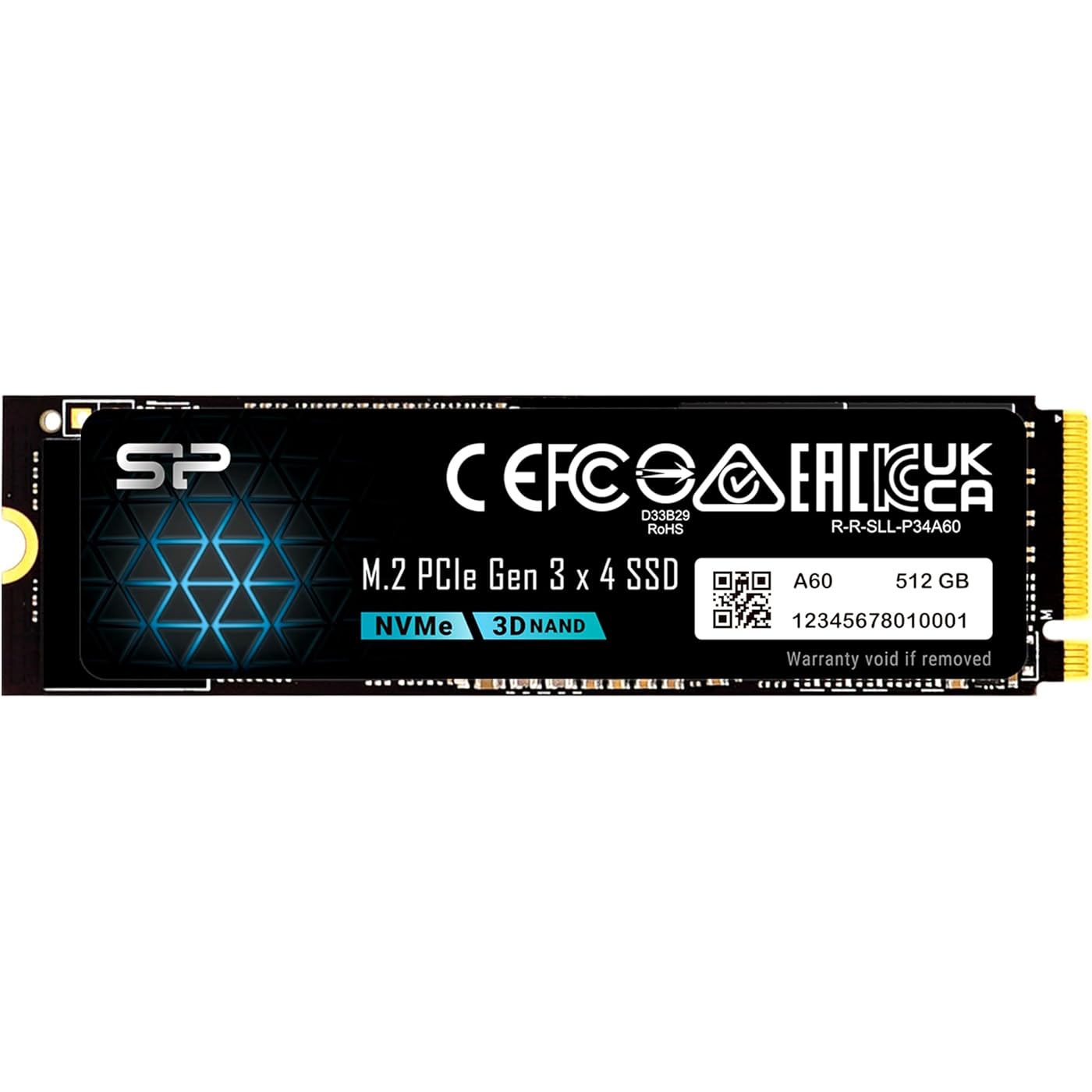

Silicon Power 512GB NVMe M.2 PCIe Gen3x4 2280 SSD (SP512GBP34A60M28)

Features

• PCIe Gen 3x4 interface with read speeds up to 2,200MB/s and write speeds up to 1,600MB/s
• TBW=300 The warranty terms on all of its SSDs are based on whether the warranty length or TBW limit occurs first.
• The custom screw should come with the motherboard or PC. Please acquire the screw from your motherboard or PC Manufacturer, if needed
• To support a Silicon Power PCIe SSD, the system must have an M.2 connector with only an M key. The Silicon Power PCIe SSD does not have a B notch and therefore, the B key on the SSD connector will prevent it from being inserted.
• Need Help? Contact U.S. Tech Support First! If your device isnt recognized, cant be formatted, or stops working. Our U.S. tech team can help fix the issue quickly. Email: We support common problems like: Drive not showing up, Formatting errors, Device stopped working after short use, etc.

Description

The P34A60 is an affordable storage solution that doesn't skimp on performance. It's designed for novice users, DIY system builders, purpose- built system manufacturers, and simply those who are looking to upgrade their PC. But with a PCIe Gen3x4 interface, which means four lanes are used for transmitting and receiving data simultaneously, read speeds up to 2,200 MB/s, and write speeds up to 1,600 MB/s, this SSD is anything but basic. The P34A60 supports NVMe 1.3, which demands better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency. In addition, HMB (Host Memory Buffer) architecture, which allows the host driver to allocate system memory (RAM) for exclusive use by the SSD, results in higher efficiency. It's this teamwork that provides optimum performance. The P34A60 is engineered with LDPC (Low-Density Parity Check) coding, a powerful error correction code (ECC) algorithm, to keep data secure. Furthermore, End-To-End (E2E) data protection, to ensure that accessed and retrieved data are correct from start to finish, and a RAID engine, which provides an acceptable level of fault tolerance, work to enhance data integrity for greater reliability and stability. With an M.2 2280 (80mm) form factor, the P34A60's compact size allows for easy installation in laptops, small form factor PC systems, and some ultrabooks. And with up to a massive 2TB capacity option, it's an easy upgrade that can greatly expand your system's storage potential while also saving space for other components.

Digital Storage Capacity: 512 GB

Hard Disk Interface: Solid State

Connectivity Technology: PCIe Gen3.0

Brand: SP Silicon Power

Special Feature: TRIM Support

Hard Disk Form Factor: 2280 Centimeters

Hard Disk Description: Solid State Drive

Compatible Devices: Desktop

Installation Type: Internal Hard Drive

Color: black

Digital Storage Capacity: 512 GB

Hard Disk Interface: Solid State

Connectivity Technology: PCIe Gen3.0

Additional Features: TRIM Support

Hard Disk Form Factor: 2280 Centimeters

Compatible Devices: Desktop

Read Speed: 2200 Megabytes Per Second

Media Speed: 1600 megabits_per_second

Cache Memory Installed Size: 512

Data Transfer Rate: 2200 Megabits Per Second

Form Factor: M.2 2280 (80mm) form factor

Hardware Connectivity: USB

Hard-Drive Size: 512 GB

Item Weight: 8 Grams

Item Dimensions L x W x Thickness: 3.15"L x 0.87"W x 0.16"Th

Number of Items: 1

Customer Package Type: FFP

Brand: SP Silicon Power

Model Number: P34A60

Hard Disk Description: Solid State Drive

Built-In Media: SSD, possibly custom screw

Model Name: P34A60

Manufacturer: SP Silicon Power

Global Trade Identification Number: 29

UPC: 886576049526 886576048529

Installation Type: Internal Hard Drive

Color: black

Enclosure Material: Nand
