At a glance
- Condition
- New
- Size
- 24V 100Ah(Mini)-A105
- Number of Items
- 1
- Model
- EA-C14514B-0E
- Dimensions
- 6.93"D x 13.11"W x 9.45"H
- Weight
- 44.1 lb
- Voltage
- 25.6 volts
Features 9

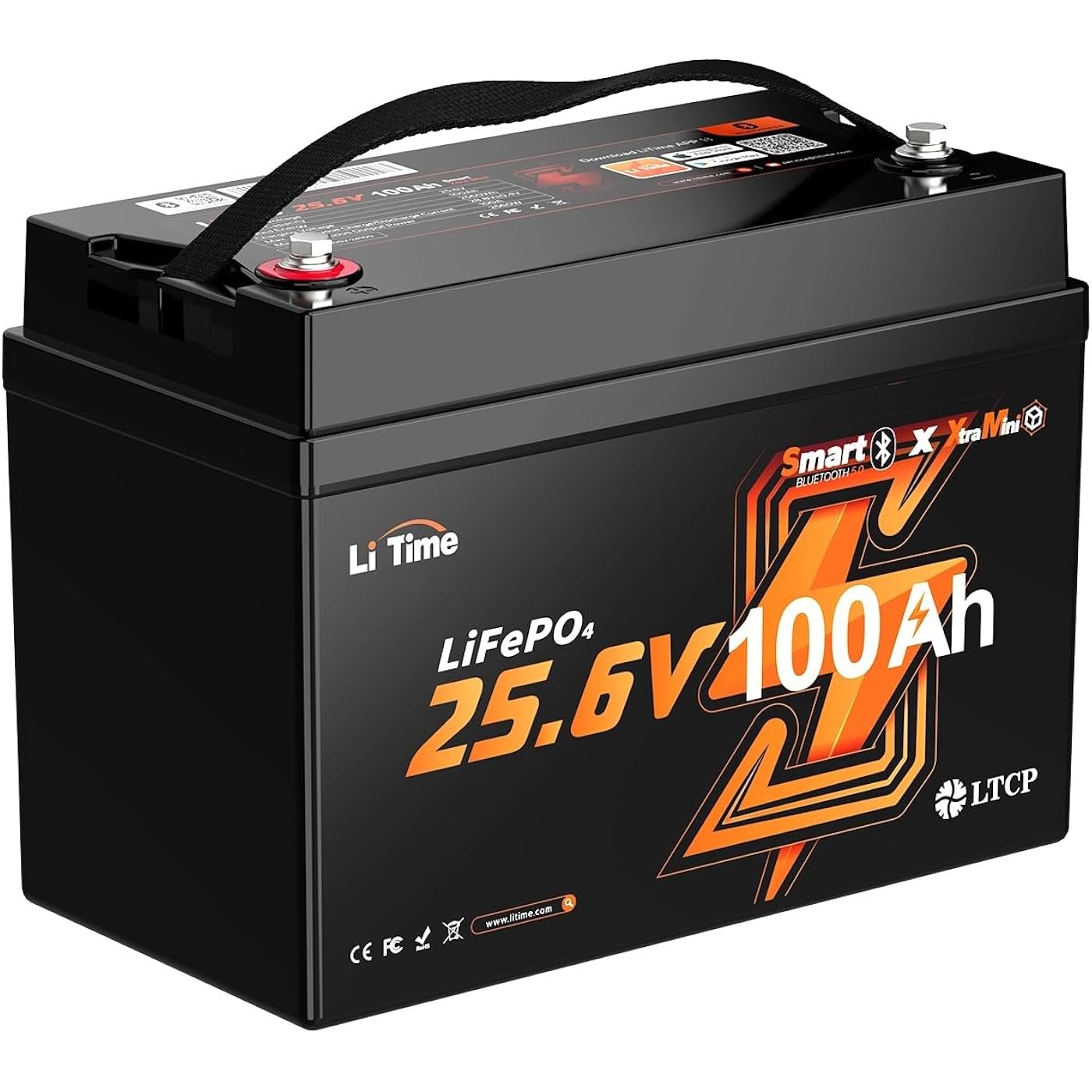

- Group 31size Footprint: Compact size (13.11"L x 6.93"W x 9.45"H) fits most RV Group 31 trays, but height exceeds standard sealed Group 31 battery boxesplease verify installation clearance before purchase.
- Built for 24V Power Systems: Engineered for 24V RV, Marine and more off-grid setups, providing stable voltage and reliable all-day power for boondocking, solar integration, and more.
- More Energy, Same Space: Delivers a full 2560Wh with a high energy density of 187.9 Wh/Lup to 40.8% smaller than traditional 24V 100Ah batteries, helping extend your off-grid runtime.
- Bluetooth 5.0 Monitoring: Monitor SOC, voltage, current, and system status directly from your phone via the LiTime App, giving you real-time visibility and better control wherever the road takes you.
- EV-Grade Cells & Smart BMS: Powered by EV-grade LiFePO4 cells rated for 6,000+ cycles at 100% depth of discharge. Paired with LiTimes self-developed 5.0 BMS, delivering 20+ protections for safe, stable, long-term operation.
- Low-temp Cut-off Protection: Automatically safeguards the battery during charging and discharging in freezing conditionsideal for cold campsites and shoulder-season travel.
- Expandable Power System: Supports expansion up to 4P2S, delivering up to 20.48 kWh of system energy for larger RV builds and extended off-grid setups.
- Certified for RV & Off-Grid Use: IP65-rated for dust and water resistance. Certified to CE, RoHS, UN38.3, and FCC standards to meet recognized safety and transportation requirements.
- Protection Upgrade: This LiTime product is covered by AIG Product Liability Insurance, effective from May 22, 2026.
Description
for Marine Boat RV Off grid Solar Energy Storage Improper use1: Battery won't charge or shows 0V. How to fix? Use a 29.2V LiFePO4 charger with 0V activation; if no response, unplug and re‑plug the AC input to reset. Alternatively, connect to a 24V LiFePO4 controller/inverter/solar charger for 3‑10 seconds. Once voltage exceeds 20V, charge normally. Improper use2: Battery won't charge (voltage >0V). What are common causes? Improper use2: Battery won't charge (voltage >0V). What are common causes? Improper use3: Bluetooth won't connect via code. How to fix? Ensure the LiTime APP is installed and the battery has sufficient voltage. Check the battery level. Restart the APP and your phone's Bluetooth, and move closer to the battery. If still not working, contact our support team. 24V 100Ah Group 31 24V 100Ah COM 24V 100Ah Bluetooth 24V 100Ah Basic 24V 230Ah Self Heating 24V 20A Lithium Charger 3000W Inverter Charger
Specs 21
| Brand | Litime |
|---|---|
| Vehicle Service Type | Not for Starting Engines. Ideal for 24V RV Campers, Marine Boat Trolling Motor, Home Energy Storage, Off-Grid Solar Power System. |
| Size | 24V 100Ah(Mini)-A105 |
| Voltage | 25.6 volts |
| Battery Cell Composition | Lithium Ion |
| Item Weight | 44.1 pounds |
| Product Dimensions | 6.93"D x 13.11"W x 9.45"H |
| Resistance | 40 milliohms |
| Terminal | M8*16mm |
| Battery Capacity | 100 Ah |
| Compatible with Vehicle Type | Not for Starting Engines. Ideal for 24V RV Campers, Marine Boat Trolling Motor, Home Energy Storage, Off-Grid Solar Power System. |
| Automotive Fit Type | Vehicle Specific Fit |
| Item Dimensions D x W x H | 6.93"D x 13.11"W x 9.45"H |
| Battery Type | Lithium Ion |
| Brand Name | Litime |
| Manufacturer Part Number | L24V100-100-BT-8-A105-1 |
| Item Highlight | Group 31+, Bluetooth, 6000+ Deep Cycle, IP65 Waterproof, Low-temp Cutoff, Max 4P2S, for Marine, Trolling Motor, Solar Storage |
| Model Number | EA-C14514B-0E |
| Manufacturer | LiTime |
| Number of Items | 1 |
| Manufacturer Warranty Description | 5 Years Warranty |
