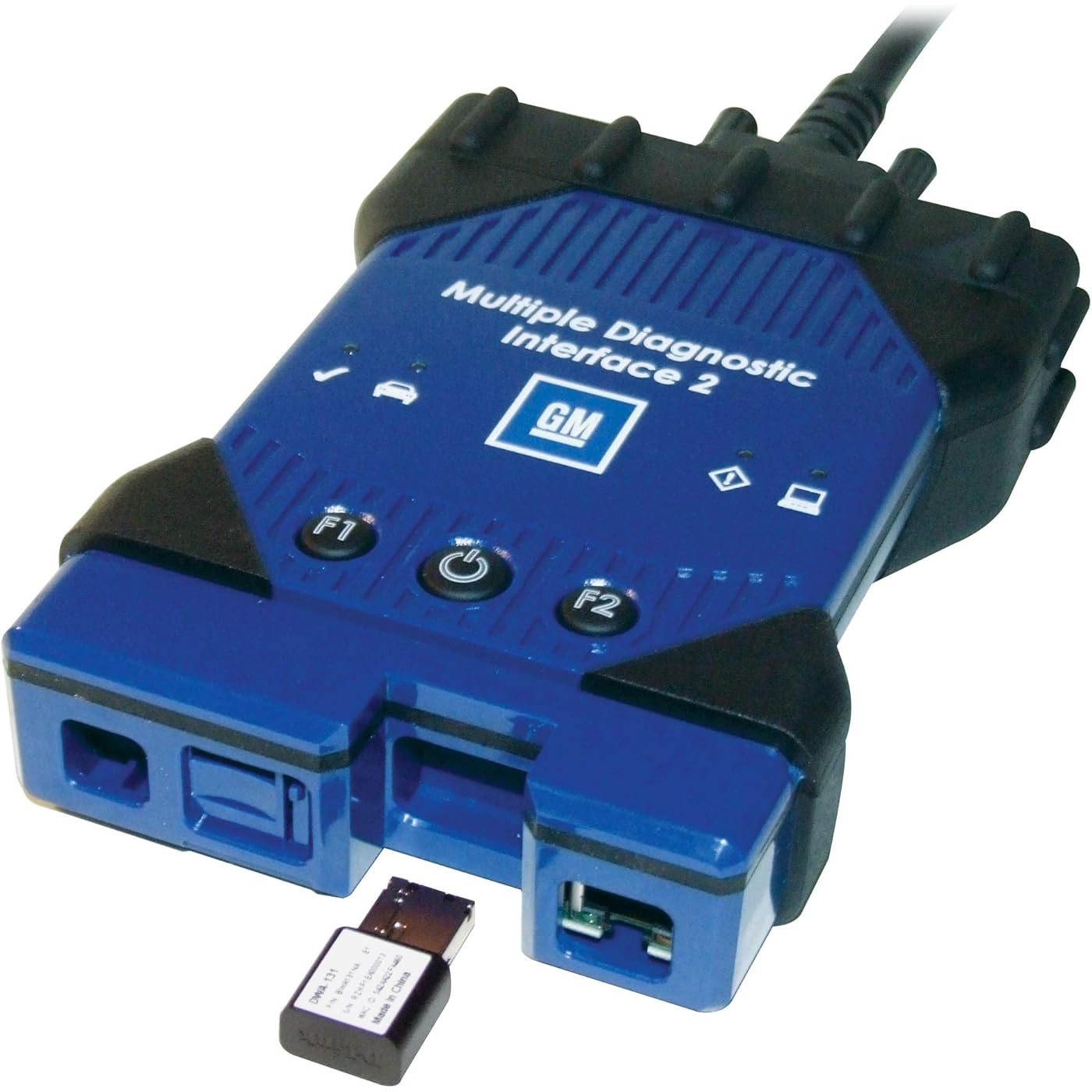

Bosch EL-52100-AM GM Global Multiple Diagnostic Interface (MDI 2) Kit

Features

• EL-52100-AM offers the freedom of a wireless connection - simple plug and play configuration with upgraded wireless protocol support (includes 802.11 bgn)
• High Speed USB 2 0 connection features reinforced USB connector and connector housing and improved protection from ground offset failures while delivering faster firmware downloads
• Super-Caps provide improved stability during engine crank (no batteries to leak or replace) while industrial grade construction offers an extend operating temperature range
• Enclosure design protects tool from exposure to fluids and inadvertent mishandling or drops; Automatic power down function engages if over temperature condition is detected
• Additional vehicle communications protocols include upcoming Global B vehicles with faster data buses; SAE J2534 and ISO-22900 compliant
• New hardware expansion capable with two host USB expansion ports for future peripherals, SD memory card slot for future software applications, and programmable function buttons for future software features and applications
• Tool requires Tech2WIN (1996-2013 vehicles) and/or GDS2 (2010-Newer) software (not included); Required software licensed through ACDelco - visitor call

Description

The GM MDI 2 is the next generation Global Diagnostic Interface tool for both current and future vehicles starting with Global A vehicles, and extending through future vehicle protocols and architectures. It's a compact communication module with increased processing power and security that manages the transfer of data between a vehicle's onboard ECU network with an auxiliary CAN bus. The GM MDI 2 replaces the MDI introduced in 2007 and offers faster programming speed than the MDI. The MDI 2 can be used to perform Pass-Thru programming on all vehicles built since 1996 and into the future. Servicing the current generation Global A vehicles will require the diagnostic software, GDS2, Global Diagnostic System 2 running on a local PC device while the MDI or MDI 2 is connected to the vehicle. The MDI 2 connects to the vehicle via the J1962 connector using a new DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB) or through a NEW Point-to-Point wireless feature, and the dealership network (CAT5, or Wireless). Kit includes: MDI device, DLC Cable SAE J1962, 10-ft. USB A to USB B Cable, Ethernet Cable, Two pcs. of D-Link Wireless USB Adapters (Dongles) for wireless connection Note: This product requires the GM GDS2 software. Contact GM AC Delco to purchase a subscription. Contact AC Delco at: acdelcotds Help Desk: prompt 3

Brand: Bosch

Operating System: Windows XP

UPC:

Global Trade Identification Number: 70

Manufacturer: Bosch Automotive

Manufacturer: ‎Bosch Automotive

Brand: ‎Bosch

Model: ‎Bosch EL-52100-AM GM Multiple Diagnostic Interface 2 (MDI 2) Kit

Item Weight: ‎2.48 pounds

Package Dimensions: ‎11.22 x 6.89 x 3.31 inches

Item model number: ‎EL-52100-AM

Manufacturer Part Number: ‎EL-52100-AM

Date First Available: October 25, 2018
