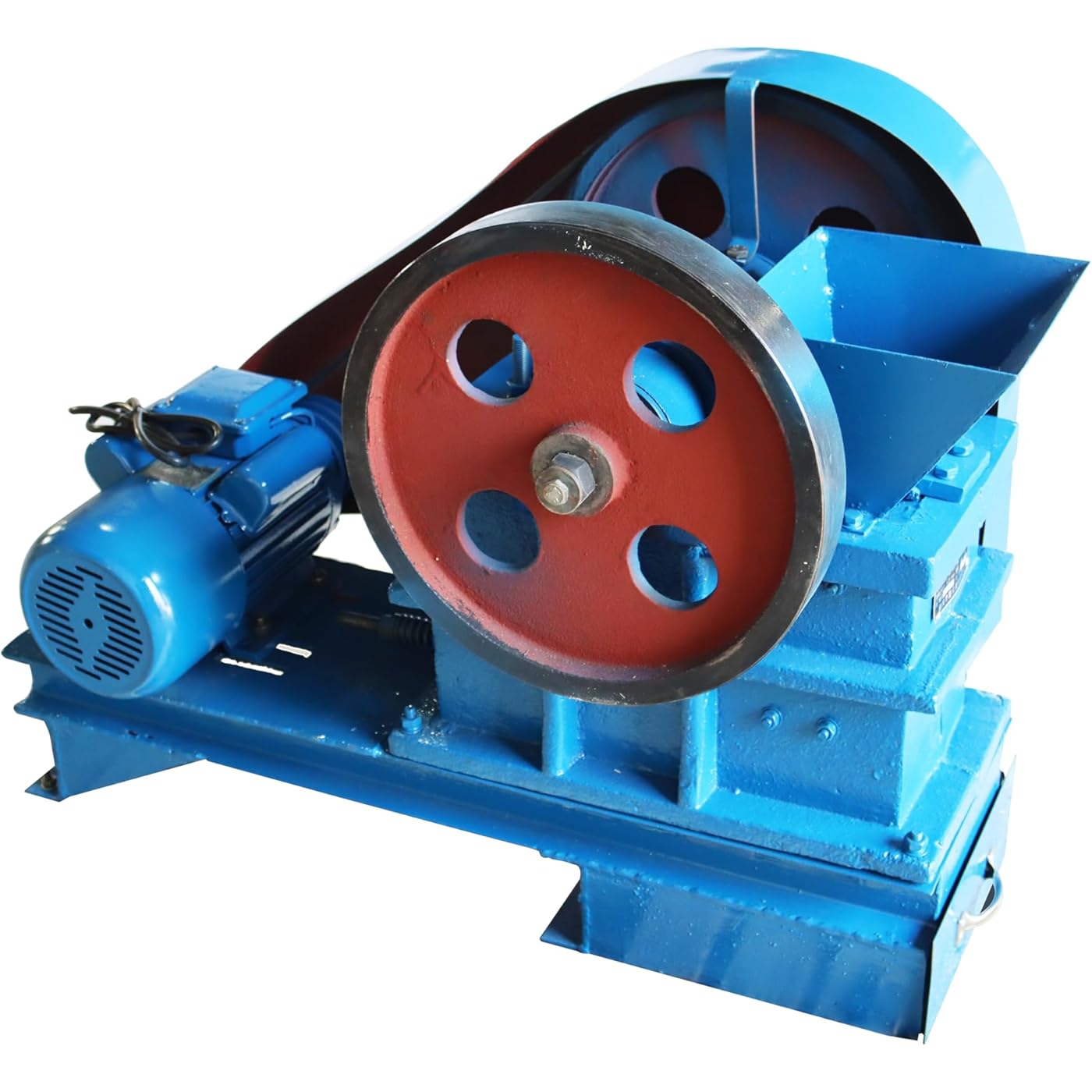

Jaw Crusher Machine for Rock Coal Glass Stone Rock Stone Milling Crush Machine Jaw Crusher Machine with Drawer Type Outlet 1430RPM 480-1800KG/H 2.2KW 220V

Features

• [Powerful Motor]:This machine is equipped with 2.2 KW high power pure copper motor,which the rotating speed up to 1430 rpm and crushing capacity of up to 480-1800 kg/h.The body of the machine is made of high strength material,with high bearing capacity and crushing strength
• [High Crushing Ratio]:Jaw crusher has a large crushing ratio,which can crush materials into smaller size,and the size of discharge material is uniform.Adopting eccentric shaft design,the material can be crushed more fully in the crushing chamber,which improves the production efficiency
• [Excellent Design]:Drawer type discharge port design enables materials to fall directly into the drawer,effectively reducing dust leakage,the operator can easily pull out the drawer to collect materials,easy to operate
• [Application]:The machine is suitable for crushing materials:calcite,talcum,cabblestones,kaolin,slag,steel slag,diabase,coom,coalgangue,maifanstone,basalt,iron ore,quartz sand,CaCO3,bentonite,ect.
• [Parameter]:Power:2.2 KW;Voltage:220 V;Feeding inlet size:3.15*6.3 inch;Feeding size:3.94 inch;Output size:0.2-0.98 inch(5-25 mm);Rotating speed:1430 rpm;Capacity:480-1800 kg/h Note:This machine has no plug and needs to be connected to the circuit breaker for use by the customer

Description

Attention:1.The installation foundation of the machine body must be firm and flat to prevent the machine body from being broken due to uneven stress.2.Before commissioning,check whether the fastening screws are tightened and whether the pulley is flexible to be turned by hand.If any abnormality is found,the commissioning can only be carried out after troubleshooting.3.Before the test run,the no-load test run must be carried out.During the idle test,turn the small handwheel to check whether the regulating mechanism is flexible.It can only be used if there is no abnormality after half an hour of no-load.4.The hardness of the broken material should not exceed the medium hardness to avoid accelerating the damage of the parts and reducing the service life.5.For the convenience of discharging,the installation height of the whole machine can be properly raised during installation.

Brand: EQCOTWEA

Power Source: Corded Electric

Manufacturer: EQCOTWEA

UPC:

Brand Name: ‎EQCOTWEA

Model Info: ‎TETPY-021532

Item Weight: ‎514 pounds

Product Dimensions: ‎42.52 x 24.02 x 35.04 inches

Item model number: ‎TETPY-021532

Part Number: ‎TETPY-021532

Voltage: ‎220 Volts

Wattage: ‎2.2 KW

Included Components: ‎Jaw Crusher

Date First Available: April 3, 2025
