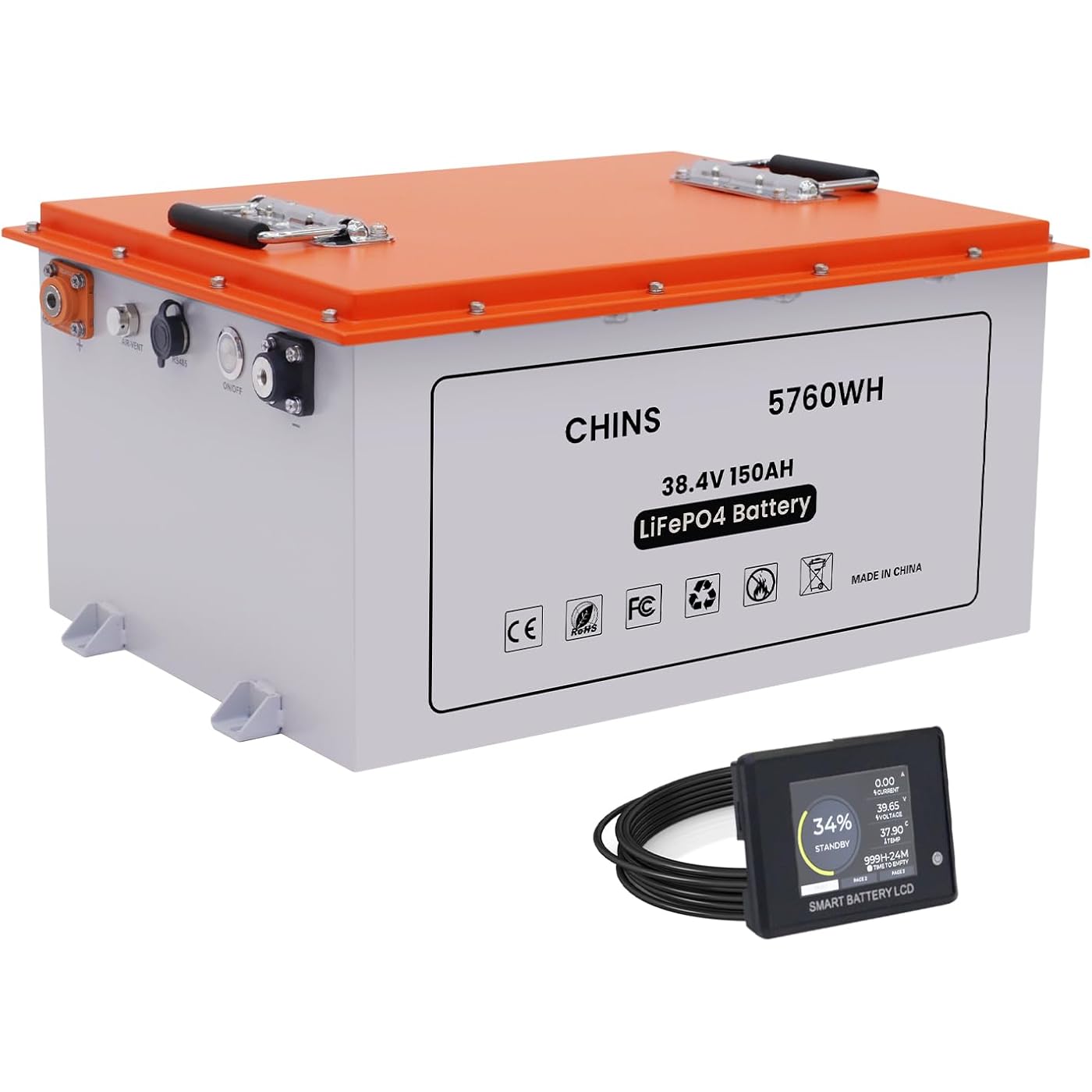

CHINS Smart LiFePO4 Battery Bluetooth 36V 150AH Lithium Battery Perfect for Golf Cart, Trolling Motor, Marine, Built-in 200A BMS, Includes Battery Monitor, Peak Current 1000A

Features

• Deep Cycle Battery: CHINS LiFePO4 battery provides 2000+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. The weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity. Brand: CHINS, Size: 17.71 x 13.77 x 8.66 inchs, Color: Gray, Orange
• Capacity Expansion: CHINS 36V 150AH LiFePO4 Battery does not support series connection, otherwise the battery will definitely suffer irreversible damage. Connection in parallel: it can connect multiple batteries, suggest no more than 4pcs in parallel. Allow to be extended up to 4 in parallel to get more capacity (Max 600Ah). Note: 36V 150Ah LiFePO4 Battery, support the peak current of the golf cart controller no more than 1000A.
• Built-In BMS & Convenience & Maintenance Free: CHINS LiFePO4 battery has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high temp cut off prevents charging over 122 F (50 C). Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults. This product fits for outdoor camping power and indoor easy installation.
• Bluetooth and Battery Monitor : Compared with the traditional battery monitor, CHINS lithium battery has added Bluetooth function and can obtain various data (SOC) of the lithium iron phosphate battery. Customers can connect to the battery through the mobile phone APP, and read the battery voltage, current, battery capacity and other important information at any time. Wireless connection range: within 5-10 meters from the battery. This product includes a battery monitor.
• Widely Used: CHINS lithium iron phosphate battery can be used in the following areas: Home energy storage system, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY loud speaker, fish finder, golf cart, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and more. When the batteries are used in parallel, the battery voltage and capacity must be the same, and purchased in near time(within 6 month).

Description

About CHINS Battery  CHINS has its own factory, are mainly engaged in LiFePO4 and lithium-ion battery business, which is very suitable for RV, Caravan, Solar, Marine, Home Storage and Off-Grid. CHINS’s team keep strive to maintain a green life on the way of continuing to explore the new energry, in order to provide a better low-carbon life for people. CHINS is equipped with the most advanced R&D team and equipment, and our products have obtained CE, ROHS, WEEE and PSE quality system certification. We also set up our own warehouse in California, USA.  Specifications  Rated Capacity (0.2C): 150Ah / 5760Wh Cycle life: 2000+ cycles at 80% discharge depth Rated voltage: 38.4V Charge voltage: 42.6V - 43.2V Depth of Discharge (DoD): 100% Standard charge current: 30A Charging time: Approximately 6 hours Max continuous charge current: 150A Max continuous discharge current: 150A Peak discharge current: 1000A (Duration: less than 3~5 seconds) Operating temperatures: Charge 0°C~50°C(32°F~122°F), Discharge -20°C~60°C(-4°F~140°F), Storage -10°C~50°C(14°F~122°F) Impedance: ≤ 6mΩ Brand: CHINS Size: 17.71 x 13.77 x 8.66 inchs Color: Gray, Orange.

Brand: CHINS

Vehicle Service Type: Golf Cart

Battery Cell Composition: Lithium Metal

Automotive Fit Type: Universal Fit

Manufacturer: CHINS

UPC:

Manufacturer: ‎CHINS

Brand: ‎CHINS

Model: ‎36V 150Ah

Item model number: ‎36V 150Ah

Batteries: ‎1 D batteries required.

Manufacturer Part Number: ‎LAF36150

Date First Available: July 26, 2023
