BSIDE Thermal Imaging Camera 240×240 Resolution 15 Color Palettes Infrared Thermal Imager -4°F to 1022°F 25Hz Rechargeable Handheld Thermal Camera with Laser Pointer 50°FOV

Features

• 240240 Resolution: Thermal imaging camera has 240*240 resolution for clearer real-time viewing and capturing of photos. 50mk thermal sensitivity allows visualization of temperature differences, helping you to detect problems early and diagnose them reliably. 25Hz high frame rate ensures a smooth on-screen viewing experience during anomaly detection.
• 15 color palettes: There are 15 color palettes that give you the flexibility to choose the most suitable palette according to different detection scenarios and purposes.
• Highly accurate measurements: The camera measures temperatures from -20C to 550C (-4F to 1022F). Industrial thermal imaging cameras can adjust the distance to the object and fine-tune the emissivity setting for specific materials, ensuring more accurate temperature measurements on a wide range of substances such as cement and bricks.

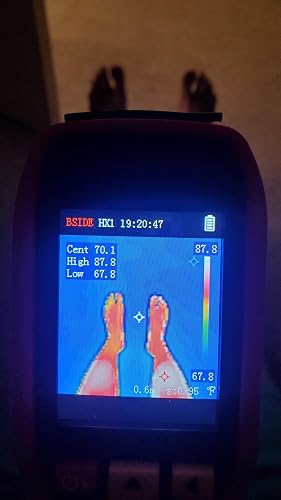

• 2.4-inch TFT color screen: This thermal camera features a 2.4-inch 320 x 240 TFT full view color screen for easier viewing. It can automatically identify the maximum, minimum and center temperatures, which are displayed in the upper left corner of the screen. Makes it easier for you to see 3 pieces of data at the same time.
• High/Low Temperature Alarm: The camera has a high/low temperature alarm that sounds when the temperature exceeds or falls below the set data.
• Dual injection molding process: This thermal imaging camera is made of dual injection molding process, which provides high precision and durability, and is resistant to abrasion, scratches and drops. It is also designed with a standard tripod hole to support the use of a tripod to assist in inspection work.

Description

Features: 240240 infrared resolution, more clear and more details With 15 kinds of pseudo-colors, you can flexibly choose the right color palette ℃/℉/K selectable: -20~550℃/-4~1022℉ Sufficient memory capacity, capable of storing 30,000 images With rechargeable Li-ion battery, longer battery life Specification: Display: 2.4 inch TFT LCD Sensor Type: Vanadium Oxide (VOx) Microbolometer Response band:8-14pm Thermal image resolution:240240 pixels Noise Equivalent Temperature Difference (NETD):≤60mK(@25℃,F1.0) Spatial resolution (IFOV): 8.89mrad Frame rate:25Hz Imaging lens focal length:1.35mm Temperature measurement resolution: 0.1℃ Temperature measurement focal length: 0.3m-3m adjustable Temperature range: -20℃-550℃ Temperature measurement accuracy: ± 2 ℃ Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin Pseudo-color: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue Display resolution: 320240 Image storage: 30000 Size: 193.459.477.4mm Weight: 277g Package Contents: Infrared thermal imager EVA storage bag USB charging cable Instruction manual Silicone lanyard

Product Dimensions ‏ : ‎ 7.61 x 2.34 x 3.05 inches; 0.63 ounces

Item model number ‏ : ‎ HX1 Caméra d'imagerie thermique

Batteries ‏ : ‎ 1 Lithium Ion batteries required. (included)

Date First Available ‏ : ‎ July 29, 2024

Manufacturer ‏ : ‎ BSIDE
