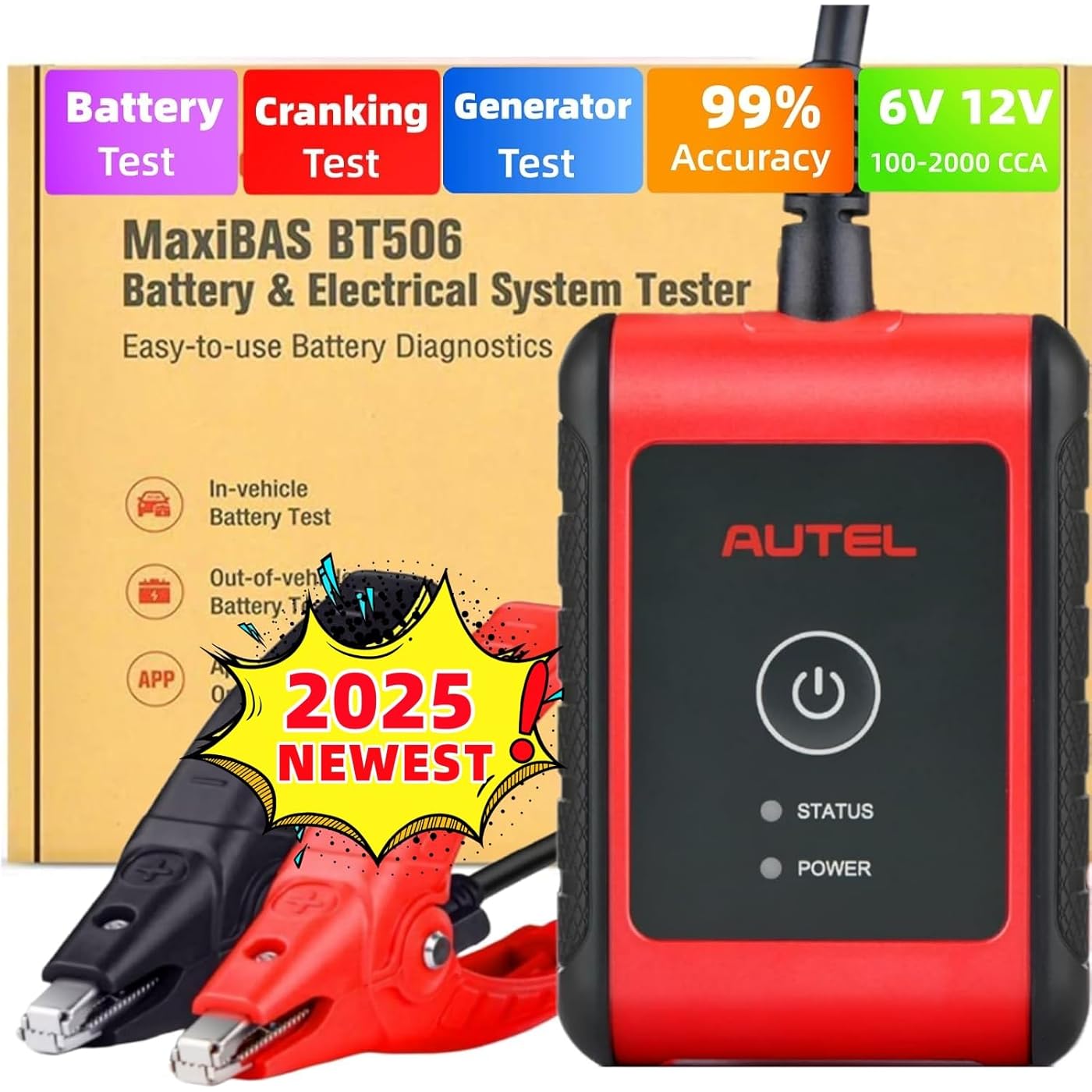

Autel MaxiBAS BT506 Auto Battery & Electrical System Analysis Tool, 6V 12V 100-2000 CCA Automotive Battery Analyzer, Top Accuracy Adaptive Conductance, in & Out-of-Vehicle Test for All Cars

Features

• Adaptive Conductance, Top AccuracyAutel battery tester BT506 automobile battery tester is designed for 6V or 12V batteries with a capacity of 100 to 2000 CCA, such as regular flooded, AGM flat plate, AGM spiral, GEL and EFB , The test results based on JIS, EN, DIN, SAE, CCA, CA, MCA and IEC Standards. Advanced adaptive conductance provides detailed solution to check battery health and detect faults, and give you accurate test result in seconds.
• WORK WITH 99% AUTEL SCANNERSAutel BT506 can work with Autel MK808BT/ MK808BT / MK808TS/ MK808S-TS/ D808TS//DS808S-TS/ MP808TS/ MP808BT/ MP808BT Pro/ MS906S/ MS906TS/ MS906BT/ MK906BT/ MS906 Pro/ MS906 Pro-TS/ MK906 Pro/ MK906 Pro-TS/ MS908/ MS908S/ MS908SPro/ Maxisys Elite/ Maxisys Elite ll/ MS909/MS919/Ultra/Ultra Lite to perform in-vehicle and out-of-vehicle battery testing to keep battery health.Note: BT506 doesn't work with MK908 & MK908P and Autel wired scanner and key programming tools.
• Start UP AND CHARGE testBT506 supports start up test, through start up voltage, current, start up time and engine parameters to grasp the real situation of the start up system, and give maintenance suggestions. Advanced adaptive conductance provides detailed solution to check battery health and detect faults, and give you accurate test result in seconds.Follow the on-screen instructions to complete the test, providing step-by-step instructions, and no need for novices to worry at all.
• IN-VEHICLE & OUT-OF-VEHICLE TESTSAutel MaxiBAS BT506 battery load test tool supports both In-Vehicle & Out-Of-Vehicle Tests. In In-Vehicle Test, you can perform Battery, Starter & Generator Tests. You can know cranking time & voltage so to tell if the Cranking is working normally. You can also check if the generator provides sufficient power to the vehicle electrical system and how the battery holds the charge. Autel BT506 can also test on the battery out of the car for health check.
• Identify Low Capacity & Abnormal Cells QuicklyBT506 adaptive conductance technology is OTT automotive battery test a visual product, different from general battery test tools, the misdiagnosis rate is high, the diagnosis is inaccurate and BT506 allows you to test in the case of not running out of battery, the function can quickly identify the battery cold start capability, low capacity battery and discharge the battery testing, improve the rates of detection of abnormal cells, To minimize miscarriage of justice. Reduce the number of retests
• Autel BT506 BONUS FEATURES Aute car battery test BT506 added more bonus functions with constant price for technicians, garages, and plants. 1. Check battery test reports with easy viewing, sharing, and printing. 2. Accurate locate battery location diagrams. 3. Record all test records and upload data logging. 4. Purchase extra V200P, upgrade BT506 to BT508, unlock battery registration, battery replace, electrical reset functions.

Description

Autel Intelligent Scan Autel Automotive Electronic Products, AutomotiveTestingAutomotive Diagnosis , Auto Parts, etc. Autel is one of the world's famous providers ofautomotive intelligent Scan, inspection,and TPMS products and services. We have now built threeproduct lines including automotive diagnosticproducts,TPMS series for automotive tirepressure monitoring systems and ADAS series forautomotive intelligent assisted driving systems Following is the benefits of adaptive conductance technology: Test Accuracy Rate by 95.31%;Bad Battery Detection Rate by 62.55%;Reduce Charge & Retest Rate by 30.01%. Detect low-capacity batteries, 100% detection rate of bad batteries.Diagnose Low Capacity or Completely Discharged Batteries. Reduce Battery Misdiagnosis and retest.With the Adaptive Conductance Technology, BT506 realizes faster diagnosis and higher efficiency. Highlights of Autel BT506: Support in-vehicle and out-of-vehicle tests. Test 6- and 12-volt, 100-2000 CCA Batteries.Test 12- and 24- Cranking/ Charging Systems.Test Flooded, AGM, AGM Spiral, EFB and GEL batteries. Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA standards. Adaptive Conductance for 95% accuracy, Top accuracy in Industry Display test records in list form, offering a summary review tested and vehicles and/or batteries. PDF test report for easy viewing, sharing, printing, Permanently valid FREE software updates. Benefit of adaptive conductive technology:Reduce the battery misjudgment rate to a minimum,Improve the bad battery detection rate..Reduce retest times.Ensure the power of the battery under test during the test. 1. Generator Test: Generator test refers to test different parts of the charging system, including generators, rectifiers, rectifier diodes, etc., to obtain the real charging voltage value. All battery data about ripple, no-load voltage, load voltage are displayed to customers. 2. Starter Test Starter test help you analyze the starter motor, including start voltage and start time, to check if the starter motor is working properly. Load voltage refers to the voltage measured when on-board electrical appliances (such as headlamps) are turned on. No-load voltage is the voltage measured when all on-board electrical appliances are turned off. Start time is the time it takes for the vehicle to turn on the engine 3. Battery Test After battery test is completed, SOH (state of health), SOC (state of charge), voltage, current, rating, and specific guidance and suggestions can be visually displayed, and the batteries can be clearly divided into: Good Battery; Good & Recharge; Charge & Retest; Bad Cell; Replace Battery.

Brand: Autel

Power Source: Battery Powered

Style: Modern

Color: Black, Red

Item Weight: 1.2 pounds

Power Source: Battery Powered

Minimum Operating Voltage: 1.5 volts_of_direct_current

Upper Temperature Rating: 50 °C

Measurement Type: Voltmeter, Ammeter, Ohmmeter

Compatible Devices: Autel MK808BT, MK808TS, D808TS, DS808S-TS, MP808TS, MP808BT, MS906S, MS906TS, MS906BT, MK906BT, MS906 Pro, MS906 Pro-TS, MK906 Pro, MK906 Pro-TS, MS908, MS908S, MS908SPro, Maxisys Elite, Maxisys Elite II, MS909, MS919, Ultra, Ultra Lite

Style Name: Modern

Color: Black, Red

Item Weight: 1.2 pounds

Item Dimensions: 4.21 x 2.95 x 1.02 inches

Brand Name: Autel

Model: BT506

Unit Count: 1 Count

UPC: 792499843304

Manufacturer: Autel

Part Number: BT506-JMXD

Specification Met: Iec,sae,sae En
