At a glance
- Condition
- New
- Model
- U7-PRO-XGS
- Dimensions
- 1.28"L x 1.28"W x 1.28"H
- Weight
- 1.37 kg
- Color
- Multicolour
- Frequency Band Class
- Tri-Band
- Wireless Compability
- 802.11.be, 802.11ac, 802.11ax
- In the box
- Networking > Wireless Access Points
- Works with
- Wired Devices
Features 1
- Ubiquiti
Description

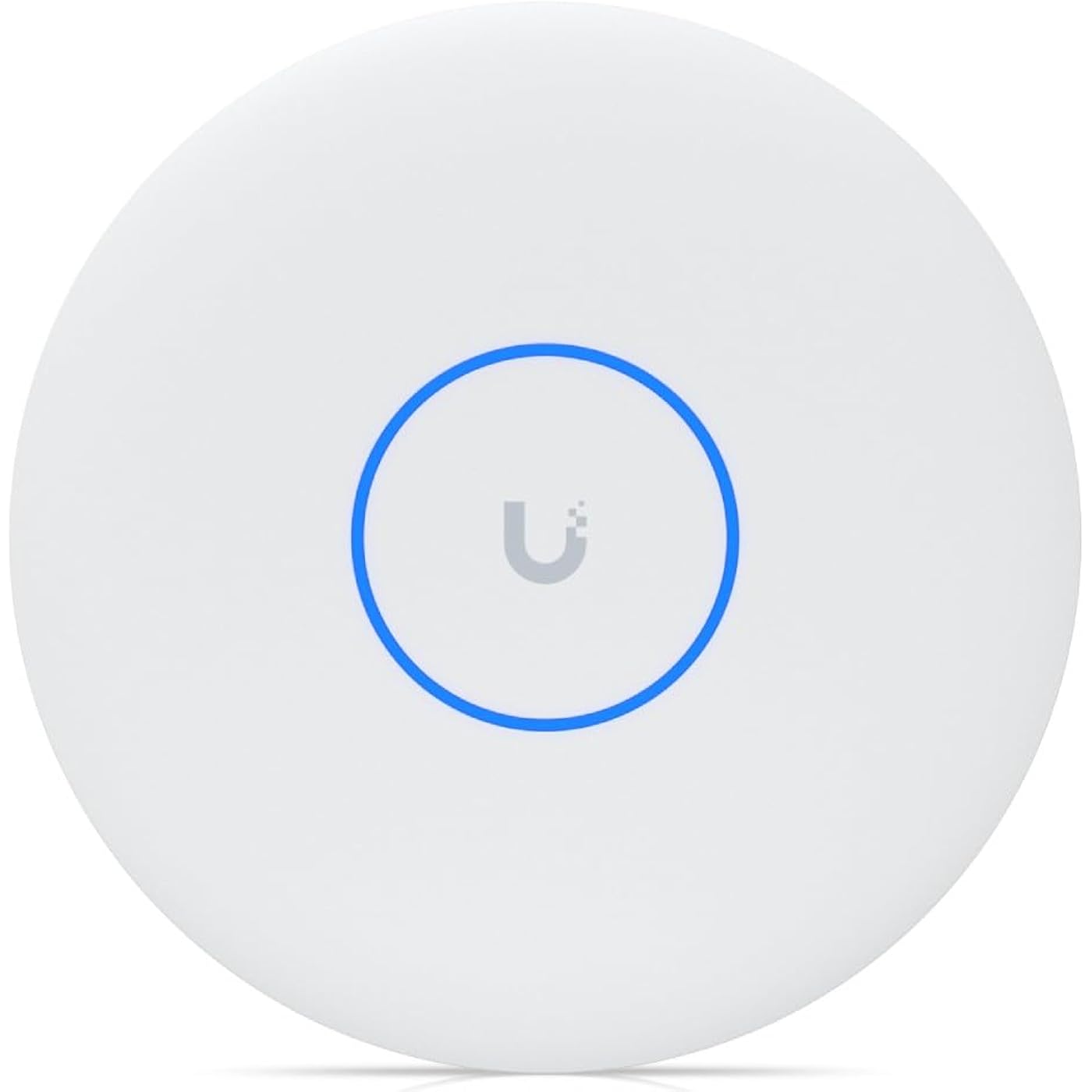

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.WiFi 7 with 6 GHz support8 spatial streamsReal-time spectral analysis for enhanced channel selection0 m2 (1,750 ft2) coverage500+ connected devicesPowered using PoE++ GbE uplinkDimensionsd215 x 32.5 mm (d8.5 x 1.3")WiFi StandardWiFi 7Spatial Streams8Coverage Area0 m2 (1,750 ft2)Max. Client Count500+Uplink GbEMountingCeiling, Wall(Lite Mount Included)Power MethodPoE++MIMO6 GHz2 x 2 (DL/UL MU-MIMO)5 GHz4 x 4 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO)Max. Data Rate6 GHz5.8 Gbps (BW320)5 GHz8.6 Gbps (BW240)2.4 GHz688 Mbps (BW40)Antenna Gain6 GHz6 dBi5 GHz6 dBi2.4 GHz4 dBiMax. TX Power6 GHz24 dBm5 GHz29 dBm2.4 GHz23 dBmMax. BSSIDs8 per RadioSupported Data Rates802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)Wireless MeshingYesBand SteeringYes802.11v BSS Transition ManagementYes802.11r Fast RoamingYes802.11k Radio Resource Management (RRM)YesZero-Wait DFSYesAdvanced Radio ManagementYesReal-Time Spectral AnalysisYesPasspoint (Hotspot 2.0)YesCaptive Hotspot PortalYesPrivate Pre- Shared Key (PPSK)YesWiFi Speed LimitingYesClient Device IsolationYesWiFi SchedulesYesRADIUS over TLS (RadSec)YesDynamic RADIUS-assigned VLANYesMax. Power Consumption29WSupported Voltage Range42.5 - 57V DCNetworking Interface(1) 10 GbE RJ45 portWeight800 g (1.8 lb)ManagementEthernetEnclosure MaterialUV-stabilized polycarbonate, aluminum alloyMount MaterialStainless steel (SUS304), galvanized steel (SGCC)LEDsSystemChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)CertificationsCE, FCC, IC
Specs 34
| Brand | Ubiquiti Networks |
|---|---|
| Model Name | U7 Pro XGS |
| Special Feature | Wi-Fi 7, Advanced Networking Capabilities |
| Frequency Band Class | Tri-Band |
| Wireless Communication Standard | 802.11.be, 802.11ac, 802.11ax |
| Recommended Uses For Product | Business |
| Connectivity Technology | Wi-Fi 7, Ethernet |
| Color | Multicolour |
| Other Special Features of the Product | Wi-Fi 7, Advanced Networking Capabilities |
| Wireless Compability | 802.11.be, 802.11ac, 802.11ax |
| Antenna Location | Business |
| Operating System | UniFi OS |
| Security Protocol | WPA2-PSK |
| Number of Ports | 2 |
| Data Transfer Rate | 8600 Mbps |
| LAN Port Bandwidth | 10000 Mbps |
| Maximum Upstream Data Transfer Rate | 688 Mbps |
| Wi-Fi Generation | Wi-Fi 7 |
| Router Network Type | wireless |
| Connectivity Range | 160 square meters |
| Connectivity Protocol | Wi-Fi, Ethernet |
| Coverage | Wide and fast wireless coverage |
| Frequency | 2.4 GHz |
| Built-In Media | Networking > Wireless Access Points |
| Model Number | U7-PRO-XGS |
| Unit Count | 1 Count |
| UPC | 810084698341 |
| Number of Items | 1 |
| Number of Packs | 1 |
| Global Trade Identification Number | 41 |
| Manufacturer | UbiQuiti |
| Mfr Part Number | U7-PRO-XGS |
| Item Weight | 1.37 kg |
| Item Dimensions L x W x H | 1.28"L x 1.28"W x 1.28"H |
