JIFETOR Engine Compression Tester 8PC Kit Cylinder Test Pressure Gauge Tool

Features

• Cylinder Pressure Test: Compression test kit for small engines totally differs from other cylinder pressure test kits, featuring 3 optional assembly ways for quick pressure test with added applicabilities. Multiple tools for assistance. This petrol gauge testing tool assists to diagnose if there are following common faults: valve sticking, carbon build-up, cracked cylinder heads or defective main gaskets, poorly seated or worn piston rings, burned or damaged pistons
• Compression Gauge Tester: Please attention this cylinder pressure gauge kit is not suitable for most diesel engines due to its low pressure range 0-20 bar. Shortcut button can instantly set pressure to zero, avoiding repeated hose disconnection. Quick coupling design makes it quick to connect. Rubber cover prevents accidental fall or scratches. Repair set fits for most types and depth spark plug well on gasoline engine cylinders for cars, motorcycles, ATVs, snowmobiles, lawn mowers, etc
• Extensive Hose: This engine compression tester kit includes a 16 inch long flexible extension hose, which made of premium rubber nylon resin material, explosion-proof. One side is equipped with a quick coupler to connect with the compression gauge, and the other side with 14 millimetre brass fittings, which can connect spark plug hole directly or can be matched with an extension rod to connect the spark plug hole
• Long Reach Rods: Unique cylinder compression test kit comes with 4 straight extension rods with metric thread manufactured from high quality aluminum. Allowing easy acccess to recessed spark plug holes when performing compression tests. Multi-sized rods are combined with the metal threaded fittings, adapting to different models and extending working distance. Multi-sizes: M10*1, M12*1.25, M14*1.25, M18*1.5 millimetres. Only the longest rod ends with a brass adapter
• Universal Auto Cylinder Pressure Test Gauge Connectors: The straight and angled push-on connectors in the motorcycle engine cylinder compression tester tool kit are equipped with rubber tapered tip for easy and quick installation, you just need to push and hold it seal against cylinder head, rather than screw to tighten like 10 12 14 18 millimetres appropriative adapters. These push-on connectors are also perfect for some types and depth spark well, which the appropriative adapters do not fit

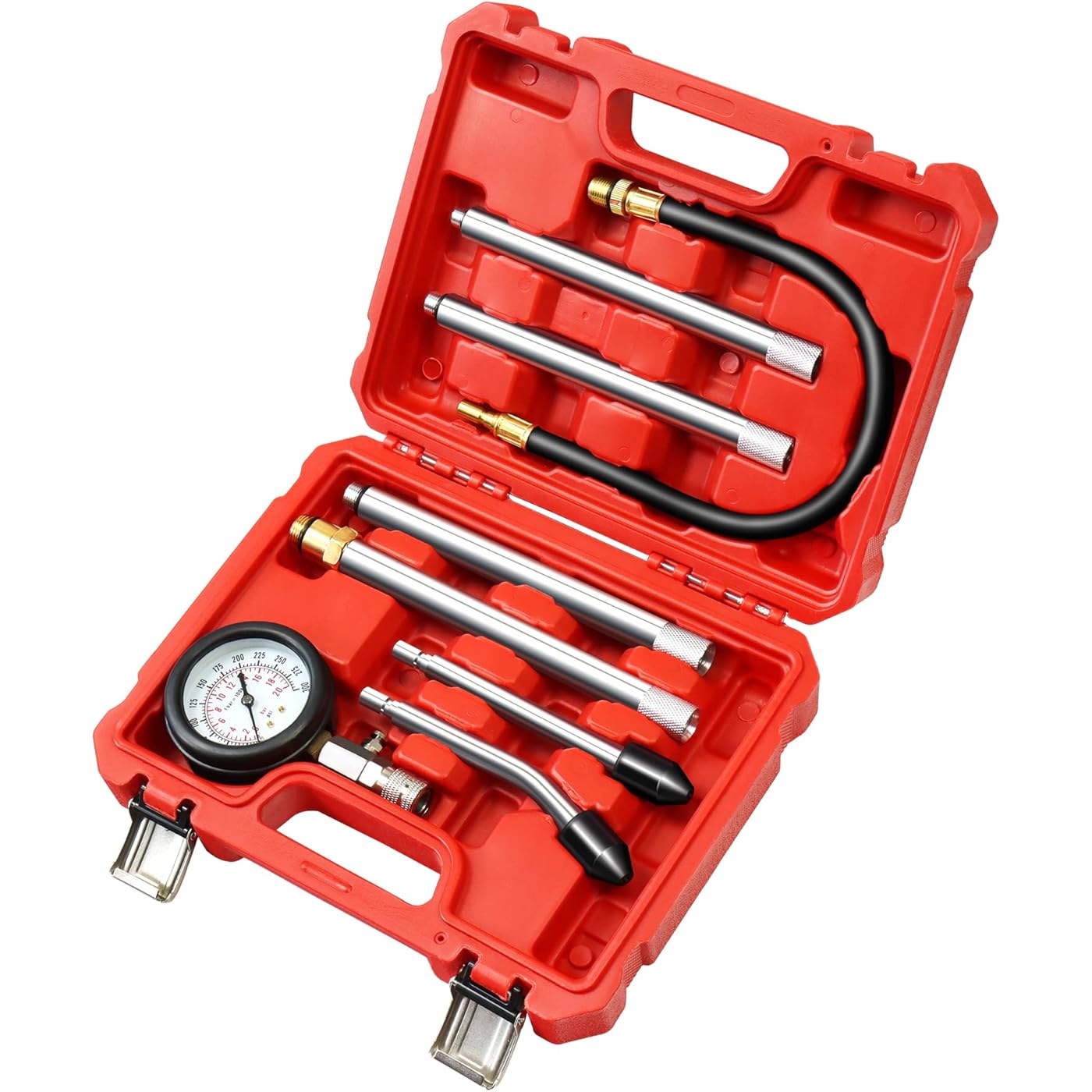

• Blow-Molded Case: Auto compression tester kit includes 1 piece compression gauge, 4 pieces extension rods, 2 pieces quick push on connectors, 1 piece long extension hose and detailed instruction. Easily accessed and organized in a sturdy wearproof plastic case for easy transportation, simple storage, and quick identification. Locking buckles for added security and molded handle for comfortable travel. Offering perfect sense of use and durability for your project

Description

Why do you need a cylinder compression pressure tester kit? 1. Troubleshooting: Gauge tester will reflect problems through its readings after a quick and perfect test. 2. Saves time&money: Normally, the work is no more than 10 minutes maximum. And if it helps find out the problem of the engine, obviously, it costs much less than its value. What makes JIFETOR cylinder compression pressure gauge tester kit special? 1. Quick and convenient diagnostic test. Helps find out the problems. 2. Push-on connectors for quick check (no need to thread into head). 3. 4-sized straight extension rods instead of brass thread adapters. 4. Blow molding box keeps everything in place and protects the pressure gauge during storage. PACKING LIST Gauge with push on connectors only. Gauge with extension hose. Gauge with extension hose and straight extension rod. With safety relief valve and quick coupler for quick test. Straight type and angled type for you to choose from. Tapered head, universal and easy for connecting the spark plug 17" in length. Adopts rubber nylon resin material for pressure and temperature resistance. 4 optional sizes (M10*1, M12*1.25, M14*1.25mm, M18*1.5) for use on extending hose distance. JIFETOR engine cylinder compression measuring meter tool set is perfect for checking compression pressure on most gasoline/gas/fuel engine cylinder, but not suitable for most diesel engine because of the low pressure range 0-300PSI. Assist to diagnose following problems: Valve sticking Carbon build-up Cracked cylinder head or defective main gasket Poorly seated or worn piston rings Burned or damaged piston NOTE 1. Please wear gloves and goggles when use. 2. It is recommended to be operated by or under the guidance of a professional auto mechanic to avoid irreversible damage to the parts or car due to misoperation. 3. Always refer to equipment manufacturer's operation instruction, compare to the manufacturer's recommended readings. 4. Always release the pressure via the release valve before disconnecting the tester. 5. Open the throttle plate wide as you test and close it in time when finished before engine being started, or the engine will be badly damaged. JIFETOR, a professional brand of auto maintenance tools: the product quality is guaranteed & the after-sales service is satisfactory

Brand: JIFETOR

Material: Alloy Steel, Aluminum, Brass, Plastic, Rubber

Item dimensions L x W x H: 10.5 x 8.5 x 2.87 inches

Item Weight: 3 pounds

Item Highlight: 10 12 14 18mm Extension Rods & Tapered Adapters Testing Small Gasoline Engine Automotive Motorcycle Outboard Motor Snowmobile See more

Brand Name: JIFETOR

Unit Count: 1 Count

Part Number: JT018S3

UPC: 690770904501

Manufacturer: JIFETOR

Included Components: Cylinder Pressure Gauge

Item Type Name: Engine Compression Tester Kit

Model: JT018S3

Material Type: Alloy Steel, Aluminum, Brass, Plastic, Rubber

Item Dimensions: 10.5 x 8.5 x 2.87 inches

Item Weight: 3 pounds
