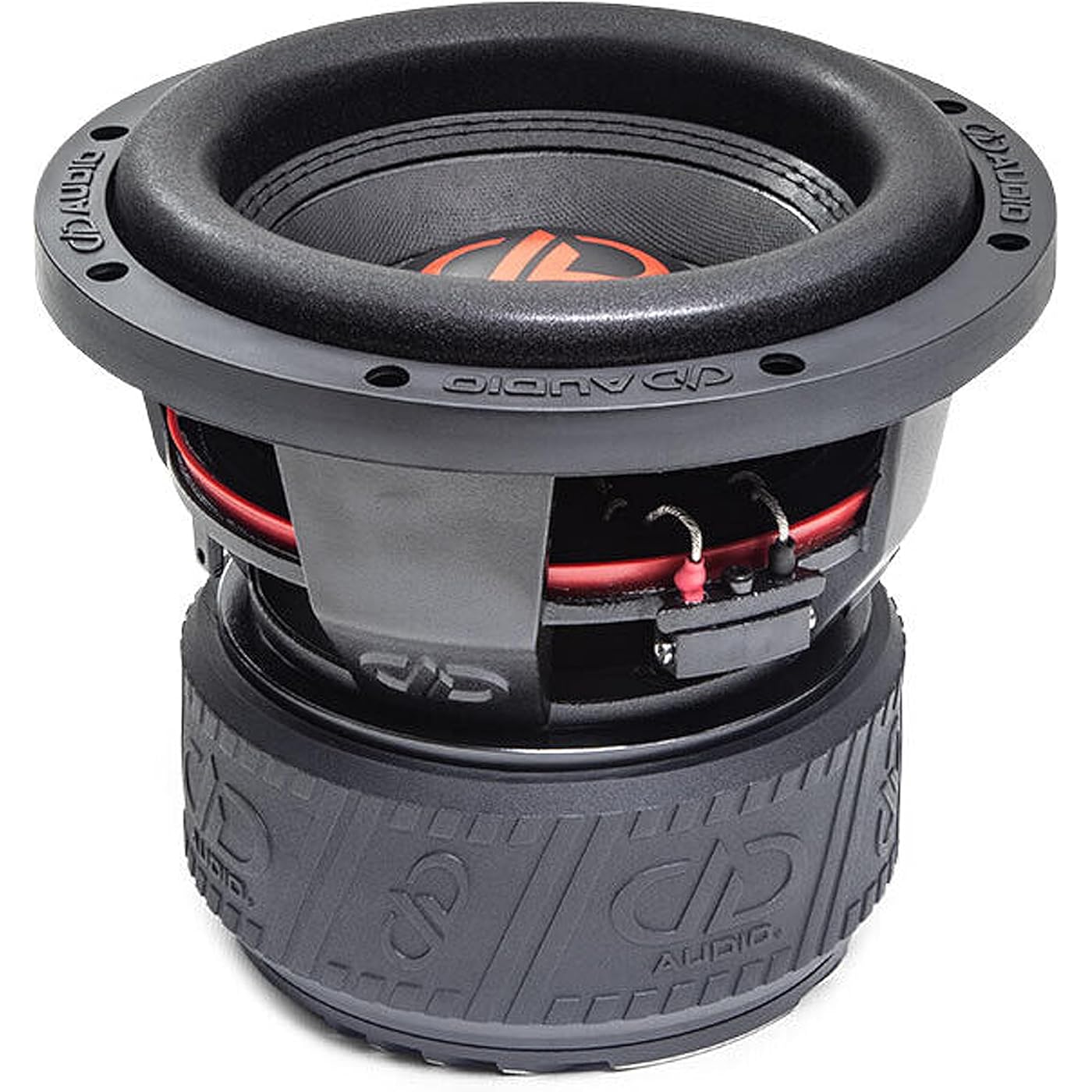

DD Audio 608F-D2 8" Dual 2-Ohm 3000W Subwoofer

Features

• The 600 Series latest revision is a mean mother f. In the previous e revision they got bigger and better; and in this latest f revision they receive precision engineered, thermal cooling enhancements of major significance along with some design work that is literally cutting edge. DD is pushing the already highly efficient 600 subwoofers to meet our evolving performance standards to ensure longer periods of loud, continuous play
• The DD design philosophy is to prioritize the maximization of total efficiency: converting raw power to clean sound, while managing the intense heat created by this conversion. Given this mandate, the new 600 f revision receives a vented aluminum voice coil insert and vented, finned, aluminum heatsink to conduct and transfer heat away from the subwoofers most vulnerable components.
• As the increased power handling will undoubtedly bring with it greater demand for excursion, a taller surround, double stitched to a fiberglass loaded, non-pressed cone, adjoined to a voice coil featuring increased winding length with DDs proven double layer spider, offers increased Xmax and elegant styling. The heat sink features beautifully carved, polished aluminum DD logos, and the motor is wrapped in a rubber boot with an all new embossed design.

Description

608F-D2 | DD Audio Digital Designs 8" Dual 2-Ohm 3000W SubwooferFEATURES: EROM surround Aluminum Heatsink and Thermal Transfer Insert High-temp, 2.5”, voice coil Triple Layer Deep bass, high excursion spider system Unique glass fiber and natural pulp cone Back plate coil gap venting Extended pole piece Cast aluminum basketSPECIFICATIONS: Speaker Size (In): 8 Watts RMS: 1000 Watts Peak: 3000 Impedance: D2 / D4 VCD (In): 2.5 Piston Diameter (In): 6.5 Fs (Hz): 38 Qms: 7.76 Qes: 0.5 Qts: 0.46 Vas: 7.4 Xmech (MM): 60 Xmax (MM): 18 Frame OD (In): 8.3 Frame OD w/Gasket (In): 8.5 Mounting Diameter (In): 7.37 Mounting Depth (In): 6.5 Motor Diameter (In): 6.5 Motor Depth (In): 3.25 Woofer Displacement (CuFt): 0.07 Sealed Enclosure (CuFt): 0.4 - 0.8 Ported Enclosure (CuFt): 0.75 - 1.25

Brand: DD Audio

Speaker Maximum Output Power: 1500 Watts

Frequency Response: 38 Hz

Connectivity Technology: Powerline

Audio Output Mode: Surround

Mounting Type: Speaker

Material: Aluminum

Model Name: 608F-D2

Speaker Type: Subwoofer

Special Feature: Bass Boost

Recommended Uses For Product: For Surround Sound Systems

Compatible Devices: Laptop, Smartphone, Tablet

Subwoofer Diameter: 8 Inches

Unit Count: 1.0 Count

Surround Sound Channel Configuration: 1.0

Color: Black

Item Weight: 21 Pounds

Impedance: 2 Ohms

Is Waterproof: FALSE

Warranty Type: Limited

Number of Items: 1

Control Method: Touch

Speaker Size: 8 Inches

Power Source: Corded Electric

Woofer Diameter: 8 Inches

Water Resistance Level: Not Water Resistant

Audio Driver Type: Dynamic Driver

Audio Driver Size: 8 Inches

Subwoofer Connectivity Technology: Wired

Number Of Circuits: 1

Number of Power Levels: 1

Specific Uses For Product: Home Theater, Surround Sound System

Style: Stylish

Manufacturer: DD Audio

Shape: rectangular prism

Item Weight: 21 pounds

Item model number: 608F-D2

Date First Available: September 1, 2023
