Universal Extra Long Wires 21 Circuit Wiring Harness Hotrod Kit Compatible with GM Chevy Universal Automotive Wiring

Features

• 17 fuses and 21 circuits; GM column connectors are included
• Find the corresponding line according to the font annotation of the insurance box
• Designed with convenient plug and play connectors (switched power, constant power, and ground connections required).
• GM installations see photos above, Comes with detailed instructions.
• Package includes wiper/radio acc, cruise/backup, heater/air, clock, dome, cig lighter, crtsy power, power door, power seat, fan power, coil, choke, instrument power, flasher, fuel pump power, brake, power window, headlight, radio battery, horn.

Description

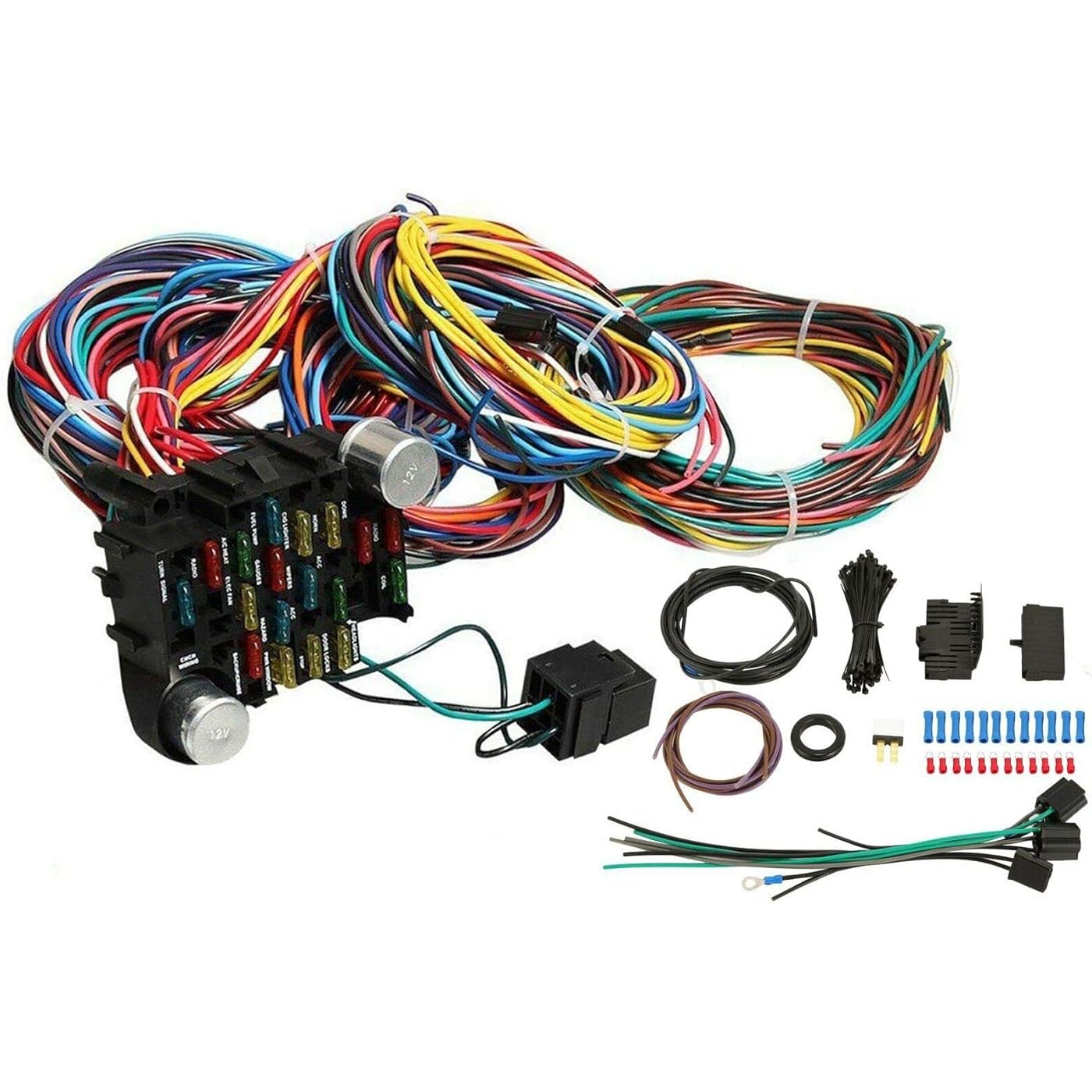

1X PRE-WIRED FUSE PANEL WITH 17 FUSES AND 1 BREAKER 2X SIGNAL FLASHERS AND 1 PRE-WIRED RELAY CONNECTOR WITH HORN RELAY 2X PRE-WIRED HEADLIGHT PLUGS; 1X PRE-WIRED LATE GM ALTERNATOR PLUG 2X PRE-WIRED GM COLUMN IGNITION SWITCH PLUGS 1X PRE-WIRED DIMMER SWITCH PLUG 2X GM TURN SIGNAL CONNECTORS FOR THE PRE-TERMINATED WIRES (3 7/8" AND 4 1/4") 1X FUSIBLE LINK (3" BLACK WIRE WITH RING TERMINAL) 1X LARGE GROMMET 30X PLUS MISCELLANEOUS INSULATED TERMINALS AND SOME SMALL CABLE TIES 2X LOOSE WIRES (NUETRAL SAFETY SWITCH WIRE AND PANEL LIGHT WIRE) READ THESE INSTRUCTIONS before starting this installation. These instructions were developed after installing this system in over a dozen different vehicles and should make this a quick and SQ-DUBNAG job. To aid you we have used BOLD PRINT to note IMPORTANT items and provided general diagrams for FORD, GM and MOPAR. There is also a DO'S and DON'TS section that you may find useful. Please remember that these are GENERAL INSTRUCTIONS for your UNIQUE and SPECIFIC vehicle and you may need to MODIFY them for your application. Also whenever using AFTER-MARKET or SPECIALITY equipment, always use the diagrams PROVIDED WITH that equipment. This WORKBOOK is designed for both our labeled and color-coded harnesses. Whenever a specific wire is referred to, it will be displayed with its LABEL then it's COLOR. You are to use the destination that applies to the kit you purchased. If a diagram shows ONLY a color OR a label then that wire is NOT PROVIDED by this kit. An example of this would be GROUND WIRES which we DO NOT provide. We do recommend the use of black for ground wires on our color-coded harness and white on our labeled black harness to eliminate possible confusion. Remember this is a WORKBOOK!!! So make use of the blank space we provide for your notes. Write things down so you won't forget. STEP #5 IF YOU NEED INSTALLATION INSTRUCTIONS, WE WILL SEND YOU TO MEET YOUR NEEDS ! ! !

Brand: VOWAGH

Material: Plastic

Connector Type: Gm Specific

Recommended Uses For Product: Automotive electrical wiring and circuit installation for hot rods, muscle cars, and street rods; designed for GM/Chevy vehicle wiring including lights, ignition, gauges, wipers, fuel pump, and other 21-circuit electrical accessories See more

EU Spare Part Availability Duration: 7 years

Brand Name: VOWAGH

Recommended Uses For Product: Automotive electrical wiring and circuit installation for hot rods, muscle cars, and street rods; designed for GM/Chevy vehicle wiring including lights, ignition, gauges, wipers, fuel pump, and other 21-circuit electrical accessories

Number of Items: 1

Manufacturer: ay-autoparts

Unit Count: 1 Count

Number of Packs: 1

Model: HX1503

Part Number: HX1503

Wire Diameter: 5 millimeters

Connector Type: Gm Specific

EU Spare Part Availability Duration: 7 years

Material Type: Plastic

Cable Type: Flat Ribbon
