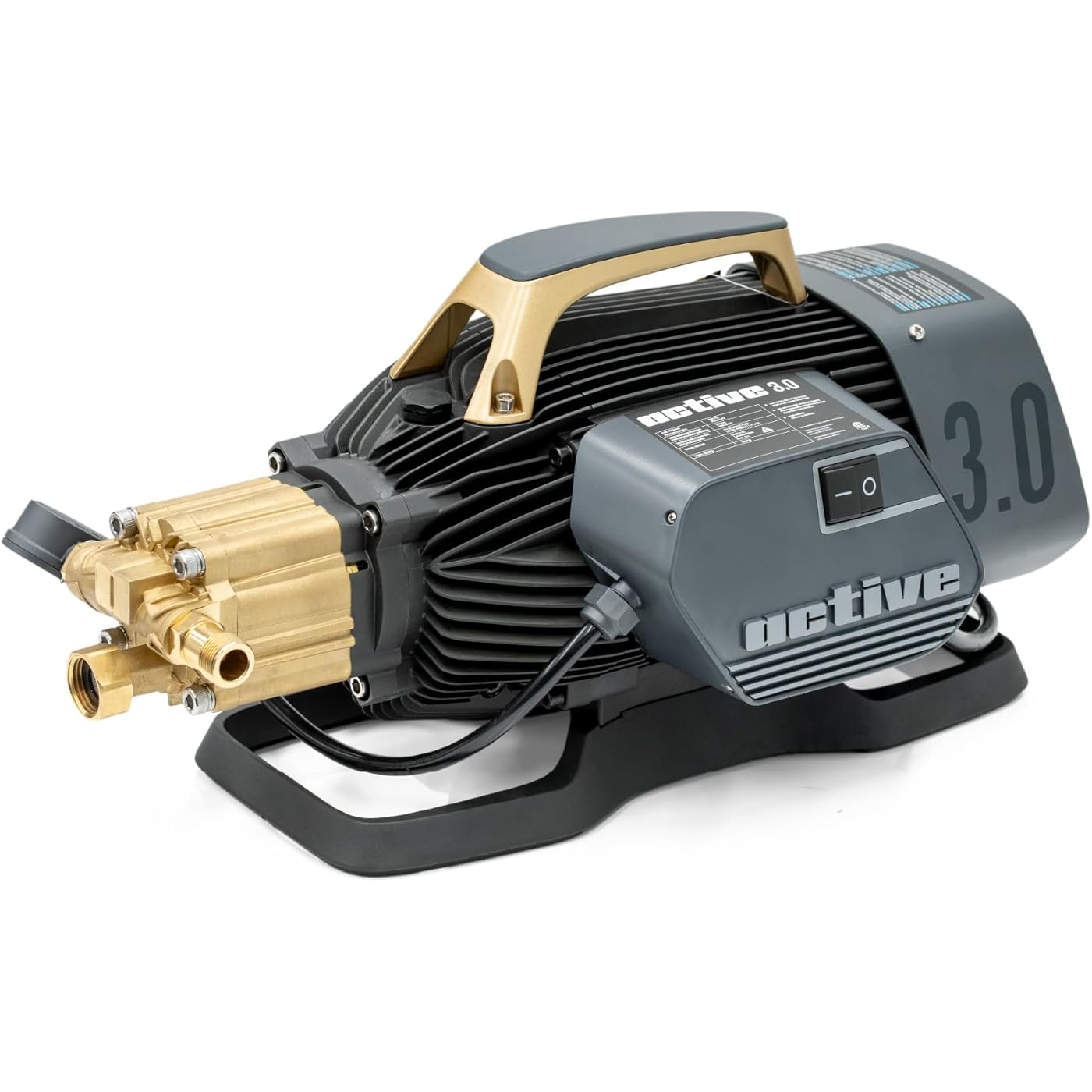

Active 3.0 GPM Professional High-Pressure Washer, 1000 PSI, 20A

Features

• PROFESSIONAL ENGINEERED FOR HIGH-VOLUME WORK: Delivers the highest 3.0 GPM at ~1000 PSI with fully forged brass pump and 20 Amp power capability for fast efficient cleaning transformations, supporting prosumer and professional detailing operations
• UPGRADE-READY CONNECTIONS: Universal threading supports garden hose 3/4" GHA and pressure side M22-14mm for broad accessory fit. This interface lets you integrate aftermarket tools, hoses, and add-ons as your system evolves
• BUILT TO LAST, REBUILDABLE BY YOU: Features a fully forged brass pump with oil drain and filter, paired with a low-speed induction motor designed with accessible parts so you can service and rebuild it yourself, not replace it
• COMMERCIAL PROSUMER OPERATION: Optimized to run on a dedicated 20A circuit with a 6.3 orifice and 1.65mm foam nozzle, keeping current draw stable while delivering the consistent performance that professional and prosumer work demands
• WARRANTY COVERAGE YOU CAN COUNT ON: Backed by a 2-year residential use warranty for confidence in regular home upkeep. This coverage supports repair or replacement pathways that help maintain washing capability over time

Description

Electric input requirements to operate the Active 3.0? The Active 3.0 is designed to run on a 20A circuit and comes with a plug required to plug to a dedicated 20A circuit rated at 120V/60Hz. We recommend using an extension cord not longer than 50’ and it must be rated for 12 AWG. Pump adapter connection specs on the Active 3.0? The pressure washer inlet size is ¾” with 11.5 TPI threads (this is the standard North American Garden Hose connector size). The outlet of the pressure washer is M22-14mm. Nozzle orifice size compatible with the Active 3.0? The Active 3.0 comes with a 6.3 orifice size. This is done to ensure the flow under 18A current draw. If you are to change the nozzles for varying applications, we recommend the use of nozzles between 6.3 to 7.0). Foam cannon orifice size compatible with the Active 3.0? We'll be providing a 1.65mm nozzle with the 3.0 so users can work with their aftermarket foam cannons while maintaining current draw below 18A. Pressure washer hose material and length compatible with the Active 3.0? The preferred hose type and length is steel braided rubber hose (5/16” or bigger) under 100 ft. in length. Non steel braided hoses may expand under pressure and prevent the pressure washer from reaching its peak pressure (continuous running). Required maintenance and oil changes? Ensure you use 85W-90 oil. The oil change needs to be done after 25 hours of use and every 100 hours or 6 months thereafter (whichever comes first). What if my pressure washer is not working as intended? The first step to follow is to read your product manual for troubleshooting. We will soon be providing videos on product maintenance, upkeep and troubleshooting so this will be an additional resource as a troubleshooting guide. What type of plug does the Active 3.0 use? The Active 3.0 uses a NEMA 5-20P type plug which requires compatible NEMA 5-20 receptacle. This looks like a standard plug with one prong at a right angle from the others

Brand: Active

Power Source: ac

Color: Black

Item Weight: 70 pounds

Product Dimensions: 16"L x 9"W x 8"H

Maximum Flow Rate: 3 gpm

Maximum Pressure: 1000 psi

UPC:

Number of Items: 1

Item Highlight: DIY Automotive Car Care. Paint-Safe, Compact, Portable. Home Use. Prosumer & Professional Detailing & Cleaning Transformation See more

Item Weight: 70 pounds

Item Dimensions L x W x H: 16"L x 9"W x 8"H

Power Source: ac

Maximum Flow Rate: 3 gpm

Maximum Pressure: 1000 psi

Color: Black

Brand Name: Active

Model Number: AP_PW

UPC: 841308106212

Manufacturer: Active Products Inc.

Manufacturer Part Number: AP_PW
