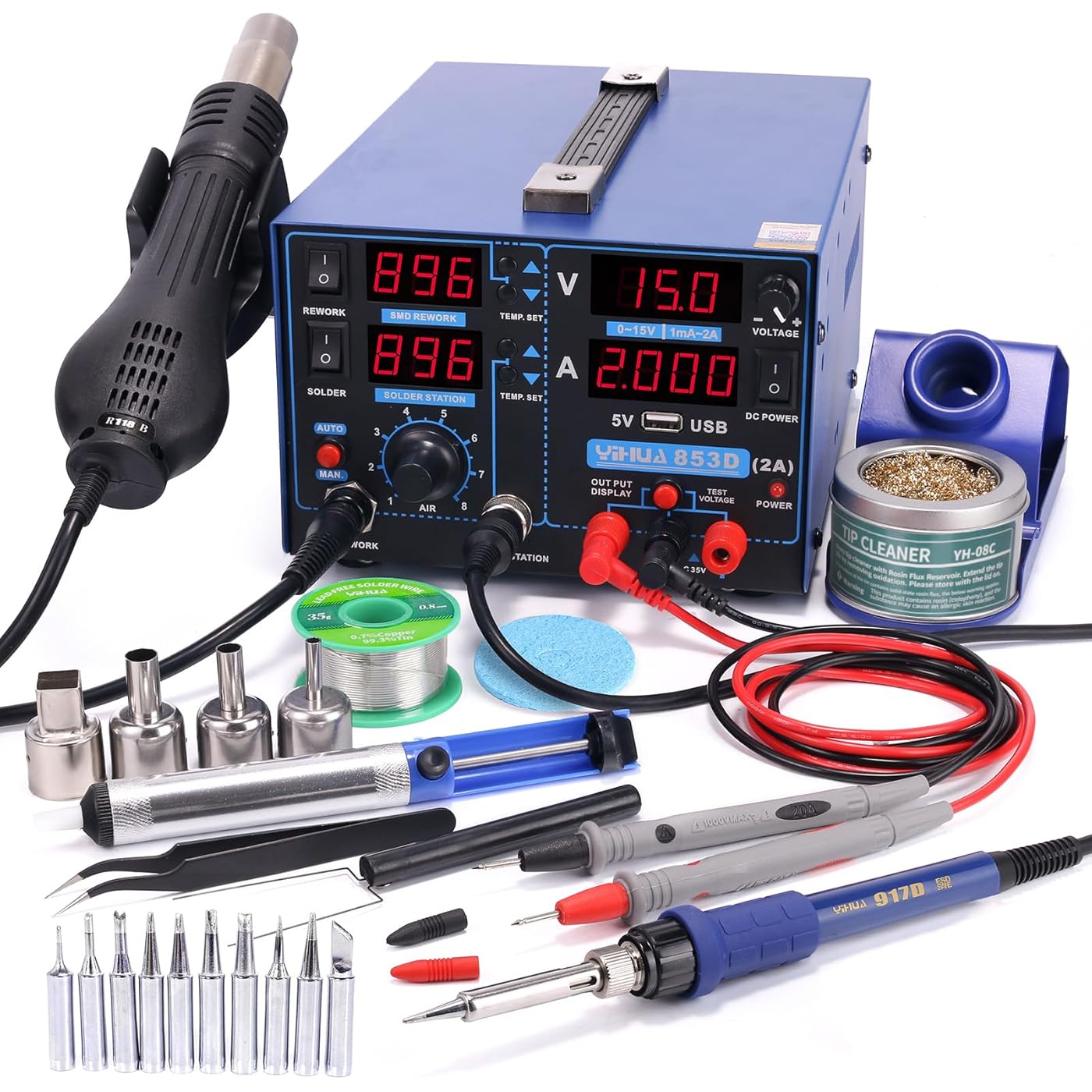

YIHUA 853D 2A USB SMD Hot Air Rework Soldering Iron Station, DC Power Supply 0-15V 0-2A with 5V USB Charging Port and 35 Volt DC Voltage Test Meter

Features

• 1 = 3 You now get three professionally integrated stations in one compact package. The 853D Series comes equipped with a soldering iron station, a hot air rework station, and an essential DC power supply with voltmeter mode a critical tool for components and repair that standard 2-in-1 stations simply don't include. All three stations operate simultaneously or independently, delivering the complete workstation required for professional electronics repair.
• Specifications You can set the soldering station from 392~896F, the hot air rework station from 212~896F with adjustable air volume (120L/Min Max.), the DC power supply from 0~2A / 0~15V in output mode or, measure 0~35V DC in test mode. We equipped the station with a 0.5A/5V USB port so you can test or work on devices while they're powered.
• Precision Both the soldering station and the hot air rework station comes with high precision PID temperature stabilization function to maintain them at the set temperature. This way, you can enjoy a more efficient and smoother soldering/rework experience.
• Extended Lifespan A series of assistive functions to help preserve your station in mint condition for longer. You'll not only save on electricity bills but also the cost to replace wearable parts. These functions include sleep mode, automatic shut-down, and more.Read and follow safety guidelines and instruction manuals that come with the product before using it.

Description

How we got our start Our first batch of production-soldering stations and hot air stations rolled off the assembly line in the year 2000. What makes our product unique We continued to innovate and evolve our solutions to provide better user experience, notable technologies first introduced by YIHUA includes Hot Air Start/Stop, Hot Air Failsafe, Skeleton-Type Heating Element, Integrated Soldering Iron Holder System, and more. We don’t just jam three tools into one box; you can use the soldering, hot air, power supply/testing stations simultaneously. With our multi-station, you no longer need multiple individual stations on your desk to complete a project. Inspired by popular industry demands, the 853D Series Multi-Station is the complete 3-in-1 work station for your projects. The 853D 2A USB multi-station empowers you to enjoy a seamless workflow. You can solder, test, and rework in a streamlined process. Packed full of professional-grade performance and functions to help get your job done. The multi-station integrates a soldering iron, a hot air gun, a voltmeter, and a power supply into a single compact package. You can conduct a complete soldering/rework procedure on your work device with just one station. Why not save a sizable amount of space and time by using this professional multi-station? Why call it a station, you ask? Unlike conventional plug-n-play soldering iron that connects directly to electricity, our station puts the electricity through a sophisticated transformer and controller IC that intelligently puts out the perfect amount of power to your soldering iron and hot air gun. We integrated these technologies to ensure your safety and allow rapid heating and lightning-fast temperature compensation. The soldering section pushes 60 watts of (maximum) power to the iron tip, providing a temperature range of 392℉～896℉. The new and improved heating element enables rapid heating and lightning-fast temperature compensation for your operation. You can even solder a broad range of components with this iron. We understand how important an excellent hot air gun means for your work. Hence, we’ve built a hot air gun with a premium quality heating element and a powerful motor. With a maximum airflow volume of 120L/min and a temperature range of 212℉～896℉, you can easily remove SOIC, CHIP, QFP, PLCC, BGA, and SMD components with this hot air gun. The DC Power supply comes with output mode and voltmeter mode. In output mode, the power supply can put out adjustable DC power 0-2.000A / 0-15.0V DC, and show the load’s power pull in real-time. In the testing mode, the voltmeter can test DC power from 0-35V DC. Solder or desolder, it wouldn’t matter if you’re trying to put a component down or you’re trying to lift one away. Our multi-station is the real “do-it-all”. If you’re looking to get three major functions at the cost of one, this will be the perfect choice to get your hobby, soldering skills, and business on track. We built the multi-station with a series of user-centric functions to help you stay safe, work efficiently, and conserve energy. These functions include PID Temperature Control Technology, Sleep Mode, ℃/℉ Temperature Display, Temperature Calibration, and more! The station holds a power reserve of 800 watts of pure electrical energy. Thanks to the new and improved internal design upgrade, each handpiece can utilize those power to their maximum potential. The hot air gun and the soldering iron can get up to operating temperature quickly. Advanced tool pack included Direct from the manufacturer By choosing YIHUA products, you reap the benefits of quality products derived from our 20-years of experience in designing and manufacturing soldering, hot air rework, DC power supply, and desoldering equipment. Compliance LEAD-FREE The soldering iron station is capable of holding a temperature setting of (896°F/ 480°C) steadily, you can work with different types of solder without any concerns. ESD SAFE We help you protect your project with our ESD Safe design. This feature prevents the build-up of satic discharges to protect your delicate circuit board components. NOTE: Testing Station The testing section consists of two key elements, which are the testing mode meters and the power supply. (These functions are integrated, use ONLY either at once) USB Port A stand-alone 5V 0.5A USB port that can power most smartphones. (do not use the USB port for devices with large capacities) Power Supply The respective receptacles can act as a power supply or show readings when switched to power supply's output mode. In testing mode, the power supply runs on constant C.C (Constant Current) mode to protect your delicate work devices. You can test devices of maximum voltage of up to 35V. (do not use the voltmeter for devices that runs on AC, or has a voltage value greater than 35V) Soldering Iron The advanced soldering iron is equipped with a gravitational motion sensor, and the internal component consists of a metal ball to detect movements. A wobbling noise may occur when the iron is picked up as a result of motion sensing. The wobbling noise is not a sign of defective product / poor build quality. All 'station' products consist of delicate electronic components and materials, damages upon delivery may be due to potential mishandling during the transportation process.

Brand: YIHUA

Item Weight: 4.76 kg

Product Dimensions: 9.96"D x 7.32"W x 4.88"H

Voltage: 110 volts

Wattage: 30 watts

Brand Name: YIHUA

Included Components: 1 x Desoldering Pump (golden), 1 x ESD-Safe Tweezers, 1 x IC Extractor, 10 x Assorted Iron Tips, 4 x Hot Air Nozzles

Number of Items: 1

Number of Packs: 1

Global Trade Identification Number: 25

Unit Count: 1 Count

Item Type Name: soldering station

Manufacturer: Guangzhou Yihua Electronic Equipment Co., Ltd.

Model Number: 853D 2A USB

Manufacturer Part Number: 853D

Voltage: 110 volts

Wattage: 30 watts

Display: LED

Temperature Stability: 1.8, 3.6 degrees_celsius

Upper Temperature Rating: 896 °F

Lower Temperature Rating: 392 °F

Number of Channels: 2

Item Weight: 4.76 kg

Item Dimensions D x W x H: 9.96"D x 7.32"W x 4.88"H
