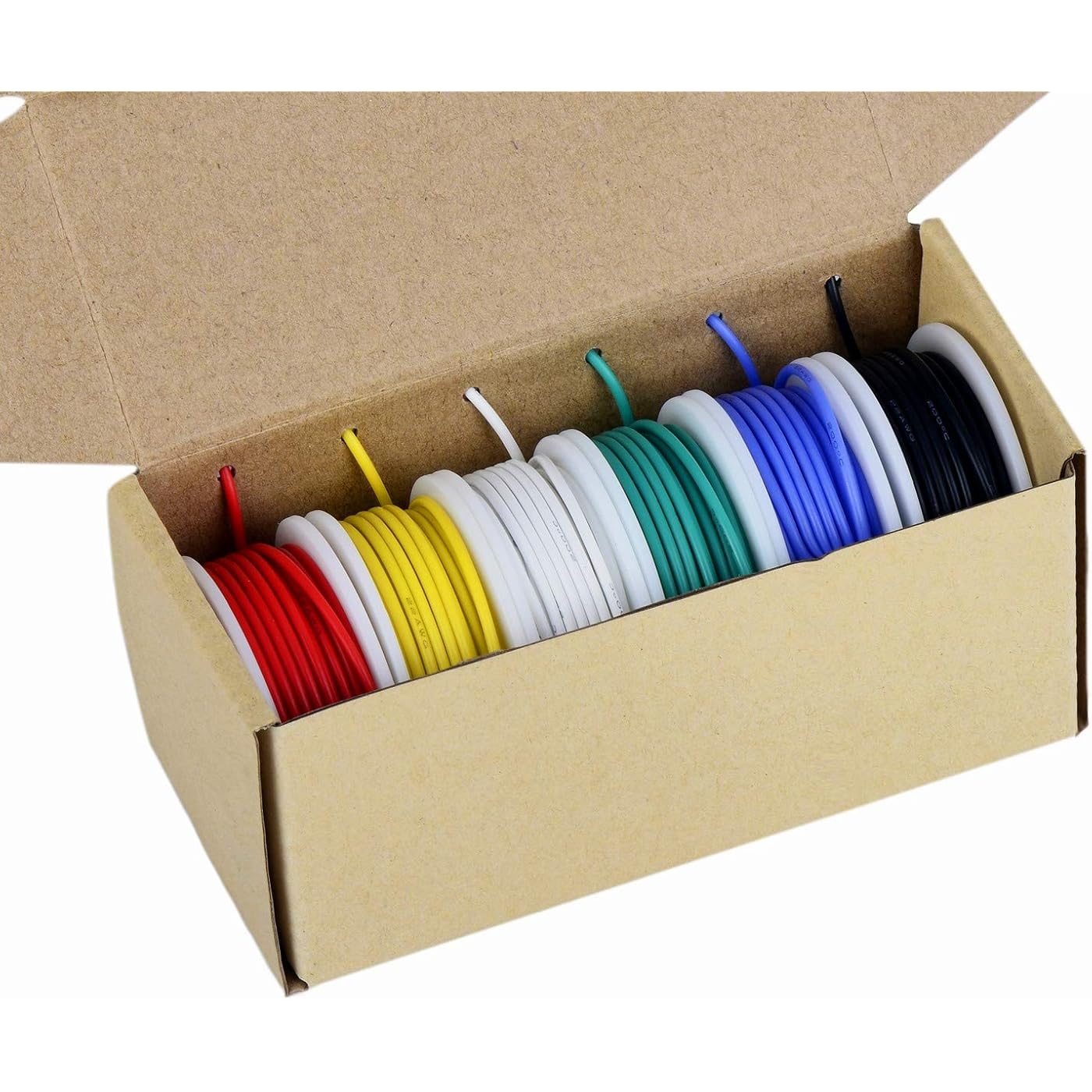

TUOFENG 20awg Wire Flexible Silicone Wire,20 Gauge Tinned Copper Wires Silicone Rubber Insulated (6 Different Colored 23ft / 7m Each)(OD: 1.75 mm) 600V Stranded Wire Hook up Wire Kit
Buy Now, Pay Later
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
This item is eligible for return within 30 days of receipt
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
At a glance
- Condition
- New
- Size
- 20awg Silicone Wire Kit
- Weight
- 14 oz
- Color
- Red, yellow, blue, green, black, white
- Material
- 铜
- Voltage
- 600 Volts, 2000 Volts
Features 5
- 20 Gauge silicone wire - super flexible 100 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection
- High Temperature Resistant Silicone Wire.Temp: -60 degree celsius +200 degree celsius ,Low temperature resistance,in extreme cold -60 degree celsius
- Conductor: High-purity oxygen-free Tinned Copper,Nominal Voltage 600V
- Due to the Silicone insulation and fine stranded core, The wire is very flexible easy to strip and solders . Well suited for applications where the wire will be flexed, like test cables. Could be terminated with pins and heat shrink sleeves for breadboard jumper wires.
- CERTIFICATION: UL (E355578), RoHS, TS/16949. COLORS AVAILABLE: Red, Yellow, White, Green, Blue, Black (23ft / 7M each color).
Description
- Ultra Flexible, Low Resistance, Strand Wire,High Performance Pure Silicone Wire - High-quality tinned copper inner core, can maintained copper wire for a long time does not oxidize .protecting them from corrosion and making it easier to solder. - Insulating silicon rubber, color: white, red, black, blue, green, yellow, - Scope: Applicable to all kinds of electrical and electronic, industrial electronics, model aircraft, Cars, ship model, batteries, motors and other links insulation. electronic ceramics,heating parts,car lighting,ballast etc. Nominal Voltage: 600V Testing Voltage:2000V Temperature Range:-60 Deg C to 200 Deg C Conductor: Tinned Copper OD Tolerance: ±0.1mm Insulator: Silicone - Number of shares : 100 - diameter: 0.003in - Wire diameter: 0.036in - Sheath outer diameter: 0.07in - Insulation Thickness: 0.022in - Conductor resistance: 9.8 ohm one thousand meters - Rated voltage: 600V - Testing Voltage:2000V - Bear Current:5A - Temperature range: -60 ~ + 200 - Outer diameter tolerance: 1.75mm Warning：If the voltage and current of the circuit in use exceeds the maximum carrying voltage and current allowed for the chosen specification, it may incur accidents like fire and electric shock.
Specs 12
| Color | Red, yellow, blue, green, black, white |
|---|---|
| Brand | TUOFENG |
| Material | 铜 |
| Number of Cable Strands | 100 |
| Gauge | 20.0 |
| Voltage | 600 Volts, 2000 Volts |
| Manufacturer | TUOFENG |
| Item Weight | 14 ounces |
| Package Dimensions | 5.55 x 2.44 x 2.36 inches |
| Size | 20awg Silicone Wire Kit |
| Batteries Included? | No |
| Batteries Required? | No |
