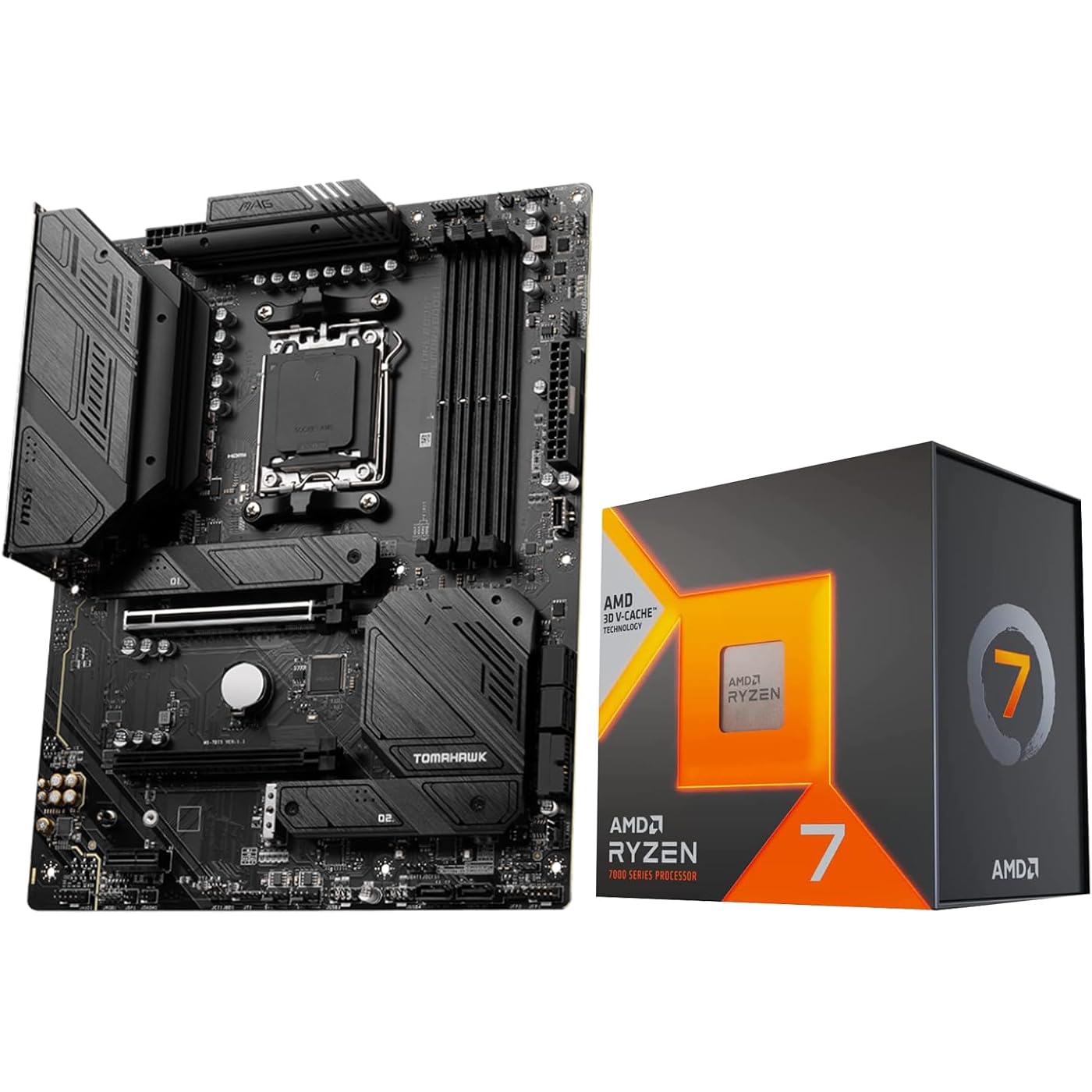

INLAND Micro Center AMD Ryzen 7 7800X3D 8-Core16-Thread Desktop Processor with MSI MAG B650 Tomahawk WiFi AM5 DDR5 Gaming Motherboard

Features

• AMD Ryzen 7 7800X3D Desktop Processor, 8 Cores, 16 Threads, 5.0 GHz Max Boost, Unlocked Memory Overclocking. L2+L3 Cache 104 MB, 120W TDP,128GB DDR5-5200 Memory Supported. For the state-of-the-art Socket AM5 platform,can support PCIe 5.0 on select 600 Series motherboards
• AMD Ryzen 7 7800X3D Processor features AMD 3D V-Cache technology delivers absolute gaming performance that exceeds the highest expectations. AMD Radeon Graphics Integrated, Cooler not included, liquid cooler recommended. Support Windows 10/ 11- 64-Bit Edition
• MSI MAG B650 Tomahawk WiFi Gaming Motherboard, ATX Form Factor, 4x DDR5, Dual Channel Maximum Memory Capacity 256GB, PCIe 4.0 Support, 3x Key M (PCIe)+1x Key E (WiFi/BT), Supports up to PCIe 4.0 x4, 6x SATA 6Gb/s ports, 3x USB 3.2 Gen 2 10Gbps Type-A ports, 1x USB 3.2 Gen 2x2 20Gbps Type-C port, Wi-Fi 6E, Supports Bluetooth 5.2, Windows 11 Supported, Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7600+(OC) MHz;/ Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works;/ 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs;/ Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1;/ AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

The MAG B650 TOMAHAWK WIFI motherboard supports AMD Ryzen 7000 processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD B650 With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B650 TOMAHAWK WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings: 1. Digital PWM IC 2. 14-Phase Duet-Rail CPU Power (80A) 3. 2-Phase SOC Power 4. 1-Phase MISC Power VRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 2 x PCI-e 4.0/3.0 x16 slots (primary with Steel Armor*) * Supports x16/x4 Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. * 1DPC 1R Max. overclocking frequency 6400 MHz, supports AMD EXPO. The MAG B650 TOMAHAWK WIFI motherboard features MSI's latest M.2 slots: 3 x Gen4 x4 64Gb/s slots Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. 2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel High Performance Audio with Audio Boost 5 & S/PDIF output.

Brand: INLAND

CPU Socket: Socket AM5

Compatible Devices: Personal Computer

RAM Memory Technology: DDR5

Compatible Processors: AMD Ryzen 9000/ 8000 / 7000 Series Desktop Processors

Chipset Type: AMD B650

Memory Clock Speed: 7600 MHz

Platform: Windows 10, Windows 11

Model Name: MSI MAG B650 Tomahawk WiFi

CPU Model: AMD Ryzen 7

Processor Socket: Socket AM5

Compatible Devices: Personal Computer

RAM Memory Technology: DDR5

Compatible Processors: AMD Ryzen 9000/ 8000 / 7000 Series Desktop Processors

Chipset Type: AMD B650

Memory Clock Speed: 7600 MHz

Platform: Windows 10, Windows 11

CPU Model: AMD Ryzen 7

Memory Storage Capacity: 256 GB

Ram Memory Maximum Size: 256 GB

Main Power Connector Type: 24-Pin

Graphics Card Interface: Integrated

Memory Slots Available: 4

Number of Ports: 11

S/PDIF Connector Type: Optical

System Bus Standard Supported: SATA 3

Total SATA Ports: 6

Total Usb Ports: 17

Number of Ethernet Ports: 1

Total Number of HDMI Ports: 1

Total PCIe Ports: 3

Chipset Family: AMD B650

Brand: INLAND

Model Name: MSI MAG B650 Tomahawk WiFi

Model Number: 7800X3DMAGB650THKWF

Manufacturer: Inland

Unit Count: 1 Count

UPC: 618996777303
