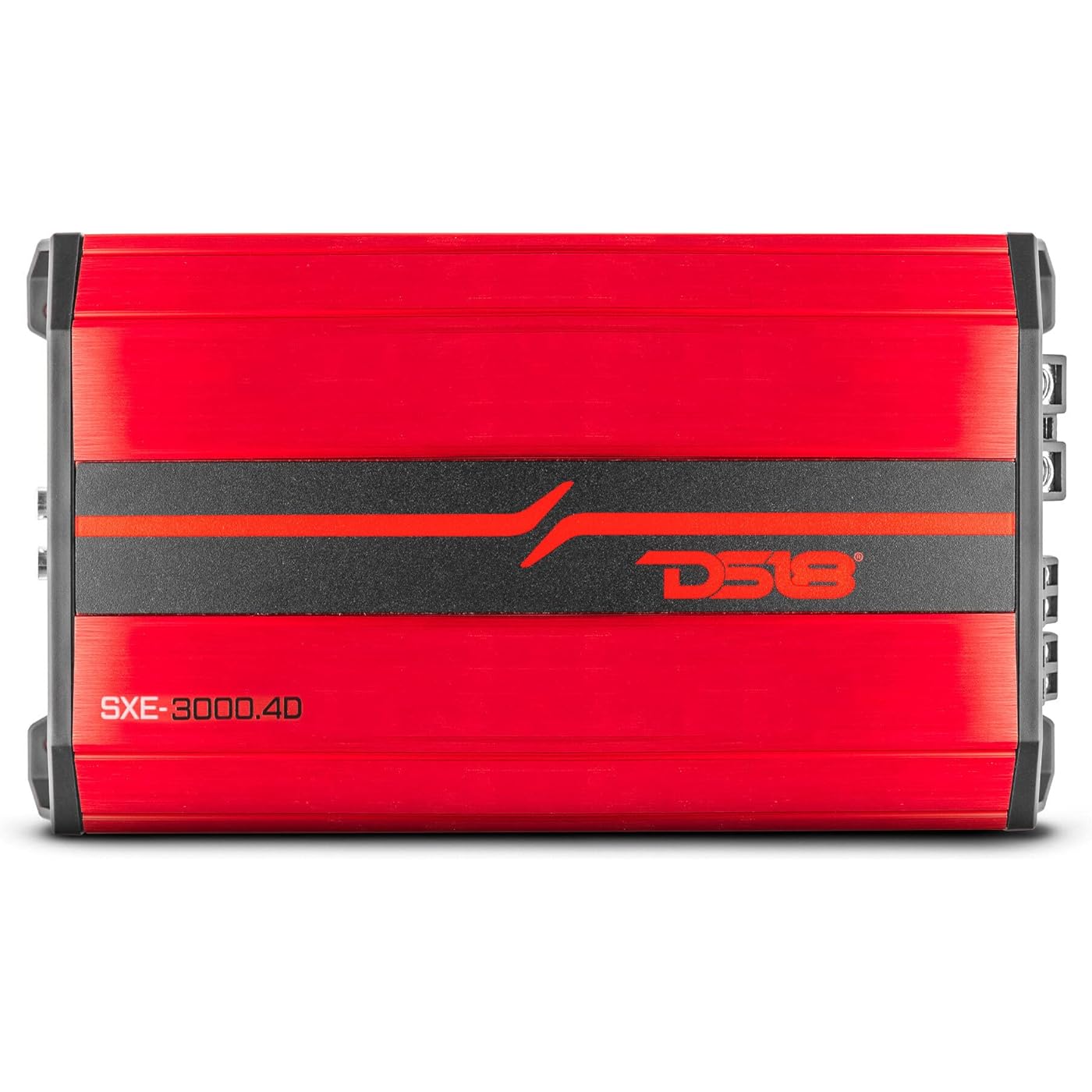

DS18 SXE-3000.4D/RD Car Amplifier Stereo Full-Range Class D 4-Channel 200x4 RMS @4 OHM 3000 Watts - Powerful and Compact Amp for Speakers in Car Audio System

Features

• HIGH PERFORMANCE - DS18s SXE series of amps was designed for users looking for an extreme increase to the quality of music reproduced by their vehicle. The SXE-3000.4D guarantees your sound systems speakers perform at their peaks on every use
• VARIABLE CROSSOVER - The SXE series of amplifier gives users the ability to tailor the audio reproduced by their vehicle to their personal listening preferences through the use of its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design: everything you need to take control of your listening experience
• PERFECT SIZE - As a Class D amplifier, the SXE series uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicles custom build: but, what it lacks in size it makes up for in power
• SUPERCHARGE - The SXE-3000.4D has a power output of 500W x 2 CH bridged at 4-ohms, 320W x 4 CH at 2-ohms, 200W x 4 CH at 4-ohms: perfect power settings to supercharge any custom build
• NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market

Description

POWER - Total Watts (Peak) 3000W - RMS Power @ 4 ohms 4 x 200W - RMS Power @ 2 ohms 4 x 320W - RMS Power @ 4 ohms Bridge 2 x 500W AUDIO - Frequency Response 10Hz-20KHz - Signal to Noise Ratio 90dB - Efficiency @ 4 ohms 88% - Damping Factor 140 - Input Impedance 20kΩ - Channel Separation 45dB - Total Harmonic Distortion (THD) 0.05% - Low-Level Input Range 200mV-5V - Selectable X-Over HPF/FULL/LPF - X-Over Filter Range 40Hz-2KHz FEATURES - Amplifier Class Digital (D) - Amplifier Type Stereo Full Range - Number of Channels 4 - Minimum Impedance 2 Ohms Stereo / 4 Ohms Bridge - Led Indicator Power/Protect/Clip - Power Input Terminal Size 4Ga - Fuse Size 2 x 40A (80A) - Thermal Protection Yes (80℃) - Over-Load Protection Yes - DC Output Protection Yes - Short Circuit Output Protection Yes - Voltage Input Protection Yes (16.5v) - Clipping Protection Yes - Body Color / Finish Red / Black Brushed Aluminum MEASUREMENT - Overall Length 9.8" / 249.3mm - Overall Wide 5.5" / 140mm - Overall Height 1.8" / 48mm - Heatsink Length 8.34" / 212mm - Gross Single Unit Weight 1.86Kg GREAT FOR · Car Audio · Pro Audio · Stunt Walls · Motorcycle Audio · Powersports Audio · DIY Projects Here at DS18, we develop products for people like us: audio enthusiasts. Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store

Item dimensions L x W x H: 10 x 12 x 9 inches

Voltage: 12 Volts

Manufacturer: DS18

Maximum Supply Voltage: 16.5 Volts (DC)

Mounting Type: Surface Mount

Voltage: 12 Volts

Maximum Supply Voltage: 16.5 Volts (DC)

Mounting Type: Surface Mount

Number of Channels: 4

Operating Temperature: 80 Degrees Celsius

Output Power: 500 Watts

Item Dimensions: 10 x 12 x 9 inches

Material Type: Aluminum

Specification Met: Implied to Meet Industry Standards

Manufacturer: DS18

Model: SXE-3000.4D/RD

Brand Name: DS18

Global Trade Identification Number: 42

UPC: 810097261242

Part Number: SXE-3000.4D/RD

Item Weight: 4.1 Pounds

Unit Count: 1.0 Count
