Tarp Motor for Dump Truck 1.5hp 50:1, Universal 12V 600W Electric Tarp System Motor
Buy Now, Pay Later
- – 6-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
At a glance
- Condition
- New
- Style
- 50:1
- Model
- 501 Tarp Motor
- Weight
- 10 lb
- Speed
- 100 rpm
- Voltage
- 12 volts
- Horsepower
- 1.5 hp
- In the box
- Reflective chrome housing and mounting hardware
- Warranty
- 1 Year Manufacturer's Warranty
Features 5
- 50:1 Gear Ratio, 1.5 HP, 12V Direct Current, 40 Amps, Reversible Action, 40 NM Operating Torque. One of the FASTEST, Strongest Electric Tarp Motors Available.
- UNIVERSAL FIT for Dump Bodies up to 28 feet. Dump Truck Tarp Motor has a 3/4 inch output shaft and a 5-bolt mounting pattern works with most Electric Tarp Systems.
- Output shaft is 3/4 inches thick and 3-3/4 inches long with a 5/16" hole drilled at 1 inch and at 2 inches for best fit.

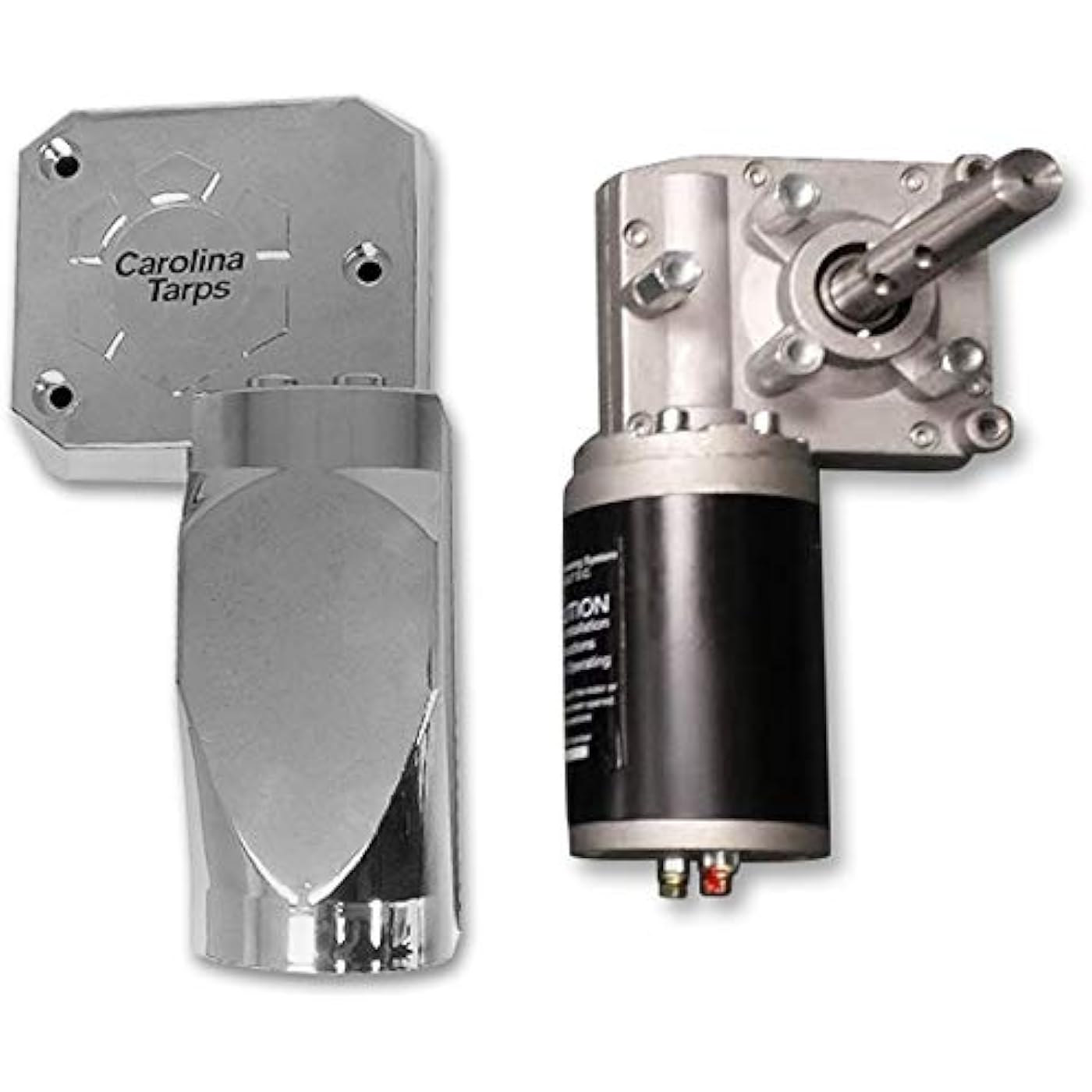

- INCLUDES reflective chrome housing, all necessary mounting hardware, and 1-Year warranty
- 1-YEAR WARRANTY: This electric tarp motor will deliver years of speed, strength, and reliability under normal use. Due to electric motor efficiency and electric power available from your vehicle's battery or alternator, these units are rated for intermittent use. Use for short periods of time only, allowing it to cool between uses. If your motor becomes too hot to touch, stop operation and allow it to cool. Recommended wire is 6 or 8 gauge.
Description
Dump Truck Tarp Motor Electric tarp motors typically have a 3/4" shaft and can be bolted onto a mounting bracket or onto the side of your cab shield. This 50:1 replacement tarp motor has a universal 5 bolt pattern, allowing you to drop it in as a replacement for any tarp system up to 28', as long as the tarp spool takes a 3/4" shaft. This tarp motor can be easily switched out and will have your electric tarp system back up and running in no time, due to the wide compatibility. Designed for tarp systems on dump bodies up to 28 feet long. Electric Tarp Motor Specifications: Type: Direct Drive Gear ratio: 50:1 Power: 600W Output Shaft: 3/4" x 3-3/4", with two 5/16" through-holes Voltage: 12V Max torque: 40 NM or 29.5 lb-ft Current Draw @ rated torque: 40 Amps RPM: 90-100 Gear: Worm to Wheel Mounting: Three 5/16"-18 bolts Braking: Inherent Dimensions: L:12", W:6.5", H:4" Compatibility: Replaces Roll-Rite Tarp Motor 10310, Donovan Tarp Motor 61G & 61X, Mountain Tarp Motor K0170S, Aero Tarp Motor 0755-623457, US Tarp Motor 13655 INCLUDES: Plastic Chrome Cover, (3) M8 x 16mm Socket Head Cap Screws, (5) M8 x 16mm Hex Head Screws 1-YEAR WARRANTY. Mounting the Tarp Motor for Dump Truck: The tarp motor has five M8 mounting holes on the output shaft side of the gearbox. All five mounting holes should be used when mounting the direct drive motor unit to the bulkhead (drilling new holes or welding the gearbox or other parts of the unit will void the motor's warranty). Opening, separating, or otherwise tampering with motor and gearbox will void warranty. Coupling The gearbox has a 3/4" diameter output shaft with two 5/16" diameter through-holes. To minimize stress on your motor and gearbox, avoid the use of oscillating loads and attach tubes as straight as possible to the output shaft. Electrical Installation Complete a thorough check and installation of all wiring while all cables are unattached. Where necessary, securely fasten all wiring to adjacent structure using cable ties or conduit. Recommended gauge of wire: 6 AWG
Specs 15
| Brand | Carolina Tarps |
|---|---|
| Model Name | 501 Tarp Motor |
| Speed | 100 rpm |
| Voltage | 12 volts |
| Horsepower | 1.5 hp |
| Brand Name | Carolina Tarps |
| Model | 9445 |
| Number of Items | 1 |
| Manufacturer | Carolina Tarps |
| Unit Count | 1 Count |
| Part Number | 9445 |
| Amperage | 40 |
| Wattage | 600 watts |
| Item Dimensions W x H | 6.5"W x 12"H |
| Item Weight | 10 pounds |
