Features
Description

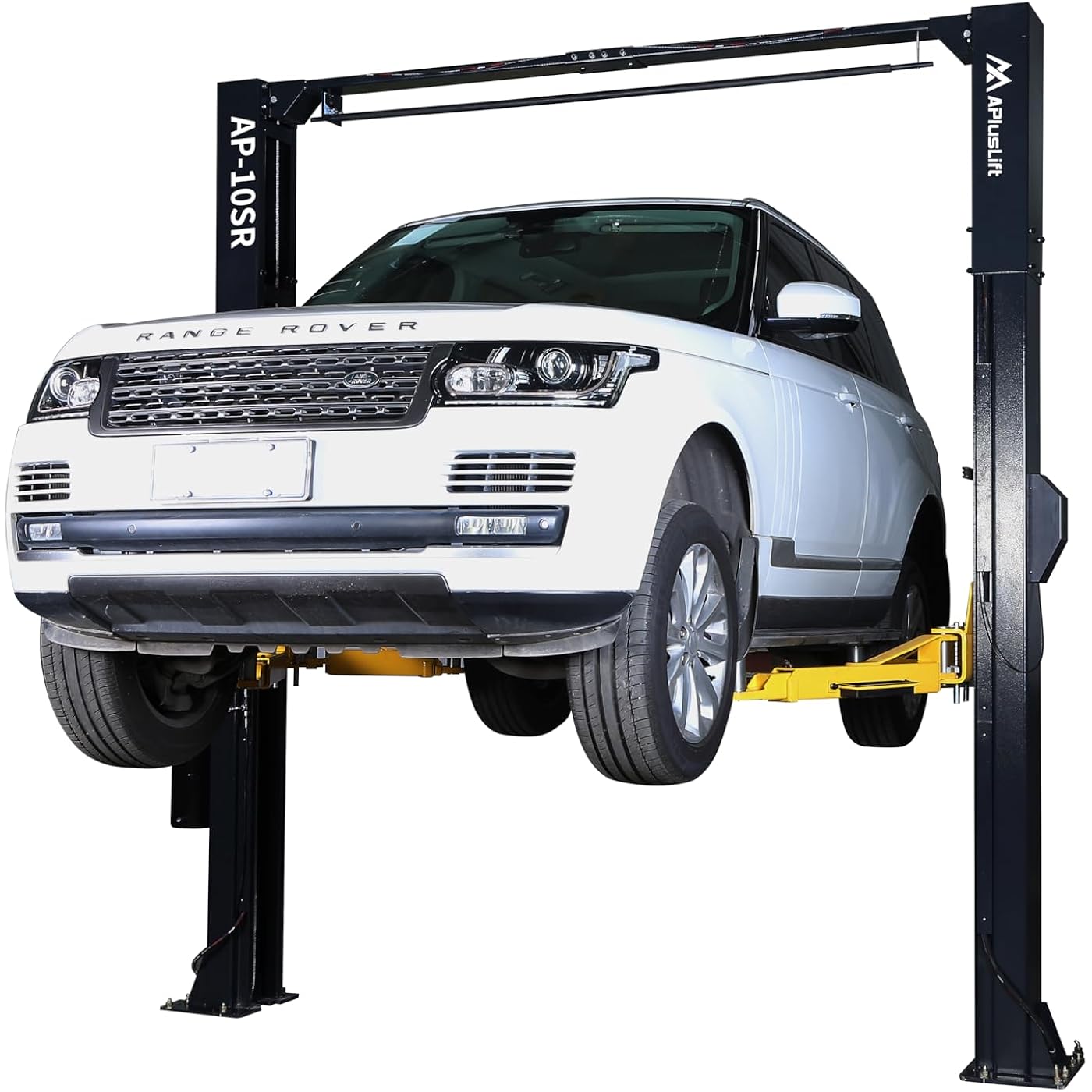

APlusLift AP-10SR car lift is an upgrade from the bestselling HW-10KOH-A model with an addition of single point lock release.SpecificationsOverall Height: 143 3/16"Overall Width: 134 5/16"Lifting height without Truck Adapters: 75"Lifting height with Truck Adapters: 81"Minimum Height of Adjustable Pads: 4"Drive Through Width (Carriage to Carriage): 100"Column to Column Width: 109"Column Cross Section: 11"L x 7"WDriving Mode: Dual hydraulic cylinders, chain driveMotor: 220V Single Phase 3HP (need a 30A breaker)Hydraulic Oil: 3-5 gallons AW32/AW46Time to full rise: 50 secCombo (Symmetrical and Asymmetrical) Arm AssemblyFront/Rear 3 Stage reach from 22 7/8" to 42 5/8"Rear 2 Stage reach from 33 5/8" to 52 7/8"Adjustable Screw Pads 4 pieces includedTruck adapters 4 pieces includedConcrete Requirement: 6" at 3500psi (4" for vehicles 9000LB and below)Anchor bolts, tool trays, and toe guards includedColumn Steel Thickness: 13/64"Carriage Steel Thickness: 15/64"Arm Steel Thickness: 15/64"Carriage Yoke Thickness: 5/16"Base Plate Steel Thickness: 5/8"FeaturesCE Certified Lift Structure and Hydraulic SystemSingle point safety lock releaseCarriage Material Q355 (ASTM A572), Stronger Than Normal Q235 SteelRelief valve built in power pump to prevent overloadingAutomatic arm lock restraintsRelief valve built in power pump to prevent overloadingDoor guards protection rubberUp- limit switch to protect cylinders working stroke used in safe length scopeHeavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable lifeStiffened base plate 5/8" thickness
Brand: APlusLift
Auto Part Position: Front
Material: Alloy Steel
Included Components: Installation Hardware
Maximum Lifting Height: 81 Inches
Manufacturer: Songa Enterprises
Brand: APlusLift
Model: AP-10SR
Item Weight: 1600 pounds
Product Dimensions: 134 x 22 x 144 inches
Country of Origin: China
Item model number: AP-10SR
Exterior: Painted
Manufacturer Part Number: AP-10SR
OEM Part Number: AP-10SR
Position: Front
Date First Available: May 4, 2022
