Alphasonik V1200.5 Venum Series 2400 Watts Max 5-Channel Car Amp with Power Plant Chip 4-Way Protection Circuitry Multi-Channel Bridgeable Class A/B Amp with Remote Bass Boost Control Knob Include

Features

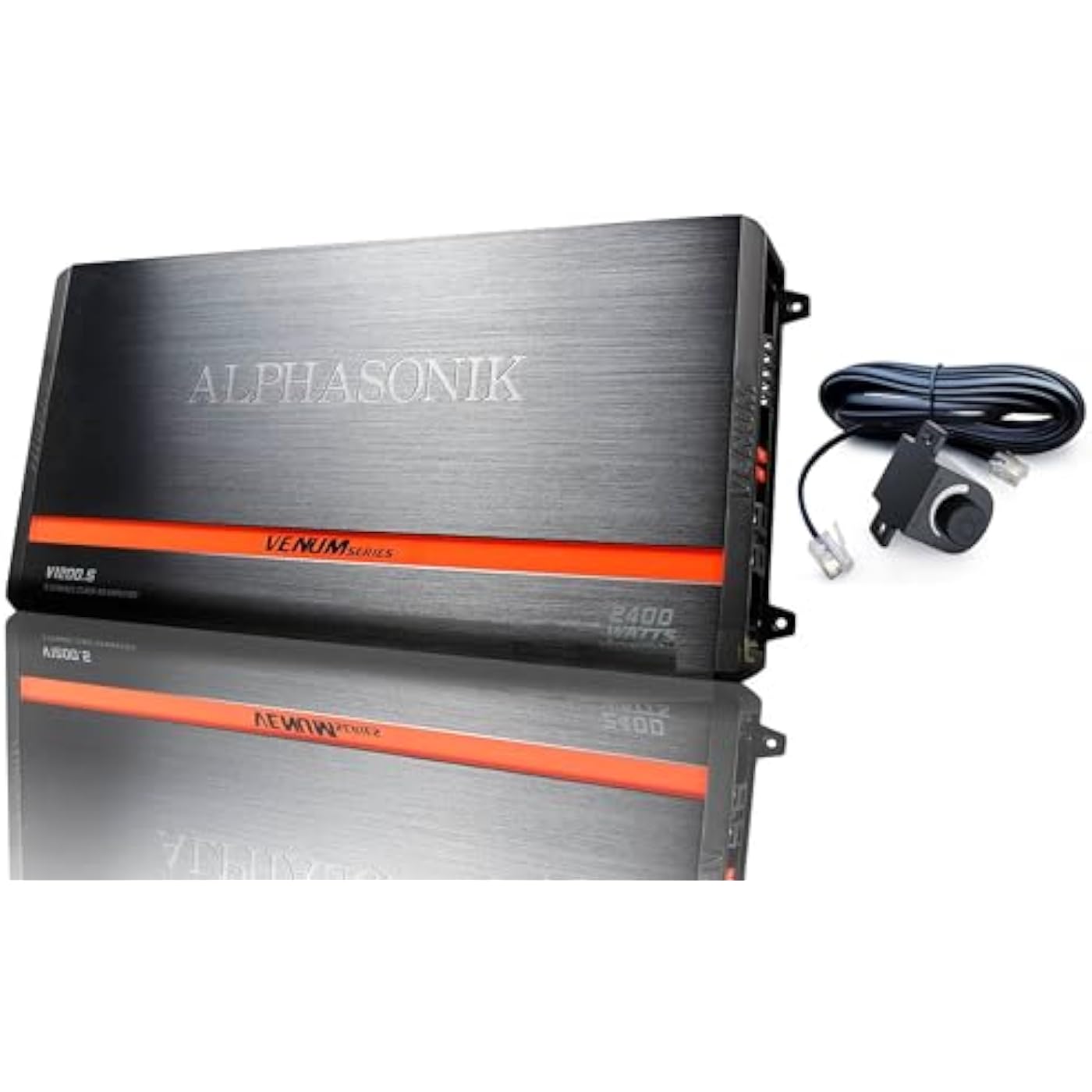

• This listing contains: (1) V1200.5 2400 Watt 5 Channel Class A/B Amplifier (1) Remote Bass Knob with Connector cable
• 4 x 75W + 1 x 300W @ 4 Ohms 4 x 150W + 1 x 600W @ 2 Ohms 2 x 300W + 1 x 300W @ 4 Ohm N/A + 1 x 600 @ 2 Ohm
• Features: Nickel Plated Terminals Low Level Inputs Remote Bass Knob Included Mil Spec Double-Sided Glass Epoxy FR Circuit Board 4-Way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset Variable Low-Pass Crossover: 50Hz - 250Hz Variable Input Sensitivity: 200mV - 6V Phase Control: 0 - 180 Degree 45Hz Bass Boost: 0 - 12dB S/N Ratio: > 85dB THD: 0.08%
• Product Dimensions: 9.2" x 2.3" x 18.3" (233 x 59 x 465mm)

Description

The VENUM Series of Amplifiers from Alphasonik combines technology, power and value for great sound and huge power. Featuring an extruded aluminum heat sink to dissipate heat from critical components, Mil spec double-sided glass epoxy FR4 circuit board, Ultra-Fi PWN MOSFET power supply, 4-way protection circuitry and RCA outputs to daisy chain multiple amps, the VENUM Series amplifiers deliver a complete audio listening experience. EQUIPPED A double-sided PCB has been utilized in our 5-Channel amplifier to optimize the voltage currents and minimizing the footprint of the circuitry. By doing this we can reduce the introduction of alternator noise and to maximize the features and accommodate ALPHASONIK'S POWER PLANT (APP) to increase wattage output. But we did not stop there! We also incorporated FR4 glass-reinforced epoxy resin that is flame resistant. EQUIPPED Keeping the amplifier cool increases efficiency to an amplifier. To keep an amplifier cool is a combination of several things, but the most important two are power output and heatsink size. A heatsink size is not the only way to cool down an amplifier. Having increased the area of the heatsink increases the cooling dramatically. So, we extruded the heatsink so we can get the most advantageous area to aid the cooling efficiency. EQUIPPED The VENUM Series amplifiers is equipped with nickel plated terminal blocks. Since most cable is stranded, it is necessary to use terminal blocks to hold the strands together in fastening the connections. This type of terminal block maximizes the connection to deliver the voltage and current draw needed. INCLUDED External bass controller that will allow you to adjust the bass level remotely without having to retune the amplifier. This is a perfect solution to increase and decrease the bass when you have a wide variety of music genres. Giving you the ability to adjust the bass song by song. Celebrating over 46 years in the 12 volt industry, Alphasonik is the original developer of ground-breaking technologies like high voltage signal transfer and amplifier fan cooling. The spirit of Alphasonik is to bring high-quality, performance based products with exceptional design.

Item dimensions L x W x H: 9.17 x 18.3 x 2.32 inches

Voltage: 12 volts

Manufacturer: Alphasonik

Maximum Supply Voltage: 12 volts

Mounting Type: Surface Mount

Voltage: 12 volts

Maximum Supply Voltage: 12 volts

Mounting Type: Surface Mount

Number of Channels: 5

Operating Temperature: 85 °C

Package Type Name: box

Item Dimensions: 9.17 x 18.3 x 2.32 inches

Material Type: Aluminum, Nickel

Specification Met: 4-way Protection Circuitry

Manufacturer: Alphasonik

Model: V1200.5

Brand Name: Alphasonik

Number of Items: 1

Unit Count: 1 Count

UPC: 659355980828 850009208101

Part Number: APH-V1200.5
