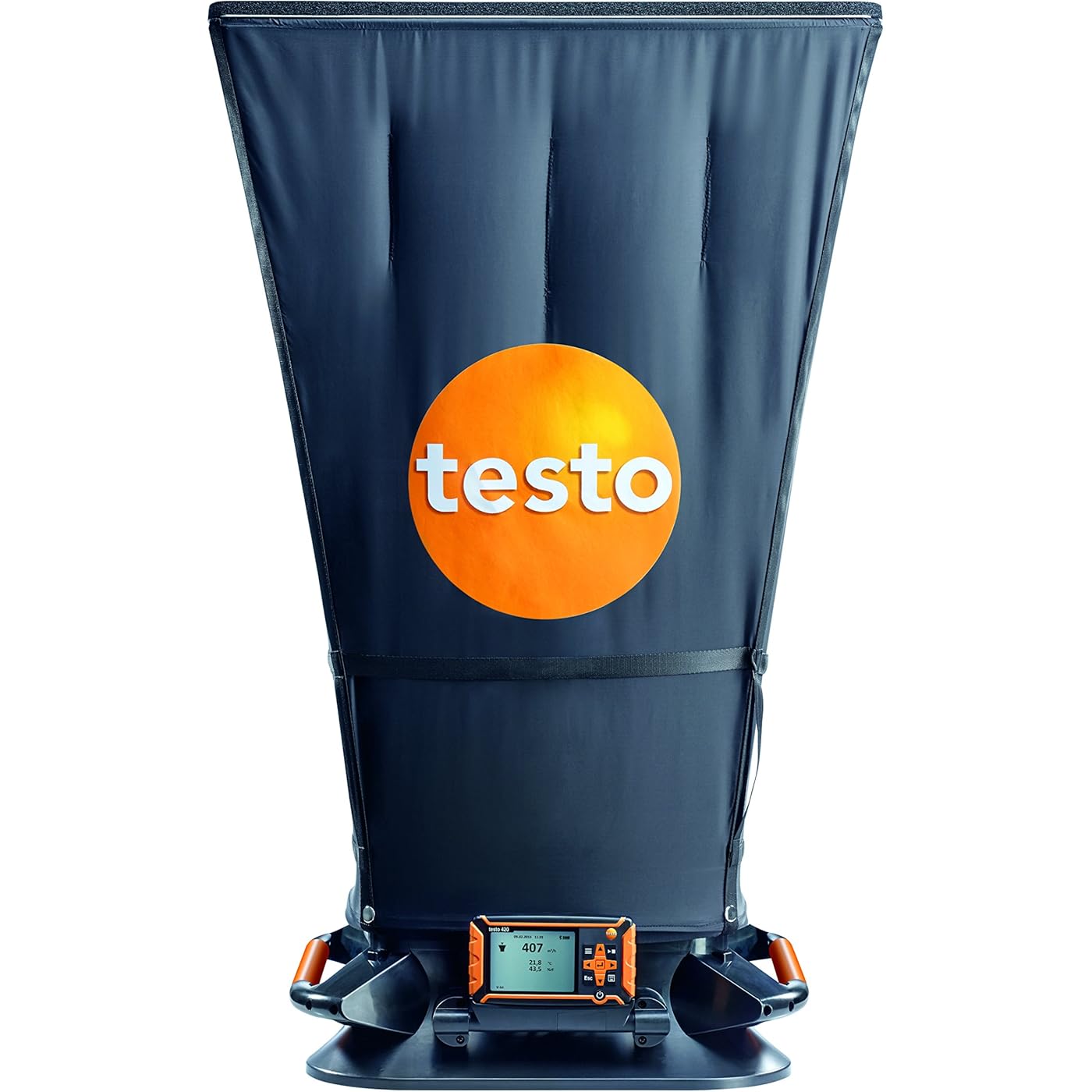

Testo 420 Flow Hood – Airflow Meter HVAC for Air Velocity, Volume Flow, Temperature & Relative Humidity – CFM Meter for Airflow HVAC with Tiltable Display, Bluetooth, and App Compatibility - With NIST

Features

• Lightweight & Ergonomic; Weighing less than 6.4 lbs, the air flow meter offers comfortable handling with an ergonomic design and tiltable display, perfect for prolonged use in large spaces or above head height
• Precision Measurements; The testo 420 flow hood features a unique volume flow straightener to ensure accurate measurements even at turbulent swirl outlets. It is ideal for precise HVAC system testing and balancing
• Advanced Connectivity; Equipped with Bluetooth, the HVAC Airflow Meter CFM connects to your smartphone or tablet, allowing for remote monitoring, control, and report generation through the Testo 420 app
• Versatile Use; The detachable control unit doubles as a standalone device for pressure, flow, & volume measurements in ducts by adding optional pitot tubes and hoses. The CFM meter for airflow HVAC provides comprehensive data collection capabilities
• Convenient Reporting; Create and email measurement reports directly from the job site via the Testo Smart App, enhancing workflow efficiency and saving valuable time during HVAC inspections and maintenance
• Standardized; Take advantage of three calibrated temperature points with the included NIST standards testing certificate. The calibration ensures all regulatory requirements for the air flow meter are met

Description

The testo 420 Airflow Capture Hood - Rapid measurements of airflow in large rooms and swirl outlets Volume flow is frequently measured at swirl outlets, and airflow measurements are often incorrectly measured due to the turbulent air from these outlets. The testo 420 volume flow capture hood with its removable control unit offers a convenient solution for measurements of flow velocity, volume flow, absolute pressure, temperature and relative humidity in large rooms and swirl outlets. Automatic zeroing ensures a higher accuracy for low pressure. Technical Data Testo 420: TEMP measuring range: -4° to 158 °F / -20 to +70 °C Accuracy: +-1 °F (32° to 158 °F) / +-0.5 °C (0 to +70 °C) / +-1.4 °F (-4° to 32 °F) / +-0.8 °C (-20 to +0 °C) Humidity measuring range: 0 to 100 %r H Accuracy: +-1.8 %rH + 3 % of mv at +77 °F / +-1.8 %RH + 3 % of mv at +25 °(5 to 80 %rH) Differential Pressure measuring range: -0.480 to 0.480 InH2O / -120 to +120 Pa Accuracy: +-2 % of mv + 0.002 InH2O at +72 °F, 405 InH2O / +-2 % of mv + 0.5 Pa at +22 °C, 1013 hPa Absolute pressure measuring range: 280 to 440 InH2O / 700 to 1100 hPa Accuracy: +-1 InH2O / +-3 hPa Volume flow measuring range: 24 to 2354 CFM / 40 to 4000 m3/h Accuracy: +-3 % of mv + 7 CFM at +72 °F / +-3 % of mv + 12 m3/h at +22 °C; 405 InH2O (50 to 2060 CFM) / 1013 hPa (85 to 3500 m3/h) Dimensions: 24 x 24 in. (Standard hood) / 610 x 610 mm (Standard hood) Weight: 102 oz. / 2900 gBattery life: 40 hoursDelivery Scope testo 420:1 x testo 420 airflow capture hood control unit including USB cable and batteries, 1 x Flow straightener, 1 x Soft-shell protective case and 1x NIST

Brand: Testo

Material: Plastic

Item dimensions L x W x H: 31.5 x 26.77 x 12.2 inches

Item Weight: 13.56 kg

Number of Items: 1

Brand Name: Testo

Number of Items: 1

Unit Count: 1 Count

Part Number: 420 KIT

UPC: 858777007018

Global Trade Identification Number: 18

Manufacturer: Testo

Included Components: testo 420, cable, 1 x Flow straightener, case, certificate for NIST standard

Model: 400563 4200

Material Type: Plastic

Item Dimensions: 31.5 x 26.77 x 12.2 inches

Item Weight: 13.56 kg
