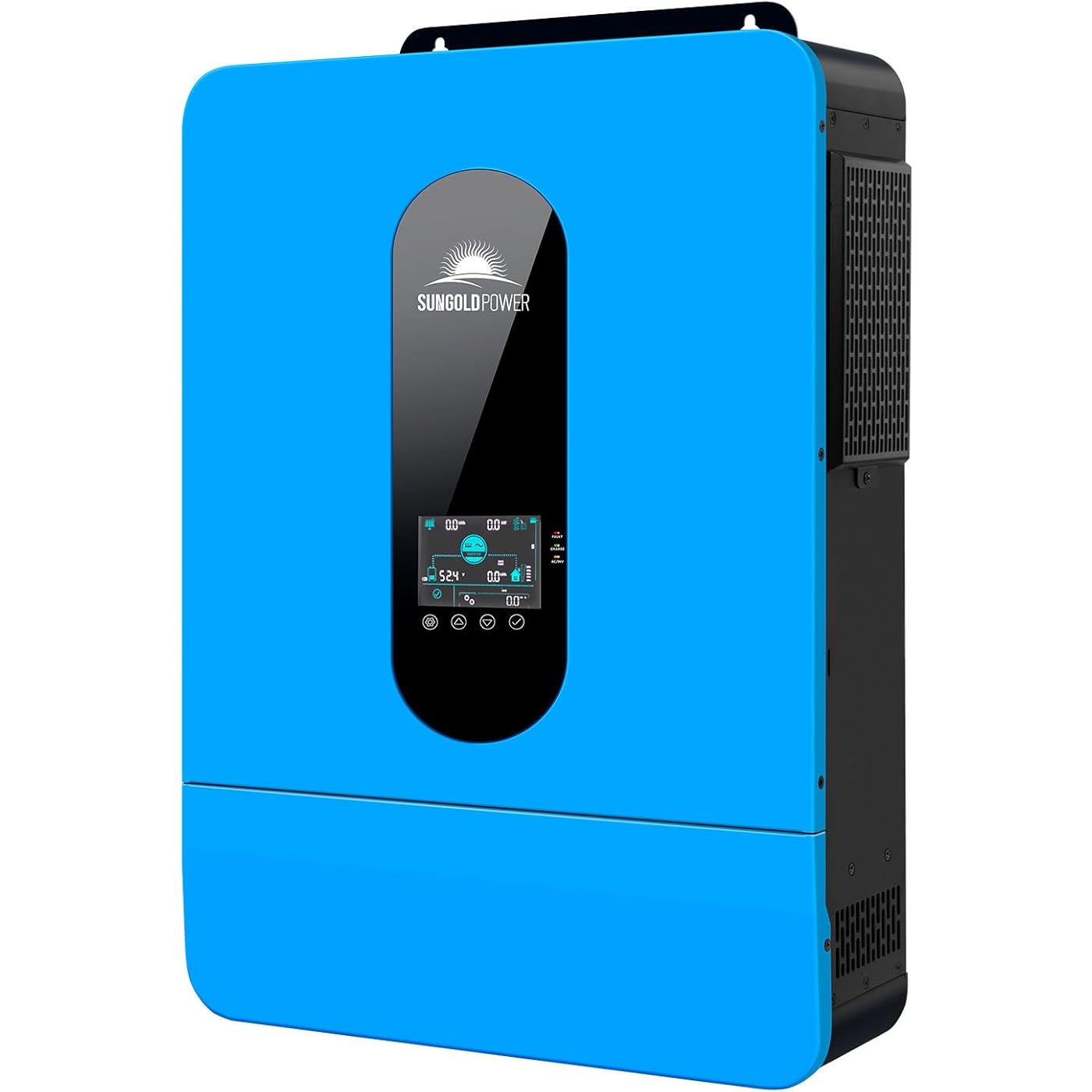

SUNGOLDPOWER 6500W 48V Solar Inverter, Split Phase,Built-in 2 MPPTs, Max 140A Battery Charging, AC Input/Output 120V/240V(settable),Pure Sine Wave Inverter(Parallel/WiFi/BMS COMM) UL1741
Condition: New
Buy Now, Pay Later
As low as
/ mo
Learn more
- – Up to 36-month term if approved
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
FREE refund/replacement until Jan 31, 2026
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
In Stock.
Arrives
Tuesday, Jan 6
Recently Viewed
Size: 6500W DC 48V
Features
- Functional solar charge inverter: UL1741 6.5KW DC 48 volt Pure Sine Wave Solar Inverter Combined with Max. 140A battery charging, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit : 550VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP.Parallel up to 6 units.Notice:It can not feed electricity back to the grid.
- Stable AC output and Smart Protection:Rated Output Power:6500W, Max Peak Power:13,000VA, loaded motor capacity 4HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on.
- Two charging /Four Output modes: Hybrid Charging /Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.
- Time-slot charging/discharging function:The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.
- Battery type: 6500W DC 48V inverter is compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. And supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.
Brand: SGPWATT
Recommended Uses For Product: Farm, Home, Office, Vehicle
Power Source: Solar and Battery Powered
Wattage: 6500 watts
Model Name: 6500W 48V Split Phase Solar Inverter
Product Dimensions: 22.8 x 16.5 x 5.1 inches
Item Weight: 39.7 pounds
Item model number: SPH6548P
Date First Available: October 17, 2023
Manufacturer: SGPWATT
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Tuesday, Jan 6
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- PayTomorrow Financing
- Financing through Apple Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Size: 10KW 48V UPDATED
Setup was complicated, but, I finally figured it out. Have it set for 120 volt split phase. Now, I can run all my heavy wood working tools. 120 volt or 240 volt. Batteries are slow to charge, but, that is expected with so many batteries attached to the inverter. Need to invest in higher wattage solar panels. Each inverter capable of 500 volts per charge controller at 100 amps each. Being that there are 2 MPPT in each inverter that means they are capable of quite the wattage.
...
show more
Reviewed in the United States on November 1, 2025 by Amazon Customer Amazon Customer
Size: 10KW 48V UPDATED
Not your normal review but I'm satisfied,,,, I bought one and did the solar hookup,,, it was not reading the proper wattage attached. The good news ,,,,the company took it back and gave me a replacement that worked perfectly. Sometime things just happen , but don't be afraid to purchase from this company. This job was for a doomsdayer rich guy as a just in case with batteries and all, in an emp what if scenario, faraday cage and all ,, the company was stand up and stood behind their product,,, No complaints and the customer is happy as can be
...
show more
Reviewed in the United States on October 12, 2025 by K9
Size: 10KW 48V UPDATED
### Product Review: SunGoldPower SPH10048P All-in-One Solar Charge Inverter The SunGoldPower SPH10048P all-in-one solar charge inverter was deployed to manage a hybrid power system for my workshop, paired with an Eco-Worthy EW-SRB48100-BV2.0 48V 100Ah LiFePO4 battery. Note that for 120V single-phase grid power, a jumper must be installed between L1 and L2; otherwise, the unit powers up but does not function correctly nor provide an error code indicating this issue. Initial operation revealed a charging current limited to 1A DC, significantly below the configured 25A maximum (Setting 28) and the system’s 100A total capacity (Setting 7). This technical evaluation details the diagnostic process, resolution, and performance assessment based on operational data, user manual (v3.0, 41 pages), and correspondence with SunGoldPower support, with the 25A setting reflecting my lab setup’s capacity after initial difficulties. #### System Configuration and Initial Performance The inverter was configured per the manual (pages 23–28) with key parameters recorded on September 18, 2025, : Setting 1 = Uti (utility-first mode), Setting 6 = SNU (solar + utility charging), Setting 4 = 49.2V (likely a 230V typo, adjusted to 120V for US grid), Setting 7 = 100A (max charge current), Setting 9 = 58.4V (absorption voltage), Setting 11 = 58.4V (float voltage, exceeding LiFePO4 norms), Setting 28 = 25A (max utility charge), Setting 33 = pyl (Pylontech BMS protocol), and Setting 68 = 0 (single-phase with neutral). The battery, initially at 51.1V (~20–30% SOC), exhibited balanced cell voltages (3.19V ±0.007V) and normal temperatures (34.4–35.6°C), per BT_BMS app data. Initial charging showed a 1A rate, suggesting a BMS or algorithm restriction. A breaker trip occurred during a BMS bypass (Setting 32 = SLA, Setting 8 = USER, RS485 disconnected) with the default max charge current, but this was later identified as a lab setup error, providing a useful observation of excessive current draw rather than a fault in the battery or inverter. #### Troubleshooting and Resolution Diagnostic efforts included adjusting Setting 01=SUB and Setting 06=SNU per support’s recommendation, which had no effect with the initial Uti and SNU settings. The manual (page 23) notes BMS communication via RS485 (Setting 32 = 485) overrides user settings, suggesting a limitation. Support (Penny, @sungoldpower.com) requested scrolling screen videos and settings images, hypothesizing BMS control. No Alarm 58 (BMS communication failure) was observed. Adjusting the max charge current to 25A (Setting 28) after the “BMS bypass” was enabled resulted in a successful 100% charge to 58.4V, indicating the default setting caused the observed 1A current draw. However, a “discharge and recharge” test with 485 communication (BMS enabled, Setting 32 = 485, Setting 33 = pyl) reverted to 1A draw. Today, September 19, 2025, I changed Setting 01 from Uti to SUB (mains power prioritizes load before charging). This restored the 25A charge rate, with the battery at 52.79V (DC voltage) and reached 100% charge. A planned “discharge and recharge” test (simulating a power outage)constituted of, running a load (heat gun 1200w) and after turning the load off, I connected lab power to the inverter and turned the AC breaker on. The inverter sensed the AC and went into charge mode at 25A DC to the battery. (A Pass) #### Performance Assessment The SPH10048P demonstrates robust performance with a 48V 10kW capacity, supporting grid-tied and off-grid operation (manual page 5). The LCD provide real-time data (e.g., 0.8A/0.3A currents pre-adjustment), and the system handled lab loads effectively. The BMS dependency introduces a potential limit; the manual lacks clear communication troubleshooting guidance. Firmware updates via USB-B (page 34) are recommended but not detailed. Support was responsive with requests for media and suggestions. #### Conclusion Rated 4/5, the SPH10048P is a capable hybrid inverter for technical users navigating BMS challenges. The 25A charge was achieved by adjusting Setting 28, with Setting 01=SUB today resolving the 1A issue post-discharge, aligning with a 50A lab setup recommendation (manual page 14). Recommendations include clarifying BMS troubleshooting in the manual, optimizing Setting 11 to 54V, and enhancing firmware. The recent discharge/recharge test and subsequent 25A charge mode confirm stability with Setting 01=SUB. Contact SunGoldPower( [email protected] ) with logs if needed. As of September 19, 2025, the system is operational at 25A DC charging.
...
show more
Reviewed in the United States on September 20, 2025 by Jimmy P.
Size: 6500W DC 48V
Es inversor es de los mejores q e tenido ; con un sistema de protección q lo destaca ; y muestra la información completa en la pantalla del sistema fotovoltaico
Reviewed in the United States on November 13, 2025 by Yadian González Santana
Size: 10000W DC 48V
I ordered the unit one day and got it the next. My old inverter started acting up and I needed something fast to power the house. I got it mounted on the wall the next day and connected batteries and solar power but the display had problems and I couldn't select the setup parameters. This morning I called SunGoldpower and talked with their after sales support. Within 2 hours they had me try a simple fix and the unit now works. I was able to setup the parameters and even powered some power hungry things in my shop. Tomorrow it gets wired into the entire house. Great customer service and support people. As far as I can tell this product saved me money over other brands and has had good reviews.
...
show more
Reviewed in the United States on September 16, 2025 by Old1937
Size: 8000W DC 48V
Why did you pick this product vs others?: Simple... price... features... and reputation. I did a lot of digging, and the Sungold 8k Hybrid Inverter checked all the boxes... high power output... solid build quality... hybrid functionality... and the ability to work with solar, batteries, and the grid. A lot of other brands felt overpriced or overcomplicated. Plus, I saw enough real-world reviews and videos showing this thing in action to feel confident it wasn’t just spec-sheet fluff. And now that I’ve installed it... I can say it was the right call. Rock solid performance without needing to babysit it every day. I recently purchased and installed the Sungold 8k Hybrid Inverter... and to say I’m impressed would be an understatement. This thing is built like a tank and performs even better than I expected. Once it's set up and configured, it’s completely hands-off... just the way I like it. It quietly does its job and hasn't missed a beat. It even charges my EV6 without breaking a sweat... which honestly shocked me. I figured I’d be tripping breakers or babysitting amps, but nope... smooth sailing. Sungold, you sly overachiever. The only minor hiccup was the manual... let’s just say it reads more like a riddle in spots. Some settings only work properly when paired with another specific setting... and that connection isn’t clearly explained. But I emailed support, and they got back to me fast... helped straighten out a few things... and now the system is running exactly how I want it. Already planning to buy more from Sungold... solid gear... great support... and a setup that just works. Highly recommend.
...
show more
Reviewed in the United States on July 15, 2025 by Amazon Customer
Size: 10000W DC 48V
Este inversor lo compré para unos paneles solares para mis familiares en Cuba. La verdad es que es un excelente producto en estos momentos ellos disfrutan de este generador de corriente. Estoy muy satisfecha con él lo volvería a comprar sin duda.
Reviewed in the United States on October 27, 2025 by Maidelys Rodriguez
