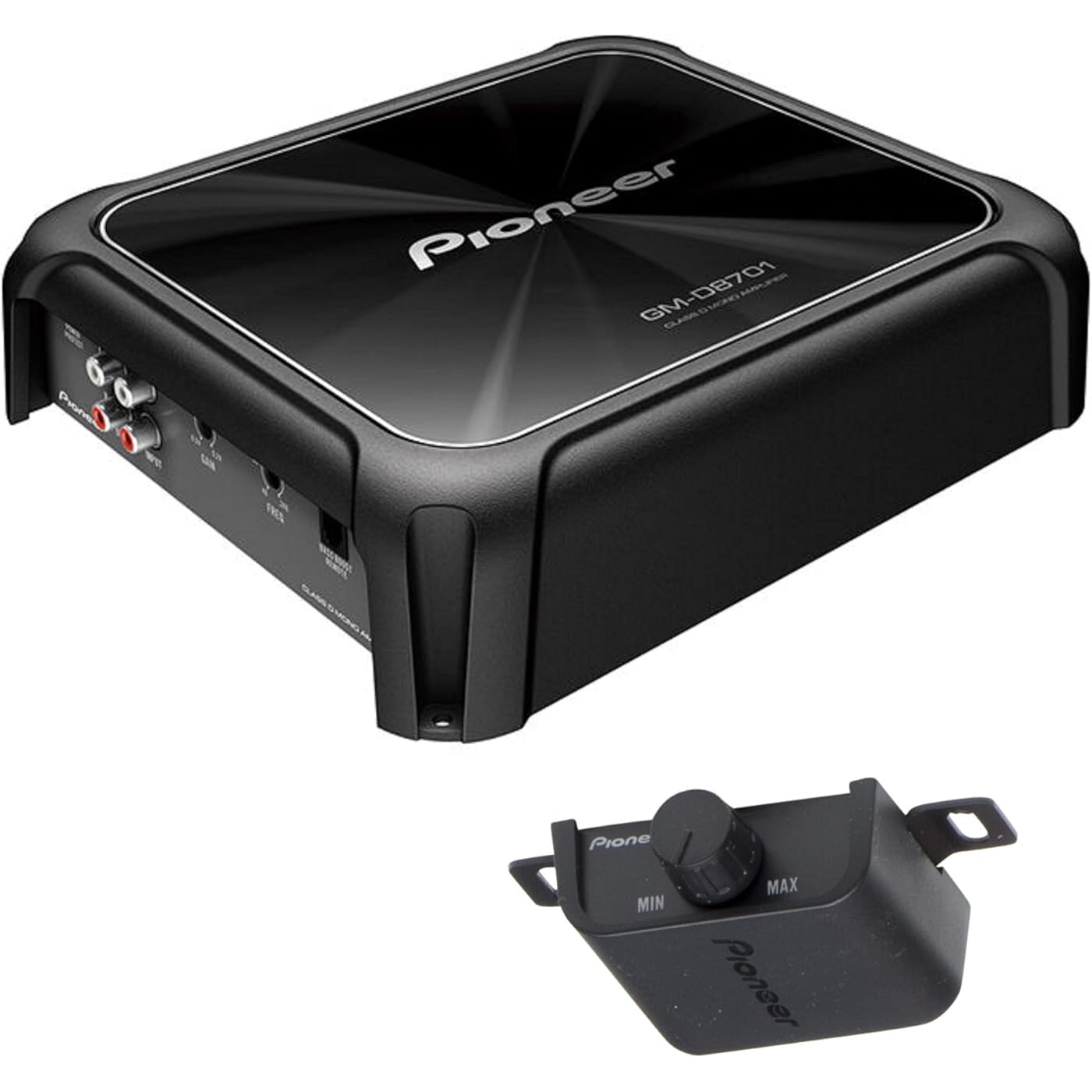

Pioneer GM-D8701 1600W Max 1-Channel GM Digital Champion Series Class-D Monoblock Car Audio Stereo Amplifier w/Wired Bass Boost Remote and Free Alphasonik Erabuds

    • Based on 315 reviews
Condition: New
Checking for product changes
$159.95 Why this price?

Buy Now, Pay Later

As low as $26.66 / mo
  • – 6-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: 20 left in stock
Fulfilled by Amazon
Arrives Wednesday, May 8
Order within 15 hours and 4 minutes
Available payment plans shown during checkout

Features

  • Rms power Rating: 4 ohms: 300 watts x 1 Channel./ 2 ohms: 500 watts x 1 Channel./ 1 Ohm: 800 Watts x 1 Channel
  • Pulse width modulated MOSFET power supply wired remote bass level control Included
  • Preamp RCA outputs to daisy chain multiple amps 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation nickel-plated RCA level inputs nickel-plated screw terminals
  • Variable low-pass filter (40-240 Hz, 12 dB/octave)/ cea-2006 compliant amplifier/ frequency response: 10-240 Hz

Description

Gm digital Series monoblock class D car amplifier RMS power rating: 4 ohms: 300 watts x 1 chan. 2 ohms: 500 watts x 1 chan. 1 ohm: 800 Watts x 1 chan. Max power output: 1500 Watts x 1 chan. Pulse width modulated MOSFET power supply wired remote bass level control included LED power (Green) and protect (red) indicators variable bass boost (0 to +18 dB bass boost at 50 Hz) preamp RCA outputs to daisy chain multiple amps 3-way protection circuitry (thermal, overload, and speaker short protection) Dual speaker terminals simplify the hookup of multiple speakers high-density split-dome convection heat-sink for extreme heat dissipation Nickel-plated RCA level inputs Nickel-plated screw terminals Input sensitivity: low level: 200mv-6.5V High level: 0.8V-16v variable low-pass filter (40-240 Hz, 12 dB/octave) CEA-2006 compliant amplifier Frequency response: 10-240 Hz


Item Dimensions LxWxH: 12 x 9 x 4 inches


Voltage: 12 Volts


Manufacturer: Pioneer Electronics USA Inc


Brand: PIONEER


Number of Channels: 1


Is Discontinued By Manufacturer ‏ : ‎ Yes


Product Dimensions ‏ : ‎ 12 x 9 x 4 inches; 5 Pounds


Item model number ‏ : ‎ GM-D8701+ALPHA


Department ‏ : ‎ Pioneer


Date First Available ‏ : ‎ November 15, 2013


Manufacturer ‏ : ‎ Pioneer Electronics USA Inc


Customer Reviews: 4.5 4.5 out of 5 stars 315 ratings


Item Dimensions LxWxH: ‎12 x 9 x 4 inches


Voltage: ‎12 Volts


Manufacturer: ‎Pioneer Electronics USA Inc


Brand: ‎PIONEER


Number of Channels: ‎1


Package Type: ‎Pioneer Bridgeable Amplifier


Item Weight: ‎5 pounds


Product Dimensions: ‎12 x 9 x 4 inches


Item model number: ‎GM-D8701+ALPHA


Is Discontinued By Manufacturer: ‎Yes


Wireless Remote: ‎No


Warranty: ‎B00GN5K650


Expansion: ‎Bluetooth Built-in


Weight: ‎12 Pounds


Date First Available: November 15, 2013


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Wednesday, May 8

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Klarna Pay in 4
  • PayTomorrow Financing
  • Apple Pay Later
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Does what it's supposed to do!
Works as advertised.
Reviewed in the United States on August 16, 2023 by Daryl Hockaday
    • Amazing for the price
I couldn't believe what kind of sound I got out of a 150 dollar amp here. I just went w/ infiinty reference speakers which match up pretty well from a power standpoint to this amp. I ended up just going directly out of my head unit so i know it would sound better had I replaced that as well but still . I'm amazed with how much bass I got and how clear the sound actually is. This is super nice and I would give it 5 stars but it just keeps going into protect mode when I turn the bass up really high using the bass boost. If I don't use the boost, I can't get it to cut out so I'm not sure exactly what the problem is. ... show more
Reviewed in the United States on May 8, 2023 by Ryan Dubbs
    • Very nice amp
Only reason for 4 stars is to the seller....Not that I wanted the crappy wired earbuds but they were not in the package. Don't advertise something your not gonna give. Now for the amplifier. Best amp I've ever owned. Solid clean power sent to my woofers. Can't beat the quality and power for 150 bucks. I'm using 4 guage OFC and no lights dimming on my car when bass hits. I'm using the 2 ohm output as I'm running two 4 ohm Audiopipe 8" triple stack subs parallel. The sound is excellent! ... show more
Reviewed in the United States on May 24, 2023 by BeeJay
    • Pioneer GM-D8701 1600W Max 1-Channel GM Digital Champion Series Class-D Monoblock
It is a Pioneer and pounds hard. I have a 1 Farad capacitor helping it out. I would buy it again. A very formidable amplifier.
Reviewed in the United States on July 17, 2023 by ConanOfRottingham
    • Very good output
For the price and sound you won’t find better. Worth every penny.
Reviewed in the United States on June 27, 2023 by Tyson Scott
    • Great product
Solid add on to any sub.
Reviewed in the United States on June 29, 2023 by Jose Perez
    • A steal for beginners or true audiophiles
I paired this with a DS18 12" select entry level subwoofer. I also built a custom console box for the sub and the amplifier for my single cab Chevy 1500 truck. This amplifier is an amazing deal for the money and delivers clean solid power to this sub. I used a true 4 gauge wiring kit and am only running it at a 4 ohm load. Amp runs cool even when its dropping sustained low notes down to 37 hz. No overheating and no clipping. I would be afraid to run this amp at the underated 500 watt 2ohm load in fear that the sub would shake my truck apart. But this review is for the amp. As long as you match the rms rating of your speaker to this amplifier you will not be dissapointed. This amp performs way better than i expected and exceeds its printed rms ratings. Also keep in mind that if your subwoofer is rated at 250-300 watts rms this amp will push it flawlessly without risk of damage to the woofer when the gain is properly set. You can easily power 2 subs with this amplifier as long as your rms rating for the sub and or amp do not exceed or fall short of their rms ratings. For $130 you will not find a more versatile, powerfull, or clean sound from an amp of this class. Update: 2/24/20 I did upgrade my subwoofer to get the 500watts @2ohms from this amp. This amp truely is a powerhouse with a very small footprint. New sub is an American bass xd1244. This combination is way more than i could have asked for and again this amp perfoms flawlessly and stays cool even under the 2ohm load. Hasnt clipped or shut down even after running after literal hours of constant low tone and hard hitting bass. Final update 3/2/20 After a month of using this amp with my american bass sub, it is an absolute beast. I cannot stress enough how good and flawless this amp has performed. After my subwoofers breakin period i have found myself turning the sub down because of how hard and low it hits. Maybe im just gettin old but regardless, this amp sub combo is the perfect hard and low hitting sound that ive been looking for. Will add a video shortly. ... show more
Reviewed in the United States on January 29, 2020 by Aaron Wunder
    • No complaints
got this for my sub after my old amp started shorting out. simple install, sounds great and no cut outs.
Reviewed in the United States on May 24, 2023 by Jeff Beier
