Milling Indexing 4"/ 100 Rotary Table Precision Horizontal Vertical With Suitable M6 Clamp Kit & Small Chuck (With 65 Mm 3 Jaws Self Centering Chuck)

    • Based on 26 reviews
Condition: New
Checking for product changes
$233.35 Why this price?

Buy Now, Pay Later

As low as $38.89 / mo
  • – 6-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Selected Option

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: 13 left in stock
Fulfilled by ASSORTSMACHINETOOLS
Arrives May 27 – May 31
Order within 16 hours and 29 minutes
Available payment plans shown during checkout

Recently Viewed

Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK


Features

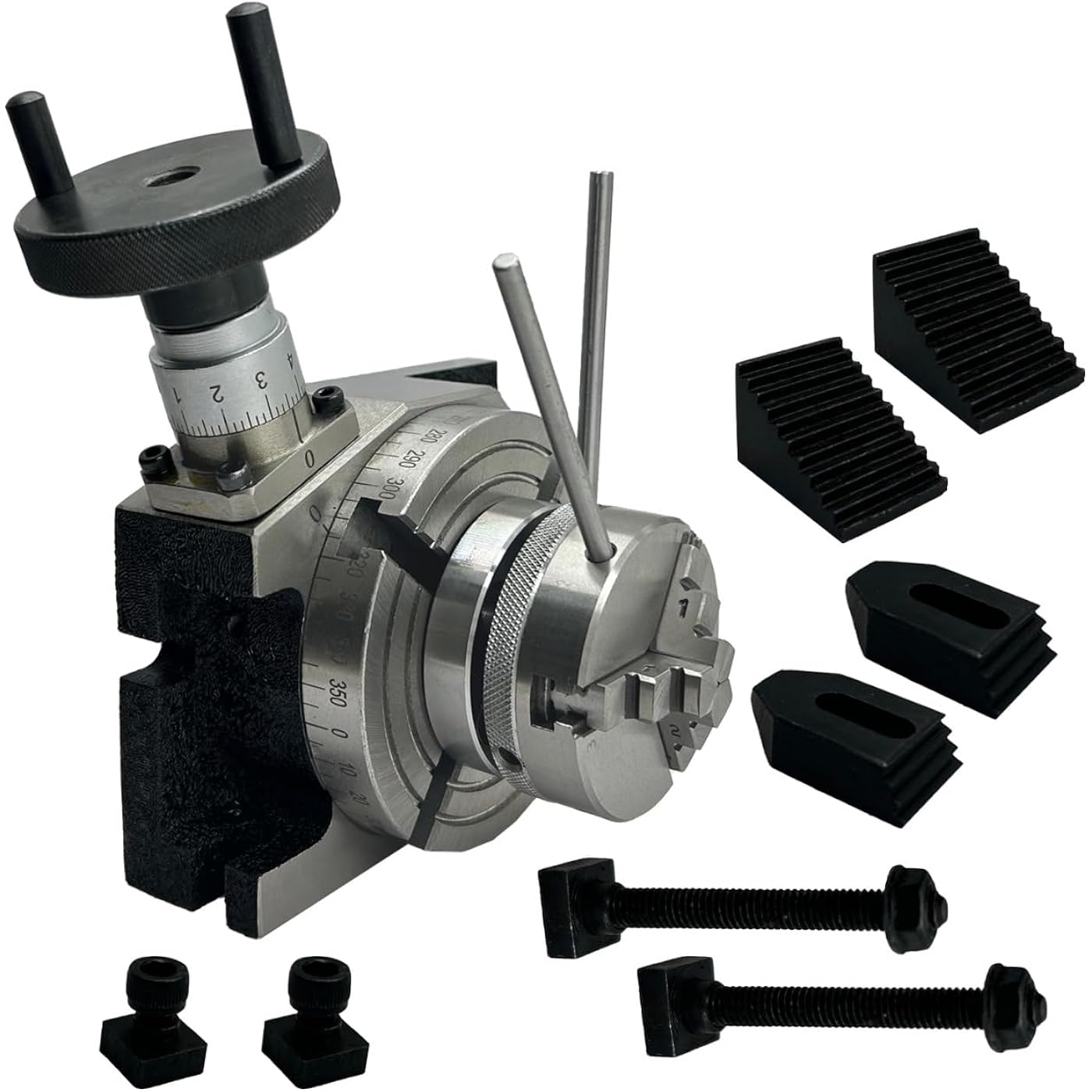

  • Tool Set of 4" Regular Rotary Table with a 65 mm 3 jaws Self Centering Chuck with Back Plate & fixings T nut Bolts & M6 clamp kit
  • Chuck Body is Grain SG Caste Iron & Jaws are of Tool Steel. Jaws are Hardened & Ground.
  • Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. A Tool Steel Back Plate is supplied with Fixing T nuts to Mount the Chuck on It. Back Plate is Drill in a manner that it will fit both 3 as well as 4 slots Table. The Back side of the Plate has a locating Spigot to center the Mounting on to the Table.
  • It can be mounted both in Horizontal & vertical position. Hand wheel is graduated in divisions of 10 min & can be set to zero.

Description

Description Of 4" (100 Mm) Rotary Table Designed For Smaller Milling Machines. Table Diameter 100 Mm Table Is Graduated 360 Degrees. Worm Gear Ratio -1:36, Which Means That The 1 Handle Rotation Shall Turn The Table By 10 Degrees. Center Height In Vertical Position: 2-1/16" (50 Mm Approx) Excluding Chuck. Hand Wheel Is Graduated In Divisions Of 10 Min & Can Be Set To Zero. Can Be Mounted Both In Horizontal & Vertical Position. Description Of Chuck Made From Chuck, The Body Of Which Is Made From Sg Iron & Jaws Are Of Tool Steel Hardened & Ground. Supplied With A Mounting Back Plate & Fixing Tee Nuts With Screws. The Back Plate Has Been Drilled In A Manner That It Will Fit To A 3 Slot Or A 4 Slot Rotary Table. A Tool Steel Back Plate Is Supplied With Fixing T Nuts To Mount The Chuck On It. Back Plate Is Drill In A Manner That It Will Fit Both 3 As Well As 4 Slots Table. The Back Side Of The Plate Has A Locating Spigot To Center The Mounting On To The Table. A Suitable M6 Clamp Kit Is Included Along.

Brand: ASSORTS


Material: Cast Iron


Thread Size: M6


Included Components: 4" Inch 100 mm Rotary Table ,65 mm 3 Jaw Self Centering Chuck with Back Plate & Fixing T nuts & M6 Clamp kit See more


Manufacturer: ‎ASSORTSMACHINETOOLS


Part Number: ‎MRT-4R.70MMJ.4


Item Weight: ‎12.38 pounds


Package Dimensions: ‎13.7 x 11.4 x 7.8 inches


Item model number: ‎45676


Is Discontinued By Manufacturer: ‎No


Size: ‎4"/100 MM ROTARY TABLE WITH 65 mmCHUCK & CLAMP KIT


Color: ‎Wrinkle Black Paint Finish & Ground Finish


Style: ‎WITH 65 MM 3 JAWS SELF CENTERING CHUCK


Material: ‎Cast Iron


Power Source: ‎Manual


Item Package Quantity: ‎3


Included Components: ‎4" Inch 100 mm Rotary Table ,65 mm 3 Jaw Self Centering Chuck with Back Plate & Fixing T nuts & M6 Clamp kit


Batteries Included?: ‎No


Batteries Required?: ‎No


Date First Available: January 18, 2017


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: May 27 – May 31

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • PayTomorrow Financing
  • Apple Pay Later
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • I am very happy with this unit
Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK
I believe that the hole in the center of the table is made deliberately smaller than the diameter of the shank on the chuck ... I had to turn my mill into a jig grinder and enlarge the hole a few thousanths, but that insured that the chuck was perfectly lined up with the table ... an easy job to do, and well worth it ... the rotary table is nicely made, and will prove to be very useful ... show more
Reviewed in the United States on May 11, 2021 by K. Picha
    • Damaged gear and threads
Style: WITH 70 MM 4 JAW INDEPENDENT CHUCK
This product came defective. From the get go when you turned the hand wheel there was a tight spot where the wheel wanted to stop. After taking it apart and inspecting I found damage to the gear and noticed really poor workmanship on the thread on hand wheel where it mates to the gear. Wanted this to be a nice useful little tool but you get what you pay for. ... show more
Reviewed in the United States on October 16, 2022 by Bmallen77
    • Good product for the money
Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK
Review Image by Larry Crano Larry Crano
When I first received the rotary table and chuck the chuck was not mounted on the table. When I went to mount the chuck I noticed that the screws for attaching it were so short that only one or two threads would have engaged the T-nuts. These were 6mm X 10mm screws and I replaced them with 6mm X 15mm screws. I contacted the seller on this issue and they were quick to respond that they would look into this issue. Next I set up the rotary table with the chuck to face off a piece of 3/4 aluminum. I took a .050" deep cut and used the rotary table to rotate the part into the cutter. There was some vibration/looseness evident between the rotary table plate and the base so I tore down my setup and found a bolt on the back of the base that is in the center of the bearing. I was able to tighten this bolt about a 1/4 turn and after setting the part back up and trying the cut again I found that the vibration was significantly reduced. There may be some further tightening up of the system that I can do but that is for a later date. All in all, the table seems well made, the chuck is surprisingly robust for its size and I am very satisfied with my purchase and with my interactions with the seller (there was some confusion on the shipping and they were quick to respond and clear things up). I think this rotary table & chuck is a good value and would recommend it for someone doing light work on a small milling machine. If you do larger parts with heavier depths of cut I would look at a larger size rotary table. ... show more
Reviewed in the United States on March 31, 2021 by Larry Crano Larry Crano
    • Not rigid enough
Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK
It arrived missing the bolts and t nuts for the chuck after I got that resolved by greeting them locally I found it isn’t as solid as I hoped I would not Recommend it
Reviewed in the United States on March 26, 2021 by Sal F. Marano
    • Very Nice Rotary Table
Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK
I disasembled the unit and chuck cleaned all parts and relubed with quility lube... The tool is very nice, machine work was very good. However it was gritty and dirty inside and was not totally smooth during 360 rotation.... now works perfectly run out is under a .001 does a great job on small parts. You cant beat it for the price.... ... show more
Reviewed in the United States on July 22, 2021 by Richard
    • Very sloppy. Don't waste your money.
Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK
Using the three jawed chuck the runout is over .020. Pretty much useless. If you had the 4 jaw chuck you could adjust it. Company offered me 10% off my net order but no refund. Like i would ever order any more junk from them!
Reviewed in the United States on August 8, 2022 by james
    • 4" milling index
Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK
Performed the purpose better than I expected. Workings were tight and spot on. I would recommend this to anyone wanting great performance for a vertical milling device.
Reviewed in the United States on September 12, 2020 by Amazon Customer
    • Well it's just ehh. Sloppy.
Style: WITH 65 MM 3 JAWS SELF CENTERING CHUCK
It's tolerance are sloppy. Lots of back lash. When turning it it gets stiff then lose. Climb mill with it prepare I lose small tools. It made the part I needed it for but with A lot of chatter. The size is good for the small mill I have and I do not make parts for sales, so it is ok. Still better than not having one. Oh the degree marks around he table don't like up with the tee slots ... show more
Reviewed in the United States on September 2, 2021 by Da Finger
