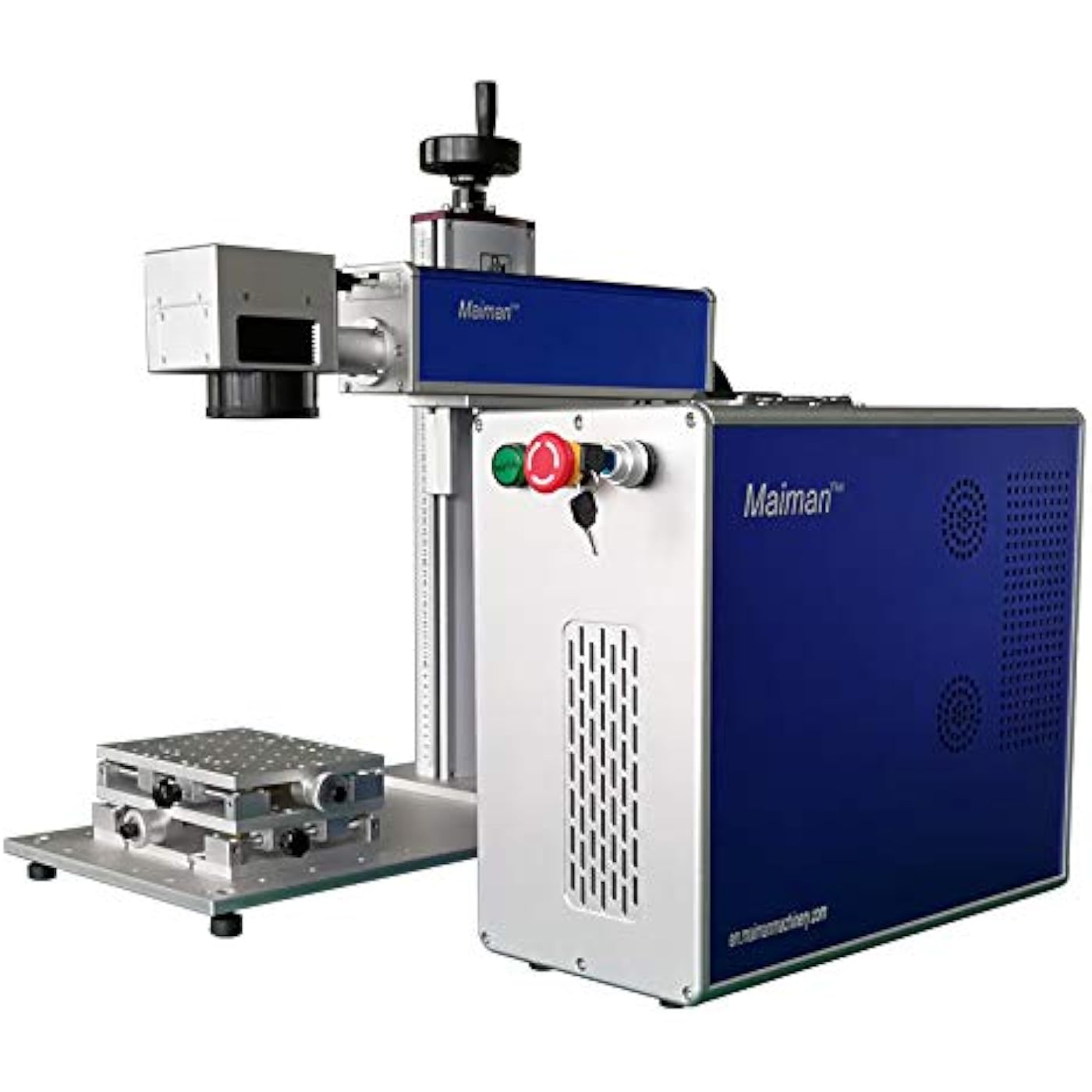

Maiman Portable 30w Fiber Laser Engraving Machine for Aluminum Etching

Size: Desktop Raycus 30W RFL-P30Q

Features

• The fiber laser engraving machine works with metals of all type, good for high contrast marking, etching and deep engraving on flat metal surface, if marking on the curve of round substrate is needed, please buy an optional rotary axis.
• For stainless steel black marking, please go with YDFLP-E-30-LP or YDFLP-E-20-LP, those models offer a higher contrast and speed than Raycus series in this particular application, for high contrast aluminum, anodized aluminum black marking, please drop us message to customize.
• The fiber laser software runs on any Windows operation system, the vector image created by AutoCad and Coreldraw could be easily imported in DXF or PLT format, the software generates barcode, 2D code, serial number, date and time data, all windows fonts are supported.
• The fiber laser engraving machine does support color changing marking effect for some plastics, e.g., ABS, PES , PVC, etc, the marking effect varies, depends on plastic type, color and density, please drop message for a sample marking before decision making. The fiber laser does not work with ceramics, glasses and organic materials.

Description

Please leave your question on the page or drop us message if you have anything uncertain, we will answer it in 12 hours and hopefully we will be help for a proper purchase decision. Highlights: 1.the fiber laser engraving machine has a robust housing, net weight 103LBS, the Z axis is 20” high, the focal height around 7”, nearly 13” space secured for substrates. 2.focus assistant feature, the focal height is there when 2 red dots merge. 3. the marking gun could be easily mounted elsewhere when protect enclosure needed or in any other scenario. Warranty: 2 years against order, faulty part replacement with remote support. Other Costs: NO any other cost at all, simply pay to Amazon and wait, the laser will be send to your porch by us. Configuration: Raycus RFL-30Q fiber laser source, licensed EZcad2 software v2.14, 8,000mm/s galvo scanner, 4.34.3” f-theta lens. Delivery: The estimated time arrival as per shown on the top right of this listing, Amazon calculate automatically as per our warehouse stocks. Hardware and Software Installation: very simple installation, please read the “readme.txt” in the pen drive comes along with the machine before anything. Training: video training, please read the “readme.txt” file in the pen drive for the training. Specification: Laser Source: Raycus RFL-30Q 30W Scan Area: 4.34.3” Fiber cable length: 2m Nominal focused spot size: 10um Engraving Speed: 8,000mm/s Wavelength: 1064nm Frequency: 20-80kHz Pulse Width: 110-130ns Communication with Computer: USB2.0 (preferred, every computer support by default) or USB3.0 (not work if USB3.0 driver is not installed) Civil Power: 110V/60Hz Cooling: air cooling "

Date First Available: September 16, 2020

Manufacturer: Yongmao

Country of Origin: China
