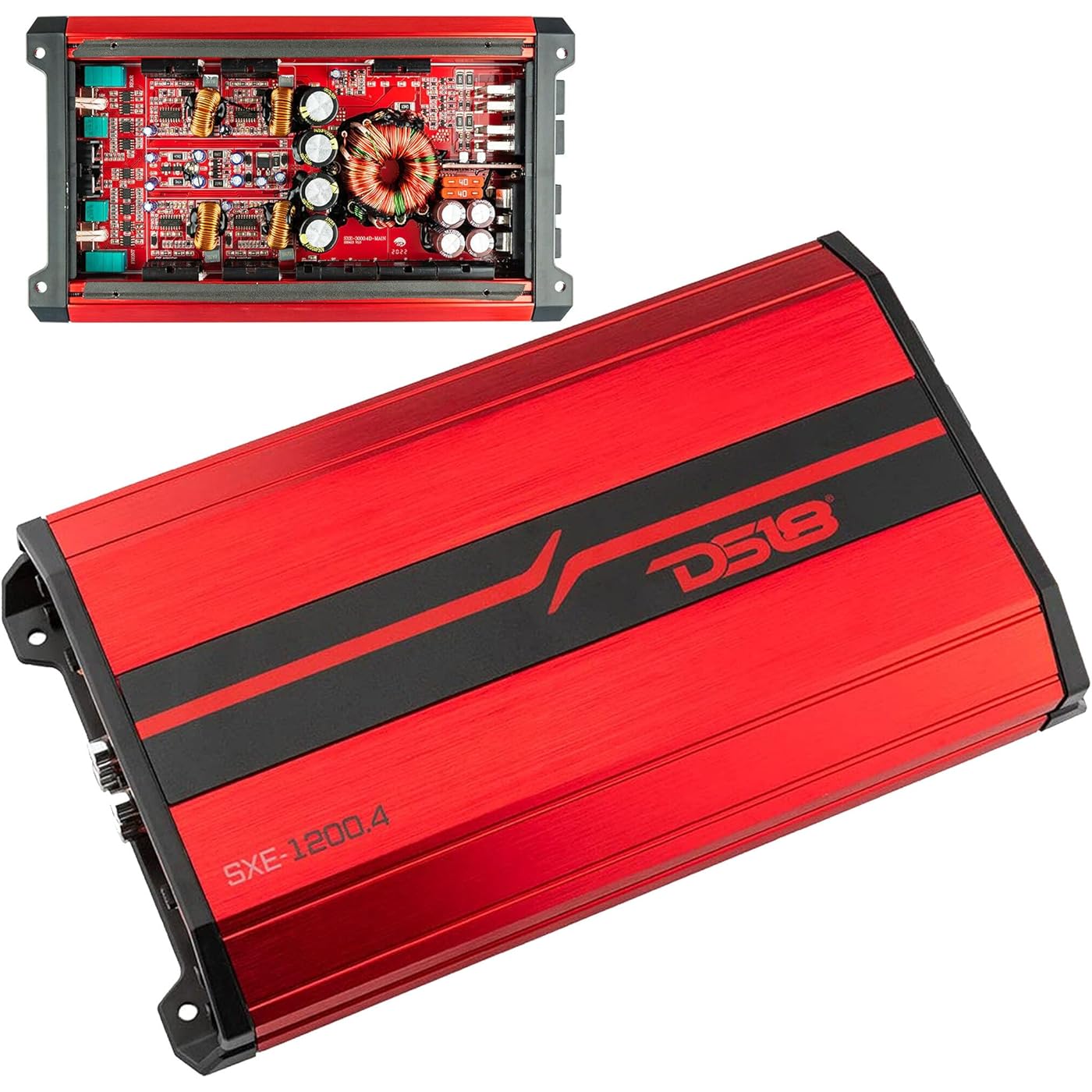

DS18 SXE-1200.4/RD Car Amplifier Stereo Full-Range Class A/B 4-Channel 60x4 RMS @4 OHM 1200 Watts - Powerful and Compact Amp for Speakers in Car Audio System

Features

• HIGH PERFORMANCE - DS18s SXE series of amps was designed for users looking for an extreme increase to the quality of music reproduced by their vehicle. The SXE-1200.4 guarantees your sound systems speakers perform at their peaks on every use
• VARIABLE CROSSOVER - The SXE series of amplifier gives users the ability to tailor the audio reproduced by their vehicle to their personal listening preferences through the use of its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design: everything you need to take control of your listening experience
• PERFECT SIZE - As a Class A/B amplifier, the SXE series uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicles custom build: but, what it lacks in size it makes up for in power. Easy installation
• SUPERCHARGE - The SXE-1200.4 has a power output of 200W x 2 CH bridged at 4-ohms, 100W x 4 CH at 2-ohms, 60W x 4 CH at 4-ohms: perfect power settings to supercharge any custom build
• NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market

Description

POWER Total Watts (Peak) - 1200W RMS Power @ 4 ohms - 4 x 60W RMS Power @ 2 ohms - 4 x 100W RMS Power @ 4 ohms Bridge - 2 x 200W AUDIO Frequency Response - 10Hz-20KHz Signal to Noise Ratio - 90dB Efficiency @ 4 ohms - 64% Damping Factor - 170 Input Impedance - 20kΩ Channel Separation - 45dB Total Harmonic Distortion (THD) - 0.05% Low Level Input Range - 200mV-5V Selectable X-Over - HPF/FULL/LPF X-Over Filter Range - 40Hz-2KHz FEATURES Amplifier Class - Analog (AB) Amplifier Type Stereo - Full Range Number of Channels - 4 Minimum Impedance - 2 Ohms Stereo / 4 Ohms Bridge Led Indicator - Power/Protect/Clip Power Input Terminal Size - 4Ga Fuse Size - 2 x 25A (50A) Cooling Fan - Yes Thermal Protection - Yes (80℃) Over-Load Protection - Yes DC Output Protection - Yes Short Circuit Output Protection - Yes Voltage Input Protection - Yes (16.5v) Clipping Protection - Yes Body Color - Red / Black Brushed Aluminum MEASUREMENT Overall Length - 9.8" / 249.3mm Overall Wide - 5.5" / 140mm Overall Height - 1.8" / 48mm Heatsink Length - 8.34" / 212mm Gross Single Unit Weight - 1.76KG GREAT FOR Here at DS18, we develop products for people like us: audio enthusiasts.

Item dimensions L x W x H: 10 x 12 x 9 inches

Voltage: 12 volts

Manufacturer: DS18

Maximum Supply Voltage: 12 volts

Minimum Supply Voltage: 16.5 volts_of_direct_current

Voltage: 12 volts

Maximum Supply Voltage: 12 volts

Minimum Supply Voltage: 16.5 volts_of_direct_current

Mounting Type: Surface Mount

Number of Channels: 4

Operating Temperature: 80 °C

Output Power: 1200 watts

Maximum Output Power: 1200W

Item Dimensions: 10 x 12 x 9 inches

Material Type: Aluminum

Specification Met: Audio Precision, Ce

Manufacturer: DS18

Model: SXE-1200.4/RD

Brand Name: DS18

Number of Items: 1

Unit Count: 1 Count

UPC: 810097261228

Part Number: SXE-1200.4/RD
