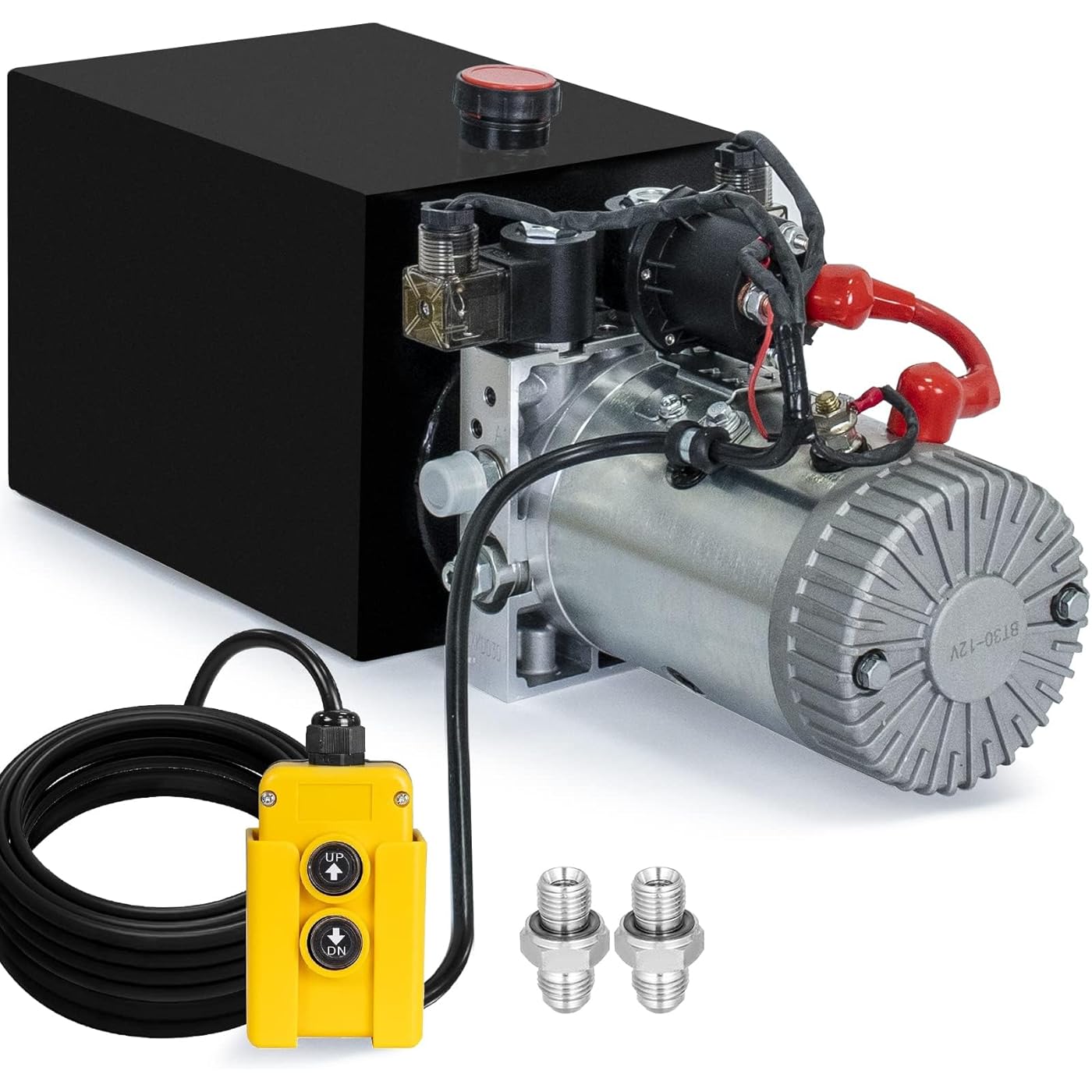

DC HOUSE Electric Hydraulic Pump Unit Metal Reservoir for Dump Trailer (Double Acting 10 Quart)
Condition: New
Buy Now, Pay Later
As low as
/ mo
Learn more
- – Up to 36-month term if approved
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
In Stock.
Arrives
Tuesday, Oct 27
Recently Viewed
Size: 10 Quart Double
Features
- One Force Lifts a Thousand Pounds: 12V DC, 1.6 kW motor, with metal reservoir options in 4, 6, 8, 10, and 15 Quart. Both A and B ports deliver up to 3200 PSI/22 MPa, providing strong, stable lifting force for double acting cylinders. Includes a remote control for convenient operation.
- Smooth Double Acting Control: Control raise and lower with the included remote. Oil works alternately through ports A and B at the same pressure for even, precise movement. The built-in relief valve allows pressure adjustment and is pre-set to limit system pressure, helping protect the pump from overload and reduce failure risk.
- Easy to Use: Features an SAE #6 (9/16-18 UNF) connector for common hydraulic lines; outlet fitting is 1415 mm inner thread/181.5 mm outer thread, with a matching adapter available if your hose fitting differs. This 12V hydraulic pump arrives preassembled just add filtered hydraulic oil (viscosity 2246 mm2/s), connect the power leads and hoses, and it is ready to run. Use 2025 mm2 copper power wire for stable performance.
- Durable and Leak Resistant: A rust resistant solid metal steel tank and reinforced sealing help minimize oil leaks, even under high-impact daily use. The 10 and 15 Quart reservoir options support longer cylinder travel and better heat dissipation for heavy-duty equipment.
- Versatile Applications: Works with double acting cylinders for dump trailers, container truck tailboards, hydraulic wood splitters, small presses, lifting platforms, semi-electric push trucks, bucket transporters, garden tractors, forklifts, stackers.
Brand: DC HOUSE
Color: Silver-black
Material: Stainless Steel
Style: Above Ground
Product Dimensions: 22.1"L x 7.1"W x 7.1"H
Power Source: Battery Powered
Item Weight: 29.5 pounds
Maximum Flow Rate: 2.1 milliliters_per_second
Maximum Lifting Height: 15 feet
Voltage: 12 volts
Brand Name: DC HOUSE
Model Number: L12t160123YYDLDY10S-1
Global Trade Identification Number: 84
Manufacturer: Fisters
Number of Items: 1
Manufacturer Warranty Description: 1 year manufacturer
Unit Count: 1 Count
Included Components: 1pc Dump Trailer Remote Control Switch
Item Type Name: Double Acting Hydraulic Pump
Manufacturer Part Number: L11020101007-1
Power Source: Battery Powered
Flow Rate: 2.1 milliliters_per_second
Maximum Lifting Height: 15 feet
Voltage: 12 volts
Horsepower: 1.6 KW
Material Type: Stainless Steel
Color: Silver-black
Product Style: Above Ground
Item Dimensions L x W x H: 22.1"L x 7.1"W x 7.1"H
Item Weight: 29.5 pounds
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Tuesday, Oct 27
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- Zip Pay in 4
- Financing through Apple Pay
- Financing through Google Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Size: 10 Quart Double
Good hydraulic pump. Worked fine for my dump trailer.Comes with Chinese fittings, but also has the American adapters Also has threaded holes on the bottom to screw in place. Remote control cord has a magnetic base that will stick anywhere you want it to metal.
Reviewed in the United States on May 13, 2026 by Spike
Size: 4 Quart Double
Product works well, after reading some of the reviews i had concern but i received instructions with pump and two types of fittings. BTW the British threads that several users complained about are available at hydraulic stores there are several near me but the Custom Hydraulic people were top notch in mating up what i needed. The seller indicates it can be used in a vertical mounting position which the reviews said no. I have mine vertical and it works well, As far as wiring it is very simple red or positive to motor relay and black or ground to motor. The nuts were actually left loose to make it more obvious. Only negative so far is the down position does not have a check valve and in my application i need to hold at both ends of cylinder. Easy fix though a $65 2 way solenoid valve wired to be open during pump operation solves the issue. Would be nice to add some flow control but in this price range not happening. You can add flow control external if needed. Overall functional and cost effective for converting over and much cheaper and quicker than electric actuator
...
show more
Reviewed in the United States on July 16, 2020 by Jlester
Size: 15 Quart Double
This unit did come complete with instructions but unit itself leaves a lot to be desired. First off, it’s important to note this unit doesn’t ground through mount, it requires an external ground wire run to the mount from the negative post for it to work. After wiring up unit and getting it to work, I found that the controller was wired backwards and the up button made the dump bed drop and the down button raised my dump bed. After solving that issue I ram the bed up only to have it bleed off immediately till the dump bed was resting on the frame. After pulling apart one of the selonoids I found that all of the orings and backers were installed improperly and ruined. I feel like the unit will work well once I replace all the orings and backers in the system. You shouldn’t have to do this on a new unit. Also, there isn’t a way to message the company for product support/partial refund which is frustrating. It’s a good buy for what you get but be prepared to do hydraulic troubleshooting to get it to work.
...
show more
Reviewed in the United States on January 6, 2022 by Nathan Dawley
Size: 4 Quart Double
I am happy with the unit overall. The hydraulic fittings are British standard, which is fine if you happen to live in England. If you want SAE, pull the fittings and replace with JIC, works great. One problem I am having is in going down mode my lift table falls like a rock and don't understand how to fix it? Everyone mentioning NO INSTRUCTIONS makes sense, all they have to do is post them online, easy right?. Ken I wanted to update my comments. The unit has a check valve on the pressure port. Take out the hose fitting the check valve will turn out counterclockwise with a straight screwdriver. This is a pressure activated check valve that must be set by the manufacturer for about 10000 lbs. This valve allows the hydraulic fluid to flow out at high volume, but going down or the fluid returning pushes the plunger closed slowing the descent of the hydraulic ram. I modified the check valve for my application, I have a lift table which will lift between 500-1500 lbs. This check valve is ideal because the more weight I have on the lift table the slower it descends, it is pressure activated. It works perfectly.
...
show more
Reviewed in the United States on December 7, 2017 by Ken Lockwood
Size: 4 Quart Double
The pump arrived as described. I was concerned about priming the pump/ picking up hydraulic oil or possible air trapped in the cylinder. I connected lines to cylinder and hit the button and it worked perfectly with no problems. I have ordered 90s to change direction of lines coming from the pump, currently they are straight out on both sides and require more space. The area I plan to use works better with the lines coming up from the pump. I gave 4 stars because there seems to be some fluctuation with the cylinder, after letting go of the up/down button the piston doesn’t immediately stop, it seems to float a little bit either up or down. Maybe it’s the wrong type of pump for what I’m using it for but it works. I’m using it on a hydraulic press I built. I have a 12v battery with a trickle charger connected to keep the battery charged.
...
show more
Reviewed in the United States on August 11, 2026 by Lloyd denny
Size: 10 Quart Double
It came in on time, good quality looking materials. Going to install it tomorrow.
Reviewed in the United States on August 7, 2026 by Al Smith
Size: 15 Quart Double
Purchased for my husband to make some kinda fly sprayer.
Reviewed in the United States on June 29, 2026 by Jolene Sellers
Size: 8 Quart Double
Placed this on my 2001 CHEV dump truck and put it to work right away. Installation was done by my friend, which takes a bit of know-how, dumps 2T fine. Tethered remote is helpful when dumping; When I overloaded it, it simply refused to dump the load BUT DIDN'T BREAK DOWN. Rebalanced the load and VOILA....kept right on working. Good product.
...
show more
Reviewed in the United States on May 20, 2024 by Octavio-CALIF
