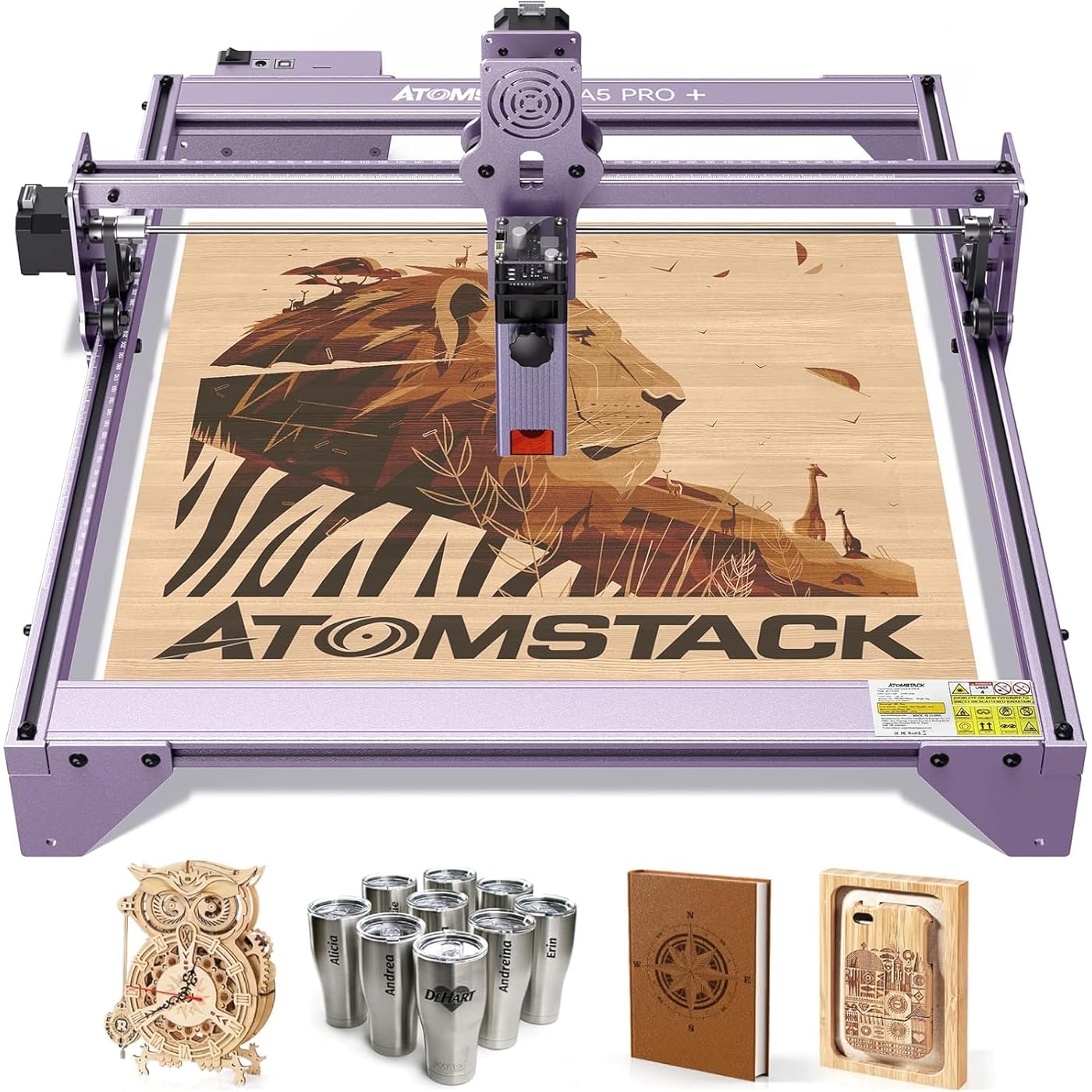

ATOMSTACK A5 Pro Desktop Laser Engraver, 5W Ultra-Fine Compressed Spot Laser Engraving & Cutting Machine with All-Metal Frame, Fixed Focus, for Wood, Metal, Acrylic, Leather & DIY Craft Projects

Features

• Ultra-Fine Compression & Fixed FocusATOMSTACK A5 Pro engraver is renowned for its impressive 5W output power, featuring powerful compressed spot technology that allows for precise control of the beam, enabling exquisite engraving. The upgraded compression technology reduces the spot to 0.08mm, achieving remarkably fine image engraving.
• Excellent Engraving TechnologyATOMSTACK A5 Pro 5W Laser cutter with an output power ranging from 5 to 5.5W, boasts an ultra-fine focus area reduced to just 0.23mm2, resulting in a more refined engraving process that can effortlessly cut through 5mm plywood and black acrylic.
• Robust All-Metal StructureConstructed entirely from anodized aluminum alloy, this machine is solid and durable. Its incredibly stable structure minimizes vibration during operation, and the integrated screw rods (as opposed to the combined couplings found in most other models) work seamlessly with the stepper motor, ensuring the entire engraving and cutting process is both efficient and accurate.
• High-Performance Structure DesignATOMSTACK 5W features an integrated screw rod design that allows for a maximum running speed of 11000mm/min, providing greater stability and agility when engraving complex patterns, making it easier to achieve superior results. Additionally, the UV-filtering acrylic on the module blocks 97% of ultraviolet light, safeguarding the eyes of the operator.
• Extensive Compatibility ATOMSTACK 5W can be compatible with various mature engraving software, such as LaserGRBL(free), LightBurn(paid), LaserGRBL support Windows XP/7/8/10/11, and LightBurn support Mac OS and Windows, engraving file format support NC, BMP, JPG, PNG, DXF, etc.
• Laser power output level:5000mW. The laser class: CLASS 4

Description

In fact, the machine power of 20W/40W/50W/60W/90W is not crucial for the engraving/cutting effect. What matters is the power of the module. With a machine power of 90W and a module power of 5~5.5W, the effect is hardly different from a machine with 40W power and a 5~5.5W module power. Engraving materials: wood, bamboo, cardboard, plastic, leather, PCB boards, aluminum oxide, non-reflective coatings, and painted metal Cutting materials: cardboard, non-woven fabric, veneer, acrylic, and some thin plastic sheets. Engraving glass is a common inquiry from our customers. Before engraving, please paint the glass black or attach a color card. For better results, the R3 Pro Rotation Roller can be used. The 5W engraver is equipped with a 32-bit motherboard that can cut 5mm plywood and black acrylic. With a built-in cooling system and an overall hidden design, it can effectively cool the machine and extend its lifespan. The acrylic splash guard design easily filters ultraviolet rays, sparing you the inconvenience of wearing safety glasses. The one-piece screw (instead of a combined coupling) makes the entire engraving and cutting process efficient and precise. The engraving precision reaches 0.01mm, and the ultra-fine focus area is reduced to 0.19*0.16mm. The engraving effect is significantly clearer than that of other machines. The machine is compatible with various mature engraving software, such as La serGRBL and LightBurn, supporting Win XP / Win 7 / Win 8 / Win 10, as well as Mac systems (LightBurn). Supported engraving file formats include NC, BMP, JPG, PNG, DXF, and more.

Product Dimensions: 23.62 x 13.78 x 5.51 inches

Item model number: AT-A5-Pro

Item Weight: 11.22 pounds

Date First Available: December 20, 2025
