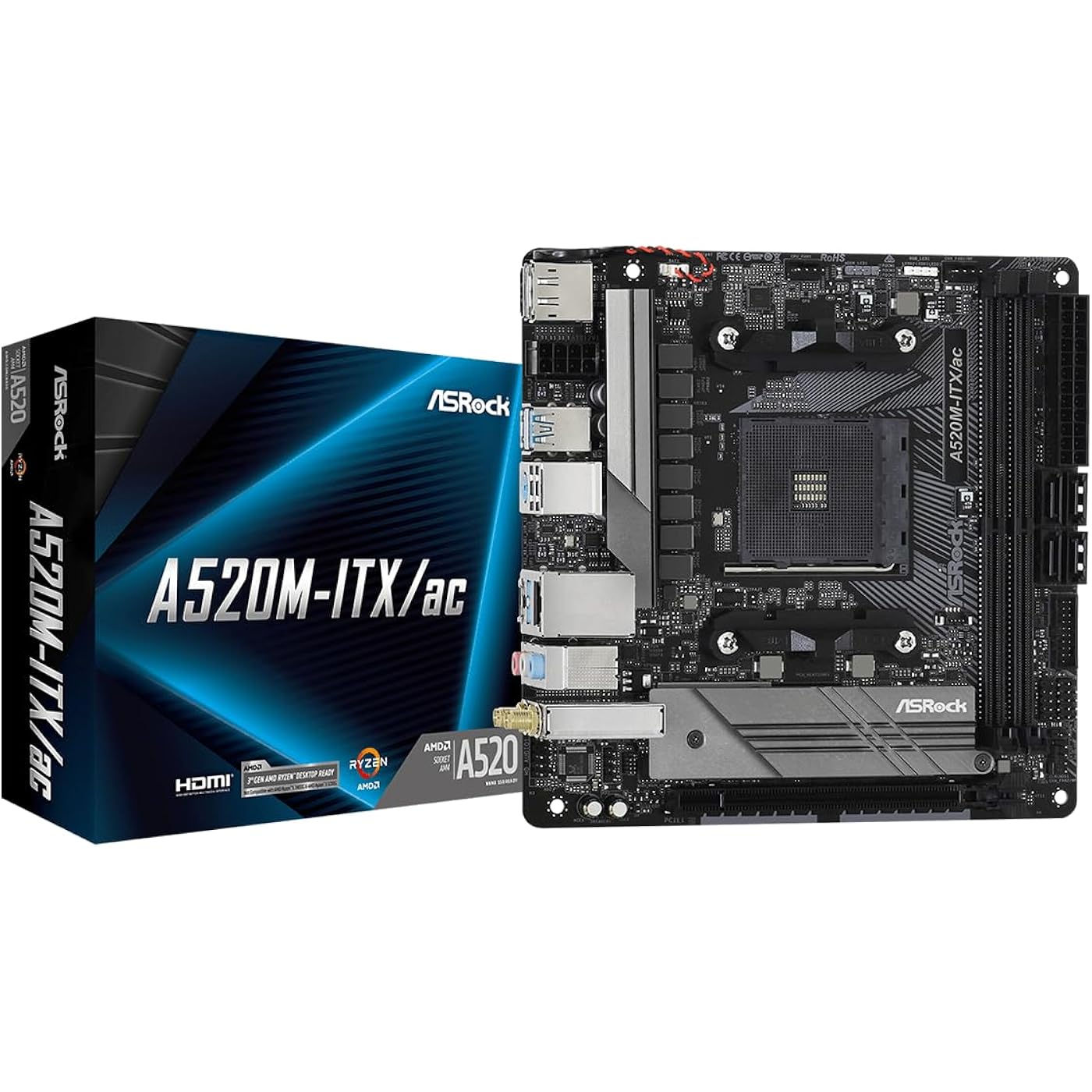

ASRock A520M-ITX/AC Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors) Mini ITX Motherboard

  • Based on 433 reviews
Condition: New
Checking for the best price...
$203.35 Why this price?

Buy Now, Pay Later

As low as $33.89 / mo
  • – 6-month term
  • – No impact on credit to apply
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout.

Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Selected Option

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: Only 1 left in stock, order soon!
Fulfilled by Amazon
Arrives Saturday, Jul 11
Order within 20 minutes
Available payment plans shown during checkout
Protection Plan Protect Your Purchase
Checking for protection plans...

Recently Viewed

Style: Motherboard


Features

  • Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors (3000 and 4000 Series Processors)
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16
  • Graphics Output: DisplayPort, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Description

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers. Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Operating System Microsoft Windows 10 64-bit.

Brand: ASRock


CPU Socket: Socket AM4


Compatible Devices: Personal Computer


RAM Memory Technology: DDR4


Compatible Processors: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series


Chipset Type: AMD A520


Memory Clock Speed: 2400 MHz


Platform: Windows


Model Name: A520M-ITX/AC


CPU Model: Ryzen 3


Processor Socket: Socket AM4


Compatible Devices: Personal Computer


RAM Memory Technology: DDR4


Compatible Processors: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series


Chipset Type: AMD A520


Memory Clock Speed: 2400 MHz


Platform: Windows


CPU Model: Ryzen 3


Memory Storage Capacity: 12 GB


Ram Memory Maximum Size: 64 GB


Main Power Connector Type: 24-Pin


Graphics Card Interface: PCI Express


Memory Slots Available: 2


Number of Ports: 12


S/PDIF Connector Type: Optical


System Bus Standard Supported: SATA 3


Total SATA Ports: 4


USB 2.0: 2


Total Usb Ports: 9


Number of Ethernet Ports: 1


Total Number of HDMI Ports: 1


Total PCIe Ports: 1


Brand: ASRock


Model Name: A520M-ITX/AC


Model Number: A520M-ITX/AC


Manufacturer: ASRock


Global Trade Identification Number: 45


Mfr Part Number: A520M-ITX/AC


Item Weight: 0.02 Pounds


Built-In Media: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas


Warranty Description: 3 years


Item Dimensions L x W x H: 8.35"L x 2.28"W x 10.83"H


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Saturday, Jul 11

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Great Product - Easy Upgrade - Great performance. Excellent results with Wifi & Bluetooth
Style: Motherboard
Easy install, easy config, and no problems experienced with the supported CPU's. Board with built in Wifi and Bluetooth, that fits in some really small cases. This was used to upgrade an really old computer in a really unusual case, and it worked exactly as I had hoped. I'm very happy with this product ... show more
Reviewed in the United States on March 4, 2025 by Network Native
    • Incredible Customer Service
Style: Phantom Gaming 4
Initial motherboard that was sent was defective and did not pass post, contacted the storefront regarding the issue on a Saturday, they had a new board delivered Monday. Works perfectly, great board for the build. Incredible customer service, will absolutely be using their products again for my other kids PC builds. ... show more
Reviewed in the United States on March 15, 2025 by Runeworks Gaming
    • no post, despite trying multiple processes
Style: Motherboard
have two of these boards, both purchased at different times, but both from Amazon. have not been able to get either board to post successfully. Before anyone suggests that this is a "me" problem, I have considered that. The other four computers I built that day suggest otherwise. I tried multiple processers (2600 and 5600G), multiple sticks of ram (in different combinations and from multiple different manufacturers), different PSU's (same as ram), and multiple different video cards ( same as ram and PSU). I get that these are relatively low-end boards, but two in a row not posting is ridiculous. I have used multiple higher-end ASRock boards and have had great success with them. I have three running happily along right now. Board from this same era/chipset from other manufacturers booted right up and posted to Windows just fine with the same components. Will be returning the one I just purchased, and will just eat the cost of the one that isn't still in my return window, even though it was just opened. Disappointed, as now I have to purchase something locally and wait for my return to process through Amazon ... show more
Reviewed in the United States on January 14, 2025 by brad reynolds
    • A Reliable Option for Casual Gamers and Budget Builders
Style: Phantom Gaming 4
I recently tried out the ASRock A520M Phantom Gaming 4 AM4 motherboard, and I have to say, it's a solid choice if you're on a budget and looking for a reliable performance. Stable Performance: The motherboard has been performing well, especially with my Ryzen 5 processor. It handles gaming and everyday tasks without any noticeable issues. Suitable for Casual Gaming: If you're not a hardcore gamer, this motherboard should do the job just fine. While it may not have all the high-end features, it provides a satisfactory gaming experience for casual players. Straightforward Setup: Setting up the motherboard was easy, even for someone like me with limited technical knowledge. The instructions were clear, and everything fit together smoothly during installation. Useful Features: The ASRock A520M Phantom Gaming 4 comes with some useful features, like decent onboard audio and USB 3.2 Gen1 ports. It has 3 Pin, and 4 Pin Headers, which makes it pretty easy to control the lighting of the rig. While it doesn't have all the extras, these small touches add some value. Budget-Friendly Option: For those on a budget, this motherboard is a good find. It strikes a balance between price and performance, making it suitable for cost-conscious builders. Final Verdict: To sum it up, the ASRock A520M Phantom Gaming 4 AM4 motherboard is a reliable choice for casual gamers and budget-conscious builders. While it may not have all the bells and whistles, it gets the job done without any major drawbacks. If you're looking for a practical and affordable option, this motherboard won't disappoint. I'd give it a solid 4/5! ... show more
Reviewed in the United States on July 19, 2023 by CAPN
    • 5600gt and 3600mhz ram right out the box
Style: Motherboard
board feels thick and firm, not flimsy. supported the 5600gt right out the box. so no bios update needed for apu support. only 1 nvme and 1 pcie slot, keep that in mind. supported 3600mhz ram right out the box.
Reviewed in the United States on February 26, 2025 by Brandon Dietz
    • Works flawlessly with AMD Ryzen 7 3700X 8-Core, 16-Thread
Style: Phantom Gaming 4
PC Built with AMD Ryzen 7 3700X 8-Core, 16-Thread Unlocked Desktop Processor with Wraith Prism LED Cooler, and worked without any flaws or errors! Was able to reuse existing power supply and other peripherals, including extGPU. I'm very satisfied with this built that saved me a couple hundred dollars from having to buy a new gaming laptop with all the bells and whistles. Highly recommend if you don't want to spend an arm and a leg on a more current model. ... show more
Reviewed in the United States on January 7, 2025 by Eevee
    • arrived brand new and working.
Style: Motherboard
The media could not be loaded. good motherboard! ordered couple so far and they all came working brand new, this board is ryzen 5000 series ready too.
Reviewed in the United States on March 4, 2025 by Gg
    • ITX
Style: Motherboard
Great Value easy to install
Reviewed in the United States on March 6, 2025 by K. Marino
