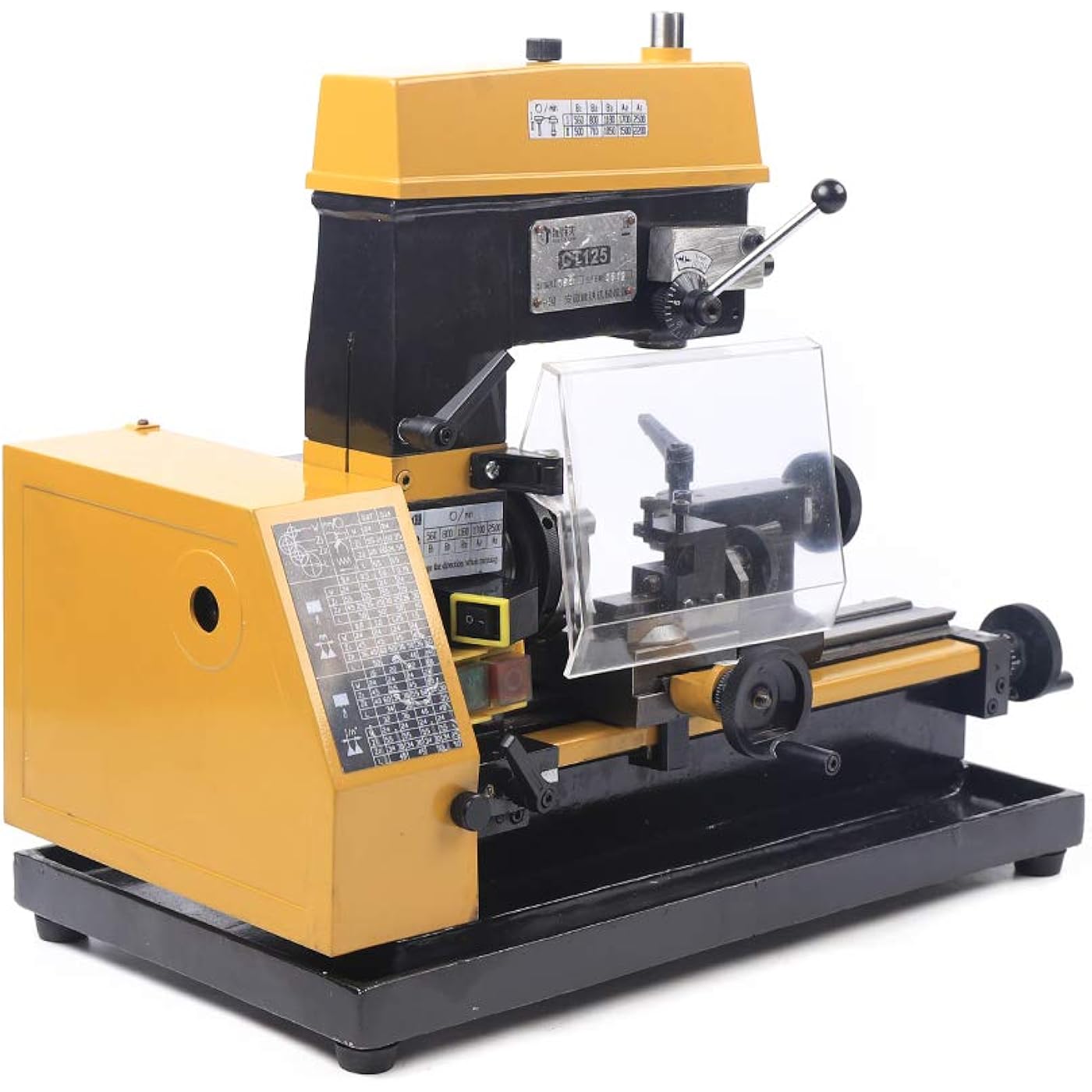

3-in-1 Micro Drilling and Milling Lathe Machine, CT125 High Precision Multi-function Benchtop Lathe Machine 110V 180W Electric Metal Mini Lathe DIY Tool, Milling Spindle Speed 500-2500r/min

Features

• Main ParametersMachine Type: Ct125. Power: 180 W. Voltage: 110 V. Maximum Workpiece Rotation Diameter: 125mm/4.9in. Maximum Workpiece Length: 180mm/7.1in. Maximum Workpiece Rotation Diameter on the Tool Rest: 60mm/2.4in. Spindle Speed Range and Series: 500-2500r/Min. Size: 52x30x41 Cm/20.5x11.58x16.14in. Wight: 22 Kg.
• Premium MaterialThis three-in-one precision milling machine is made of cast iron body and all-metal gears, with a high-precision spindle and quality electronic control system. It adopts high-power all-copper asynchronous motor with strong power. And equipped with 80mm high-precision three-jaw chuck. The bed adopts dovetail guide rail design, the contact surface is larger and more stable.
• Easy to UseThe control panel of this desktop milling machine is simple and easy to operate. The saddle makes it easy to fix devices, molds, pliers and other tools. The drilling and milling head can rotate 360 and lift within a range of 80mm. Through the V-belt position, the drilling and milling spindle can reach 10 speeds, which is very convenient to use.
• Wide ApplicationThis machine can process various non-ferrous metals such as titanium, stainless steel, steel, iron, aluminum, copper, and soft materials such as wood and nylon. It Is Mainly Used for the Outer Circle, Inner Hole, End Face, Taper and Metric and Inch Thread Processing of Various Rotating Parts. It Is Suitable for Families, Studios, Schools, and Various Small Repair Workshops.
• Quality AssuranceWe have strict quality control system, our products are put into the market after rigorous testing. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Description

This CT125 3-in-1 Micro Multi-Function Drilling and Milling Lathe Machine adopts cast iron body and all metal gears. It is mainly used for the outer circle, inner hole, end face, taper and metric and inch thread processing of various rotating parts. It is suitable for families, studios, schools, and various small repair workshops. SpecificationModel: CT125Power: 180 WVoltage: 110 VWight: 22 KgSize: 52x30x41cm/20.5x11.8x16.14inPackage Size: 55x30x48 Cm/21.7x11.8x18.9in Detailed Product Information1. TurningMaximum Workpiece Rotation Diameter: 125mm/4.9inMaximum Workpiece Length: 180mm/7.1inMaximum Workpiece Rotation Diameter on the Tool Rest: 60mm/2.4inSpindle Through Hole Diameter: 9mm/0.35inSpindle Taper Hole: Mt.1Number of Metric Threads Processed: 8Machining Metric Thread Pitch Range: 0.4-1.5mm/0.02-0.06inNumber of Inch Threads Processed: 8Machining Inch Thread Pitch Range: 0.0028-0.00551 /NLongitudinal Feed Series: 2Longitudinal Feed of Spindle per Rotary Tool Holder: 0.07-0.14mm/0.003-0.005Tailstock Sleeve Stroke: 18mm/0.71inTaper Hole of Tailstock Sleeve: Mt.1Spindle Speed Range and Series: 560-2500r/Min2. Drilling and MillingMaximum Hole Diameter: 6mm/0.24Distance from Spindle End Face to Working Surface: 120-180mm/4.7-7.1inDistance from Spindle Center Line to Column Surface: 125mm/4.92inRotary Angle of Drilling and Milling Head Box Around Column: 360°Spindle Speed Range and Series: 500-2500r/MinVertical Lifting Stroke of Drilling and Milling Head Box: 60mm/2.4inWidth of Working Face: 60mm/2.4inWorking Surface Length: 85mm/3.35inWidth of T-groove of Working Table: 8mm/0.31inSpindle Sleeve Movement: 40mm/1.6in Package Included1 x Drilling Lathe MachineOther Accessories

Manufacturer: ‎Upthehill

Country of Origin: ‎China

Item model number: ‎CT125

Color: ‎Yellow, Black

Material: ‎Cast Iron, Metal

Power Source: ‎Electric

Included Components: ‎1 x Drilling Lathe Machine, Other Accessories

Date First Available: October 21, 2024
