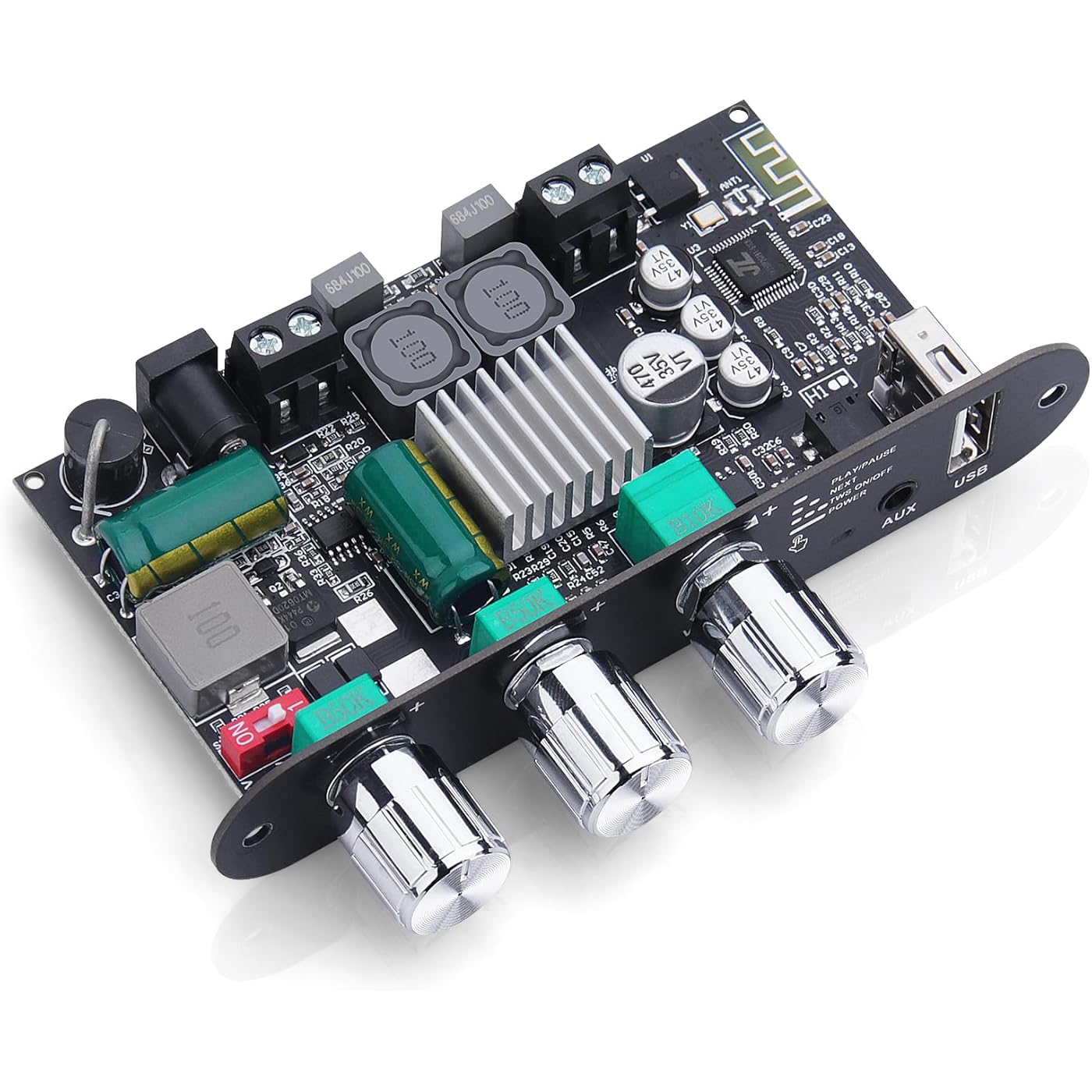

ZK-1001U Amp Bluetooth 5.3 Mono Amplifier Board with TWS, Mini Audio Amps with Boost for Home Outdoor DIY Speakers with 100W Power Output, Treble and Bass, Supports USB/AUX/BT Input, DC 9-24V
Condition: New
Buy Now, Pay Later
As low as
$4
/ mo
Learn more
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
In Stock.
Arrives
Saturday, May 9
Recently Viewed
Color: Black4 ZK-1001U
Features
- ZK-1001U MONO AMPFILIER BOARDZK-1001U Mini Bluetooth audio amplifier board is a mono channel amp with 100W rated power, only contact a passive speaker(20-100W, 3-8), DC7-24V/4A above (Cannot be connected to AC, suitable for 7.4V/12V/21V etc. batteries, not suitable for 24V batteries)). this mono ampfilier with a TPA3116D2 chip, distortion rate below 0.3%, and the upgrade Bluetooth 5.3 chips support AAC decoding, APP and TWS, low latency
- Outdoor Speaker Amplifier with BoostBuilt-In Boost Circuit for Optimal Voltage Output Features an auto-boosting circuit that intelligently adjusts input voltage (9V/15V) to a stable 19V or 24V (default: 24V. Red switch to 1 is 24V, to ON is 19V), this flexible voltage is ideal for outdoor use with battery-powered speakers.
- TWS BOX FUNCTIONThis ZK-1001U amp is a mono amp, this power amplifier module support TWS BOX mode, this couple of ZK-1001U mono power amps, you can use this two independent Bluetooth power amplifier boards connected by TWS box function, and left and right channel stereo can be realized
- BLUETOOTH 5.3 INPUTSThe 1001U Bluetooth power amplifier board with 4 kind of inputs: AUX, USB flash drive, USB sound card and Bluetooth wireless connection, the upgrade large chips support Bluetooth 5.3, low latency, The range of audio devices (smartphones, tablets, laptops, etc.) with Bluetooth connectivity is 15m/49ft
- HiFi AMP with Treble and BassZK-1001U driven by TPA3116D2 chip, a high-performance class D power amplifier chip, it can make thedevice maintain ultra-low distortion in the whole audio frequency band and show high-definition sound quality at the same time. this mini audio power amplifier with Treble and Bass,You can adjust the treble and bass to suit your musical preferences.
- MULTIPLE FUNCTION KNOBThis mini amplifier with a multiple function knob: Turn the knob clockwise/counterclockwise to adjust the volume level. Click: Play/pause. Double click: Next song. Three Click: Enter or exit TWS mode. Long press: Turn off/on
Description
ZK-1001U Bluetooth 5.3 Mono Amplifier Board with TWS, Mini Audio Amp for Home DIY Speakers with 100W Power Output, Treble and Bass, Supports USB/AUX/BT Input, DC 9-24V
Manufacturer: ARRAROWN
Maximum Supply Voltage: 24 Volts (DC)
Minimum Supply Voltage: 7 Volts (DC)
Mounting Type: Surface Mount
Brand: ARRAROWN
Maximum Supply Voltage: 24 Volts (DC)
Minimum Supply Voltage: 7 Volts (DC)
Mounting Type: Surface Mount
Number of Channels: 1
Output Power: 100 Watts
Specification Met: FCC
Manufacturer: ARRAROWN
Model: ZK-1001U
Brand Name: ARRAROWN
Warranty Description: 2 Years
Part Number: ZK-1001U
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Saturday, May 9
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- PayTomorrow Financing
- Financing through Apple Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Color: Black4 ZK-1001U
UPDATE: ZK-1001U works when supplied with sufficient power from the power supply, of course! At its 100W rated output power, the supply needs at least that or more, such as 200W peak. In my application, I was hoping for just 5 Watts peak. Idle power is approximately 0.4 amps so at 9V was 3.6 Watts as indicated by my bench power supply. This ZK-1001U sort of worked on a 9V "1300mAh" battery. Put in quotes because these batteries are not good for the rated current in my tests and are more like half or less. giving more like 5 Watts available. On a 9V battery, when I connected a guitar to the auxiliary input it sounded like it was cutting out. To use as a portable, a battery must have sufficient capacity and the common 9V battery doesn't have sufficient capacity. On the 9V battery I used, the Aux input and Bluetooth to my phone worked but the USB thumb drive didn't play. It looked like the thumb drive was being accessed as the light blinked or paused by pressing the volume knob. When I connected it to a bench power supply it showed 9VDC at 0.37Amps with the USB thumb drive and 0.27Amps with the thumb drive removed. On the bench power supply the thumb drive worked - music played from it. In the past, I had problems with many switching type DC adapter power supplies creating noise. The USB thumbdrive worked using a LITEON PA-1041-0 12VDC/3.3Amp adapter power supply I had for a HP monitor. No obnoxious noise. So, this amplifier doesn't work on a 9VDC battery - just insufficient power available to operate correctly. I hoped it would work as a mini cigar box guitar amplifier but on the 9V battery it was cutting out. If looking for a low power build, I had good results using the HiLetgo 2pcs TDA8932 35W Mono Digital Amplifier Board but it is sensitive to noise, both from the power supply and induced hum. In a non-metal case, the case of the volume control must be soldered to the input jack's ground and the panel needs to use a copper shield tape grounded that is also grounded to the input jack. (That is what I did anyway.) Original Review: Put the heatsink on as shown in the photo. I added two small heatsinks on the ICs on the right side (knobs facing you). I only tried a USB stick with MP3 files and the AUX input (mono 3.5mm plug) to a signal generator. The volume is a switch that selects the input. I didn't try other features. I powered it with a variable power supply as I was interested in running it on a 9V battery. It draws about 0.3A (300ma) so a 600mah battery will probably actually be half of 600mah in reality so would last 1 hour. I'll use a DC power jack and connect the (-) terminal that is a switch (opens when the plug is inserted) to remove the battery. The battery I plan on using is USB-C charged. A chassis USB-C cable to male plug will be inside. The parts on the board get a little hot. Not sure about longevity in a box without good air movement. As I didn't try other features and it works as I tested I gave it 5 stars. It seems to work as intended.
...
show more
Reviewed in the United States on January 20, 2026 by About The Details
Color: Black4 ZK-1001U
Adjust accordingly!!!!!!!!! This amp is amazing IF YOU ADJUST IT RIGHT!!! Thought something was wrong until I sent it back and got another one and it was going the same thing. After adjusting it correctly it work very good. Highly recommend
Reviewed in the United States on December 21, 2025 by MB
Color: Black4 ZK-1001U
Works well and you can't argue with the great price.
Reviewed in the United States on January 23, 2026 by BlairF
Color: Black2 ZK-MT21
It's a terrific little device except for the face it does need a 24v power cord. They give a piece of one. Do order one of don't have it. That's the reason it doesn't get 5 stars. You will have to build it to a degree but nothing technical. Otherwise, it BOOMS. I bought the 80watt and it rocks hard plus if you have a sub... prepare for techtonic aftershocks. Yes it can.
...
show more
Reviewed in the United States on December 22, 2025 by James Siller
Color: Black4 ZK-1001U
Awesome, used it for a homemade turtle box and it great.
Reviewed in the United States on February 5, 2026 by Millie
Color: Black4 ZK-1001U
Great amp, I used it for a 12” subwoofer and works great
Reviewed in the United States on December 10, 2025 by Nathan Dahlstrom
Color: Black4 ZK-1001U
Stopped working after 2 months.
Reviewed in the United States on March 7, 2026 by Amazon Customer
Color: Black4 ZK-1001U
Small but very powerful, puts out very clean music. Must buy for any small speaker build.
Reviewed in the United States on July 30, 2025 by Travis Vampran
