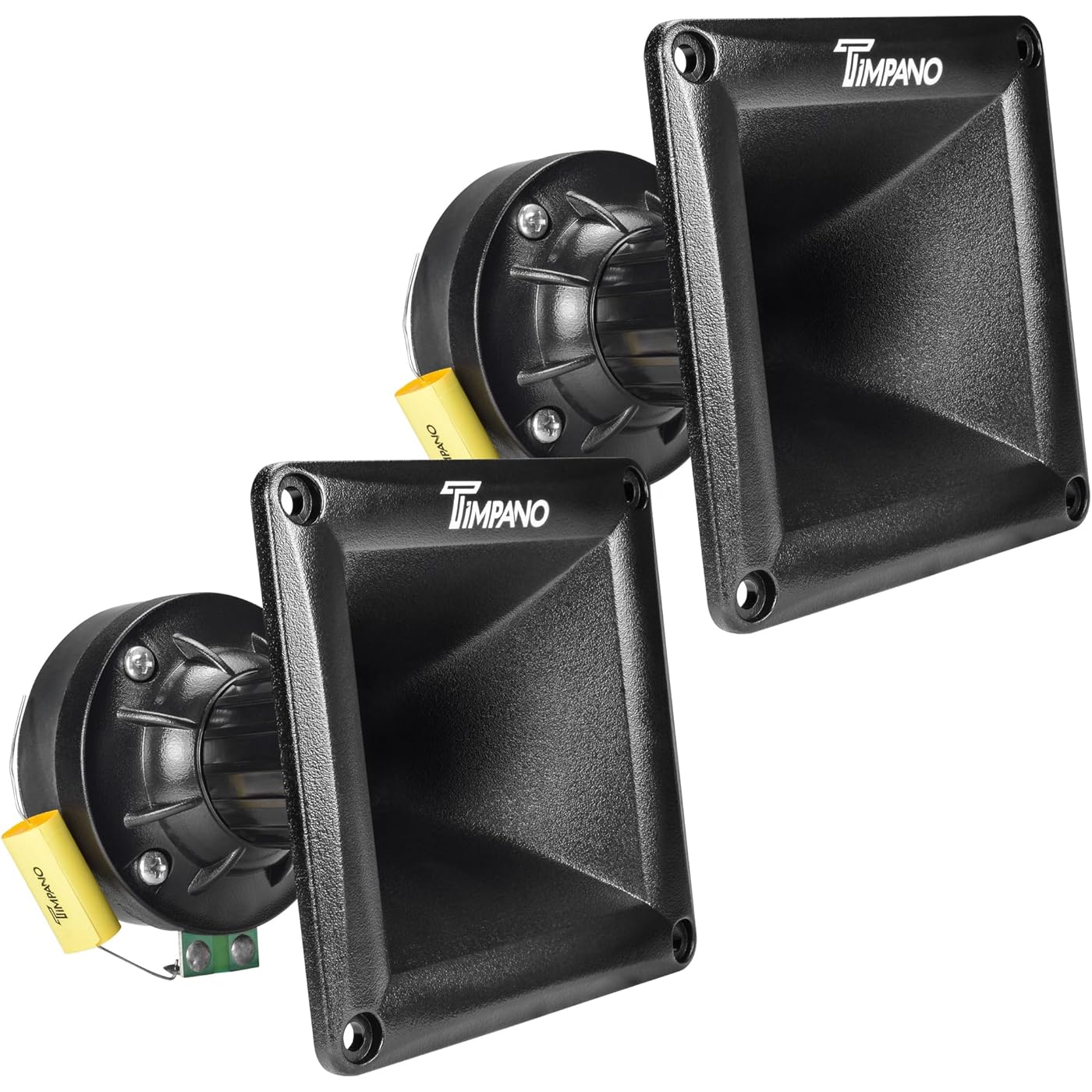

Timpano 2X TPT-DH175 Horn Drivers 500 Watts 1" Exit High Frequency Compression Driver with Black Horn 8 Ohm (Bundle 2 Horn Drivers)

Features

• The wide frequency range ranges from 1,300Hz to 19,000Hz, and the high sensitivity of 108 db makes it a very loud and efficient driver.
• Handles an impressive 500 Watts Max power ( PAIR ) and 150w RMS ( PAIR ), ensuring that it effortlessly complements your entire audio system. Capacitor included. 8 Ohm Voice Coil. 75w RMS each horn Driver
• Complete your pro audio system with the TPT-DH175. With its 1 voice coil, this driver maximizes loudness per watt, delivering crisp and clear high frequency range sound.
• Mounting Depth: 4.64. Extremely loud and clear highs with an amazing frequency response that can even play some mids. Shallow mounting depth for custom car audio door panels.
• This compression driver is engineered for high SPL environments and is a perfect match for horn speakers for car audio, custom builds, and pro audio setups requiring clear, high-output sound

Description

BUNDLE 2x HORN DRIVER - The Timpano TPT-DH175 is a 1″ phenolic dome compression driver specially designed to offer a smooth extended frequency response over a broad band, from mids to highs, with very high efficiency.Easy to install anywhere, even on car doors. In addition, the small diameter of the compression driver allows simple installation at the front. This horn driver can deliver space filling sound at extremely high SPL levels, a great choice for high output PA, home theater, and car audio systems.The wide frequency range ranges from 1,300Hz to 19,000Hz, and the high sensitivity of 108 db makes it a very loud and efficient driver.Handles an impressive 250 Watts Max power and 75w RMS, ensuring that it effortlessly complements your entire audio system. Capacitor included. 8 Ohm Voice Coil.Complete your pro audio system with the TPT-DH175. With its 1″ voice coil, this driver maximizes loudness per watt, delivering crisp and clear high frequency range sound.Mounting Depth: 4.64”. Extremely loud and clear highs with an amazing frequency response that can even play some mids. Shallow mounting depth for custom car audio door panels.Ideal for compact 2 or 3-way systems. The 4.5″ x 4.5″ horn TPT-HL11-25 produces a controlled 45° x 45° dispersion pattern to reduce unwanted reflections while still delivering room filling sound. As a replacement for pro audio cabinets, this high frequency horn driver has a common footprint.Specs:250 Watts Max Power75 Watts RMS PowerImpedance: 8 OhmSensitivity: 108 dBFrequency Response: 1.3 kHz – 19 kHz1″ Voice CoilPhenolic DiaphragmFerrite DriverRecommended High Pass Filter on TPT-SP4BT DSP Crossover1400 Hz under 125 Watts of Amplifier RMS Power with 18dB Slope1200 Hz under 75 Watts of Amplifier RMS Power with 12dB SlopeSizing:Mounting Depth: 4.64″ (117.8 mm)Mounting Cutout size: 3.50″ x 3.50″ + TerminalOverall size: 4.50″ Wide x 4.50″ Length x 4.92″ HeightWeight: 1.15 Lbs

Brand: Timpano

Speaker Maximum Output Power: 250 Watts

Frequency Response: 19000 Hz

Connectivity Technology: wired

Audio Output Mode: Stereo, Surround

Audio Output Mode: Stereo, Surround

Mounting Type: Surface Mount

Speaker Type: Horn Driver

Antenna Location: For Pro Audio

Color: Black

Is Waterproof: false

Warranty Type: Limited

Speaker Size: 1 Inches

Specific Uses For Product: Pro Audio, Car Audio, Home Theater

Speaker Maximum Output Power: 250 Watts

Frequency Response: 19000 Hz

Connectivity Technology: wired

Compatible Devices: Gaming Console, Home Theater, Tablet, Television, Laptop, MP3 Player, Karaoke Machine, Smartphone, Desktop, Projector

Brand: Timpano

Model Number: PAIR TPT-DH175

Model Name: PAIR TPT-DH175

Built-In Media: Compression Driver and Horn

Warranty Description: Limited warranty.

Number of Items: 2

Global Trade Identification Number: 51

Manufacturer: TIMPANO

Unit Count: 2.0 Count

Item Dimensions D x W x H: 4.64"D x 4.5"W x 4.5"H

Item Weight: 1.15 Pounds

Audio Driver Type: Dynamic Driver
