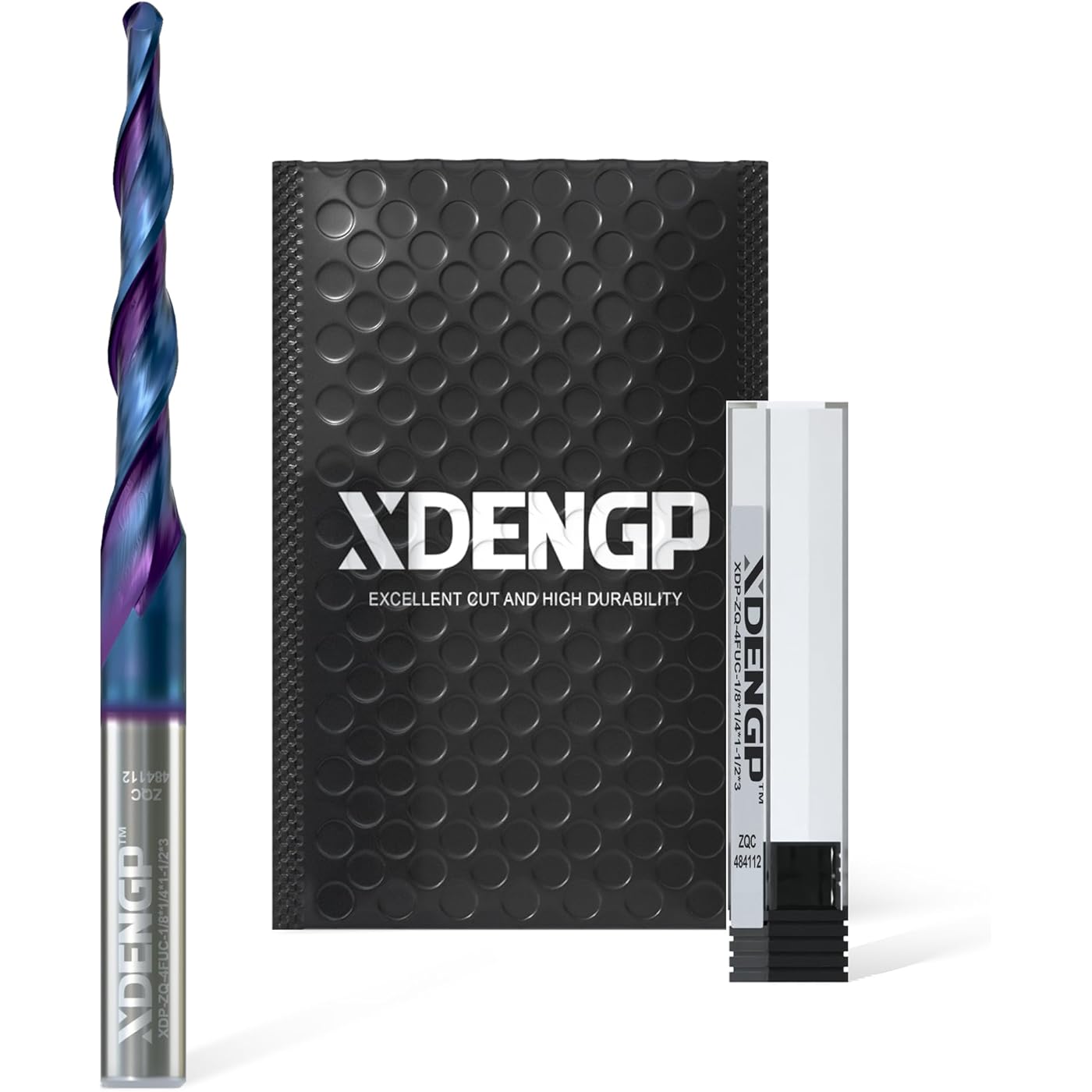

Spiral Tapered Ball Nose Spiral Router Bit for CNC, 2.4 Deg 1/8" Tip Dia, 4 Flute and 1-1/2 inch Cutting Length 1/4 inch Shank with NACO Coated Carbide End Mill for Wood 2D/3D Carving
Condition: New
Buy Now, Pay Later
As low as
$2
/ mo
Learn more
- – 4-month term
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
Extended holiday returns
FREE refund/replacement until Jan 31, 2026 Learn more
FREE refund/replacement until Jan 31, 2026 Learn more
This item's return window has been extended for the holiday season: FREE refund/replacement until Jan 31, 2026
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
Only 3 left in stock, order soon!
Arrives
Saturday, Dec 27
Style: Tapered Ball Nose
Pattern Name: 4 Flutes
Size: 1/8" Dia - 1-1/2" CL - 1/4" Shank
Features
- Size Description: Industrial grade Spiral Tapered Ball Nose Router Bit for CNC, (a)2.4Angle, (D) 1/8 inch Cutting Diameter, (R) 1/16 inch Radius, (B)1-1/2 inch Cutting Length, (d)1/4 inch Shank, (L)3 inch total length
- Signature Coating nACo: XDENGP Spiral Router Bits are coated with nACo, which has 1200C max service temperature, 0.4 coefficient of friction, 4500HV nano hardness.Brings you a different experience from other CNC spiral router bit
- For Use With: Ball nose cnc router bit can be used with handheld, table-mounted portable routers, and as CNC machine router bits. For cutting plywood, OAK, MDF, and any hardwood working and keep sharp after multiple uses
- Ball Nose End Mill: The spiral router bit is specially formulated carbide ensures extended lifespan. Designed for CNC applications requiring high feed rates and a clean finish. Enhanced bit body and chip removal groove design in the latest iteration facilitate chip removal and cutting
- Brand Assurance: XDENGP offers many ranges of industrial grade precision CNC tooling for industrial applications.XDENGP router bits for CNC machines provide superior smooth quality cuts everytime. 91% ultrafine tungsten carbide particles and 9% cobalt content design make the bit more wear-resistant.If you have any questions about the product, please contact us. Your problem will be resolved within 24 hours
Size: 1/8" Dia - 1-1/2" CL - 1/4" Shank
Material: Cobalt, Tungsten Carbide
Brand: XDENGP
Cutting Length: 1.5 Inches
Cut Type: Ball End
Product Dimensions : 1 x 1 x 1 inches; 1.45 ounces
Date First Available : May 20, 2024
Manufacturer : XDENGP
Best Sellers Rank: #83,210 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #39 in Spiral Router Bits
#39 in Spiral Router Bits:
Customer Reviews: 4.8 4.8 out of 5 stars 22 ratings
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Saturday, Dec 27
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- PayTomorrow Financing
- Financing through Apple Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Style: Tapered Ball Nose
Pattern Name: 2 Flutes
Size: 1/32" Dia - 1-1/2" CL - 1/4" Shank
Works as intended.
Reviewed in the United States on April 8, 2025 by Todd
I have 19 carves on this one bit and the results are still phenomenal. I carve both Cherry and Sapele. Anyone that carves cherry knows it can be horrible to clean up after a carve. With this bit, clean up only took a few minutes. I run 6 CNC machines, time is important. This bit dramatically reduced the clean up after a carving.
...
show more
Reviewed in the United States on October 29, 2024 by David P.
Style: Tapered Ball Nose
Pattern Name: 2 Flutes
Size: 1mm Dia - 1-1/4" CL - 1/4" Shank
The media could not be loaded. I was looking for a good bit to do some detail work after having snapped many inferior bits that just couldn't go the distance. I've had this bit for several months now and it has performed like a champ. It's till cutting quickly and cleanly in a variety of woods from soft pine to hard maple and walnut and I've had no issues and the bit is still sharp. I credit a lot of the resilience of this bit to the NACO coating which has been holding up great. I'm starting to see a bit of the coating coming off a the very tip of the bit but its minor so far. I'm very satisfied with the bit for its performance, reliability and affordability.
...
show more
Reviewed in the United States on September 24, 2024 by Sir Buys-a-Lot Sir Buys-a-Lot
Style: Tapered Ball Nose
Pattern Name: 4 Flutes
Size: 1/8" Dia - 1-1/2" CL - 1/4" Shank
I gave this cutter a quick test on my manual Bridgeport with some scrap hardwood I had laying around. Oak, Hickory and Cherry. I have some pattern making/mold projects planned for the future for casting up some parts and this taper End Mill will come in handy. It cuts well and clears chips just fine. It will also give the draft needed for the patterns. And it's nice that it comes in good ol' standard English sizes. So I don't have to convert anything from metric. I am looking forward to seeing how well the NACO coating holds up as I have not yet had any experience with that particular coating. All in all a fair deal for an end mill of this type. Oh, almost forgot. The shank is .0004 under nominal so it will chuck up un a collet, shrink or solid holder without issues.
...
show more
Reviewed in the United States on June 5, 2024 by Bill H.
I used this bit for a few passes over some maple stock that I was testing another bit from the same manufacturer with. It stayed sharp and performed as expected. I like that it has the bit specs laser etched on the shank. I don't know how long the coating will stand up, but it was still intact after the trial run I gave it. I don't have much else to say about this - it's working well and appears to be the quality I expect from a tool in this price range.
...
show more
Reviewed in the United States on June 14, 2024 by EKomenski
Style: Tapered Ball Nose
Pattern Name: 2 Flutes
Size: 1/32" Dia - 1-1/2" CL - 1/4" Shank
Narrow tip and gentle taper permits impressive detail, but it's still beefy enough to move through walnut at a reasonable clip without breaking (or deflecting noticeably) - 130ipm with a DOC between .02 & .04" was no trouble
Reviewed in the United States on July 18, 2024 by Rob R.
Style: Tapered Ball Nose
Pattern Name: 3 Flutes
Size: 1/16" Dia - 1-1/2" CL - 1/4" Shank
This ballnose bit from Xdengp has a 1/4" shank, 1/16" tip and is 3" long overall. The bit works well with detailed carvings on my CNC. Typically I like the longer length on bits, but I don't know that it was necessary on this one unless you are doing a very deep carve. It could probably be 1" shorter and still be a great bit, but this is a minor criticism.
...
show more
Reviewed in the United States on July 22, 2024 by dumgoat
This 2mm diameter tip tapered ball nose 2 fluke router bit with 1/4-inch shank works well carving wood. The bit has a NACO coating that should reduce heat and extend the life of the bit. The coating looks well applied. The tapered shape provides more rigidity than a 2mm ball nose bit with a 1/4-inch shank. This bit is an up-cut bit and clears chips well. The cutting edges are nicely polished, relief angles are slightly less polished. I consider this a specialty bit that has some advantages but also costs more.
...
show more
Reviewed in the United States on June 7, 2024 by paradug paradug
