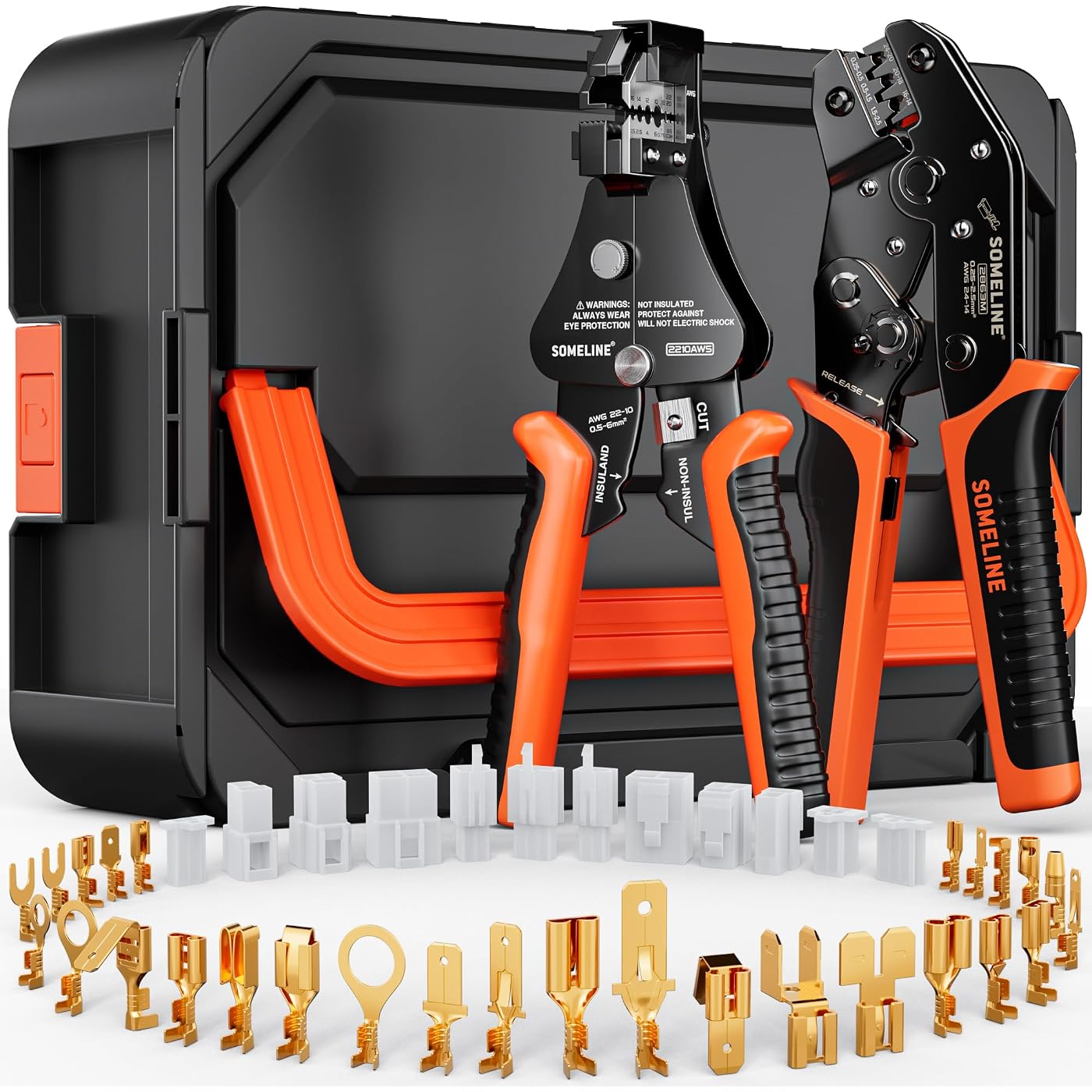

SOMELINE Spade Connector Crimping Tool Kit 24-14 AWG, 40 Types 2.8/4.8/6.3/7.8 mm Non-Insulated Spade Terminals and Terminal Housings - Open Barrel Crimping Tool, Ratchet Wire Crimper Tool
Condition: New
Buy Now, Pay Later
As low as
$8.00
/ mo
Learn more
- – 6-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
Only 8 left in stock, order soon!
Arrives
Sunday, Jul 19
Recently Viewed
Item Shape: 40 Types + 2 Tools (A Version)
Features
- Open Barrel Crimping Tool: The 24-14 AWG crimping pliers feature an efficient ratchet mechanism and professional crimping jaws. With adjustable crimping force and quick release function. Ergonomic non-slip handles
- Crimping Capability: The crimping tool is used to crimp 24-14 AWG non-insulated open terminals. The professional jaw design crimps the conductive area and the insulation layer at the same time to ensure both electrical performance and mechanical strength
- 40 Types Connector: including 2.8/4.8/6.3/7.8 mm spade, fork, ring, bullet, butt and quick disconnect terminals, covering the 24-14 AWGwire range. Made of high-quality copper, it has good conductivity, corrosion resistance and oxidation resistance, ensuring stable electrical connection
- Wide Application: Suitable for various wiring needs such as automobiles, motorcycles, household appliances, audio, industrial control equipment, etc
- Stackable Storage Case: Uniquely designed double-layer stackable storage case, easy to carry and organize, ensure the tools remain neat and easy to access, ideal for professional technicians and amateur DIY enthusiasts
Description
Take the hassle out of wiring projects with the SOMELINE Non-Insulated Terminal & Crimping Tool Kit (24–14 AWG). This complete kit includes everything you need for professional, long-lasting electrical connections—whether you’re fixing car wiring, upgrading boat electronics, installing speakers, or doing home electrical work. Quick-disconnect terminals are available in 2.8 mm, 4.8 mm, 6.3 mm, and 7.8 mm sizes to meet different power requirements, and additional options such as ring, spade, and bullet terminals are offered for secure screw connections, easy installation, and quick disconnect applications. 2.8 mm – Ideal for low-current signal and control wiring. 4.8 mm – Commonly used in small appliances and automotive lighting. 6.3 mm – The most popular size for general-purpose power connections in household appliances, HVAC systems, and vehicles. 7.8 mm – Designed for high-current applications such as water heaters, induction cooktops, industrial equipment, and heavy-duty automotive or marine power lines. Ring Terminals – Provide the most secure connection, commonly used in automotive, marine, and industrial power distribution where vibration resistance is critical. Spade Terminals – Easy to install or remove without completely removing the screw, ideal for household appliances, control panels, and switch connections. Bullet Terminals – Designed for quick connect and disconnect in tight spaces, widely used in automotive wiring harnesses, motorcycles, and consumer electronics.
Brand: SOMELINE
Color: Orange, Black
Item Weight: 1.66 Kilograms
Handle Material: Polypropylene(PP)+Thermoplastic Rubber(TPR)
Grip Type: Ergonomic
Brand: SOMELINE
Color: Orange, Black
Item Weight: 1.66 Kilograms
Handle Material: Polypropylene(PP)+Thermoplastic Rubber(TPR)
Grip Type: Ergonomic
Handle Type: Ergonomic
Manufacturer: SOMELINE
Size: 2.8 mm, 4.8 mm, 6.3 mm, 7.8 mm
Part Number: CHCP-40D
Item Weight: 3.65 pounds
Package Dimensions: 10.91 x 7.64 x 3.43 inches
Item model number: CHCP-40D
Material: Copper, Nylon PA66
Shape: 40 Types + 2 Tools (A Version)
Usage: Automotive, Marine, Home Electrical Work, Audio, Industrial Control, Boat Electronics, Speaker Installation
Included Components: Automatic Wire Stripper, Crimping Tool, Spade Connectors Kit
Batteries Included?: No
Batteries Required?: No
Date First Available: August 21, 2025
