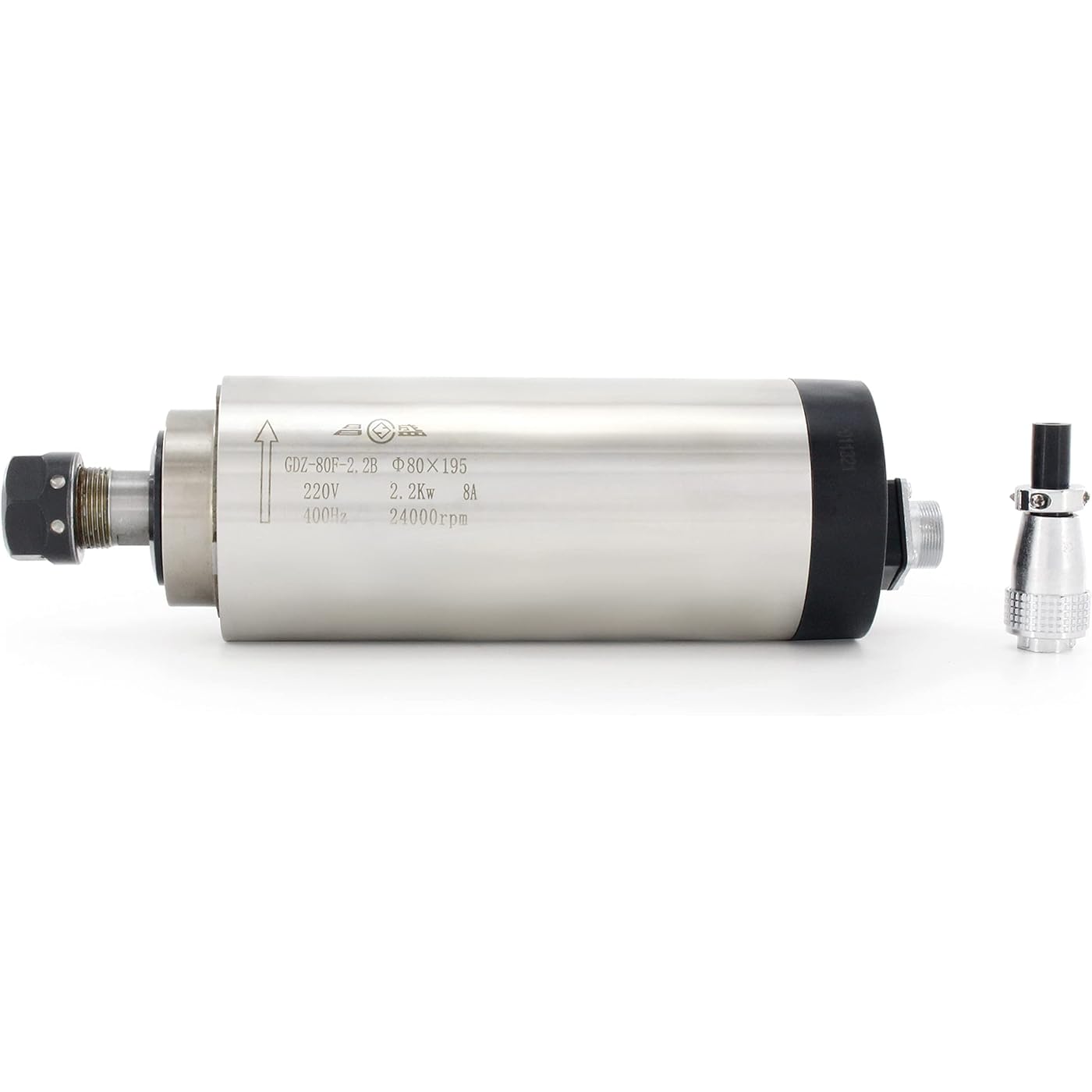

RATTMMOTOR CNC Spindle 2.2KW Air Cooled Spindle Motor 220V 80mm Motor ER20 Collet 3HP 24000RPM High Speed Spindle 8A 400Hz for CNC Router Engraver Milling Machine

  • Based on 5 reviews
Condition: New
Checking for the best price...
$167.00 Why this price?
Save $1,219.99 was $1,386.99

Buy Now, Pay Later

As low as $27.83 / mo
  • – 6-month term
  • – No impact on credit to apply
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout.

Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

FREE refund/replacement until Jan 31, 2026

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: 12 left in stock
Fulfilled by Amazon
Arrives Wednesday, Jun 3
Order within 11 hours and 41 minutes
Available payment plans shown during checkout
Protection Plan Protect Your Purchase
Checking for protection plans...

Recently Viewed

Features

  • How to Connect The Spindle MotorThe spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 is the ground wire, no wiring is required.
  • Basic Parameters- Diameter: 80 mm x Length: 195 mm, Power: 2.2KW, Voltage: 220VAC, Current: 8A, Frequency: 0-400Hz, Collet Size: ER20, Runout off: Less than 0.01mm, Precision Tapered Bore: Less than 0.005mm, Speed: 0-24000rpm (Please keep the speed of spindle rotation above 9000 rpm.)
  • Cooling Method- Good heat dissipation effect by adopting fan cooling method, without connecting to water pump and water pipe, it's more convenient and trouble-saving and can be used directly by connecting with the inverter.
  • Rotation Accuracy- The rotor has high precision because of precision steel ball retainer, and high temperature resistant grease lubrication method, all of which ensures the rotation accuracy and low noise of the spindle during high-speed grinding.
  • Material & Configure- The spindle has fine workmanship, 3 bearings, stainless steel body and dustproof design make the spindle more durable.
  • Main Application This spindle motor is mainly designed for CNC router machine and usually used with VFD Inverter, engraving materials such as wood, aluminum, glass, PVC industry ,ect.

Features

  • Basic Parameters- Diameter: 80 mm x Length: 195 mm, Power: 2.2KW, Voltage: 220VAC, Current: 8A, Frequency: 0-400Hz, Collet Size: ER20, Runout off: Less than 0.01mm, Precision Tapered Bore: Less than 0.005mm, Speed: 0-24000rpm (Please keep the speed of spindle rotation above 9000 rpm.)
  • Cooling Method- Good heat dissipation effect by adopting fan cooling method, without connecting to water pump and water pipe, it's more convenient and trouble-saving and can be used directly by connecting with the inverter.
  • Rotation Accuracy- The rotor has high precision because of precision steel ball retainer, and high temperature resistant grease lubrication method, all of which ensures the rotation accuracy and low noise of the spindle during high-speed grinding.
  • Material & Configure- The spindle has fine workmanship, 3 bearings, stainless steel body and dustproof design make the spindle more durable.
  • Main Application This spindle motor is mainly designed for CNC router machine and usually used with VFD Inverter, engraving materials such as wood, aluminum, glass, PVC industry ,ect.

Brand: RATTMMOTOR


Speed: 24000 RPM


Voltage: 220 Volts


Horsepower: 3 hp


Material: Iron


Is Discontinued By Manufacturer ‏ : ‎ No


Package Dimensions ‏ : ‎ 17.6 x 8.3 x 6.5 inches; 11.1 Pounds


Date First Available ‏ : ‎ May 25, 2017


Manufacturer ‏ : ‎ ChangSheng


Best Sellers Rank: #422,398 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #195 in Power Milling Machines


#195 in Power Milling Machines:


Customer Reviews: 3.9 3.9 out of 5 stars 5 ratings


Brand: RATTMMOTOR


Speed: 24000 RPM


Voltage: 220 Volts


Horsepower: 3 Horsepower


Product Dimensions: 3.15"W x 11.34"H


Brand: ‎RATTMMOTOR


Speed: ‎24000 RPM


Voltage: ‎220 Volts


Horsepower: ‎3 Horsepower


Product Dimensions: ‎3.15"W x 11.34"H


Material: ‎Iron


Item Weight: ‎4.42 Kilograms


Shaft Diameter: ‎1.1 Inches


Manufacturer: ‎ChangSheng


UPC: ‎785004503091


Wattage: ‎2200 watts


Part Number: ‎RTM-GDZ80F-2.2B


Item Weight: ‎9.72 pounds


Is Discontinued By Manufacturer: ‎No


Color: ‎2.2KW 220V


Power Source: ‎AC


Item Package Quantity: ‎1


Batteries Included?: ‎No


Batteries Required?: ‎No


Date First Available: May 25, 2017


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Wednesday, Jun 3

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • DO NOT BUY
I bought this as a backup almost a year ago. Today, the collet on my original spindle got stuck and became impossible to remove after running into a clamp. I thought, no big deal I'll just throw on the backup. I put it on, wouldn't run. I got an over-voltage error. Checked parameters on vfd, reset vfd and redid parameters, no change. Set up my backup vfd (a nice durapulse vfd) and this time the spindle would run, but only very slow and in reverse and smoked after SECONDS. Very hot to the touch. Checked and rechecked wiring, I wired it correctly. Checked for continuity between pins and BOOM, continuity between pin 2 and 3 on the spindle. Not on my wiring. I pulled the top of the spindle expecting some crappy wiring at the plug which would be an easy fix. Nope, it's further inside the spindle and it doesn't appear to be serviceable. I wasted HOURS messing with this only to find they sent me a $200 paperweight to begin with. I'm way past the return window because this was a backup and never meant to be in service unless it was an emergency... Well, that emergency just became much worse. I will be pursuing a refund still but I wanted to warn others to stay away from anything from RATTMMOTOR ... show more
Reviewed in the United States 🇺🇸 on April 6, 2021 by lori
    • great deal
bought on a whim to replace my failed water cooled laguna. drop in replacement, better than original
Reviewed in the United States 🇺🇸 on May 1, 2021 by Isaiah Baker
    • Very quiet. I was going to use a water-cooled unit, tried this instead. Excellent Choice.
A spindle has 3 wires labeled U,V, and W. The drawing on the page showed the numbers running (1) at the top, (2) on the left, and (3) on the right. The plug however had the numbers with (2) and (3) reversed. I connected it as shown, and during testing it went in reverse. If this happens to you, swap the wires for (2) and (3) and it will be fine. Other than that... I am VERY pleased with this spindle. The unit originally had a water-cooled system... and internally that motor leaked and rusted the spindle solid. For that reason, I wanted to try an air-cooled spindle. I had concerns about noise after hearing a router... but the construction here is MUCH different internally. It is almost as quiet as the water-cooled unit... and by this I mean, at full 25,000 RPM... you can be standing next to it have have a normal conversation. I had heat concerns... I let it run a full 30 minutes... it was still cool to the touch... perhaps a couple degrees warmer... but not by much. I don't have to worry about a fluid leak, algae, a pump going bad, or where to place a water tank. Just connect it and run the VFD... nice and simple. I like simple. Want to see my progress? Go to YouTube and search "ASKJERRY LAGUNA MILL". I would put a link here except it is not allowed. ... show more
Reviewed in the United States 🇺🇸 on January 13, 2023 by Jerry Rutherford
