Description

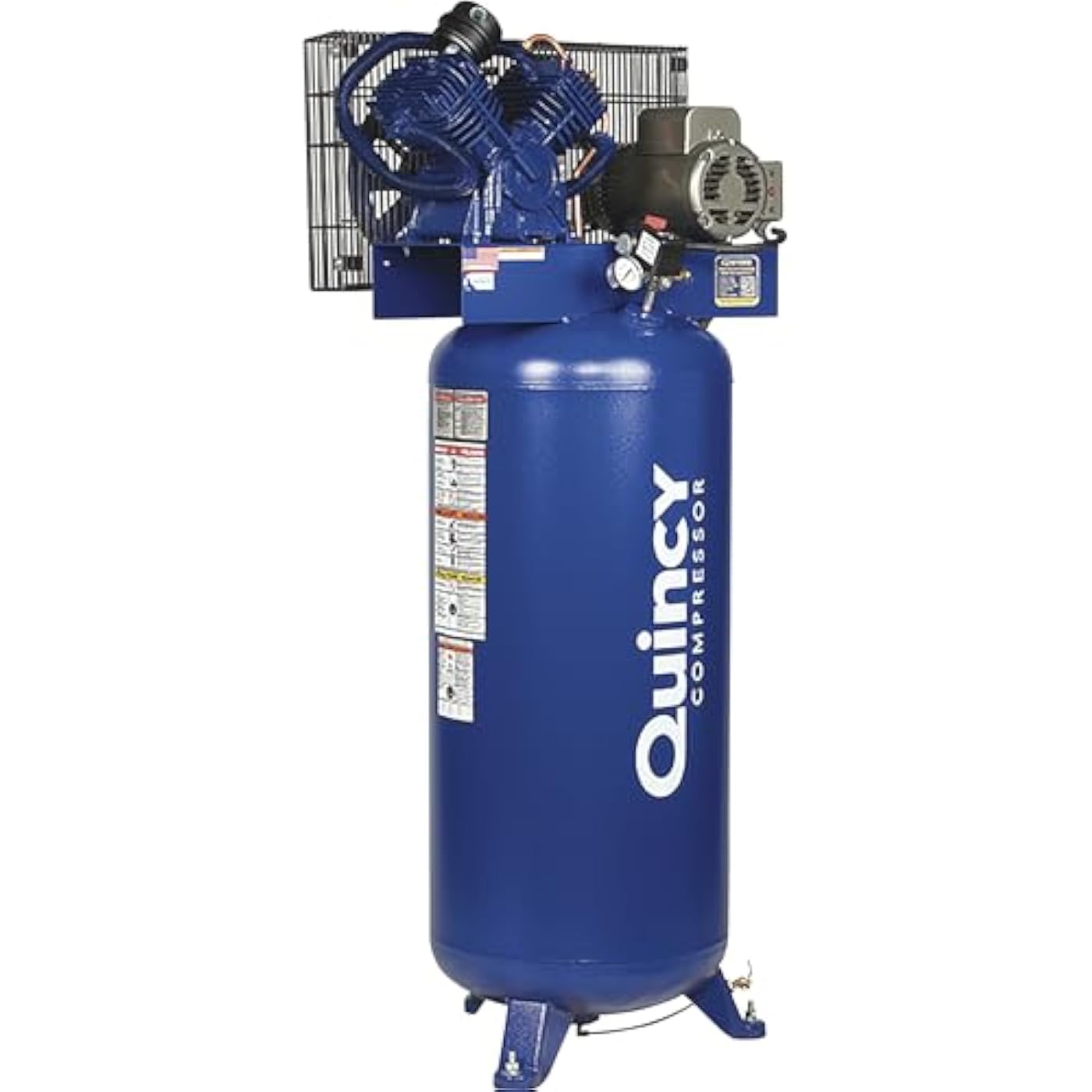

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. The compressor boasts a 30,000-hour pump life rating. One-year limited warranty without extended warranty kit purchase. Purchase an extended warranty kit Item 42626 at the same time on the same receipt as your Quincy air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years on-site parts and labor included. U.S.A. Air Tank Size gal. 60, CFM at 90 PSI 15.4, Oil Required Yes, Duty Cycle 100, HP 5, Volts 230, Noise Level dB 75, Regulator Included No, Amps 24, Pump Life hrs. 30,000, CFM at Max. PSI 15.2, Motor Phases Single, Dimensions L x W x H in. 29 x 21 x 64, Pump Material Cast iron, Motor RPM 3,450, Stage 2, Lubrication System Splash, Drain System Manual, Working Pressure PSI 140-175, Max. PSI 175, Tank Fill Time min. 6 1/2, Air Outlet Size in. 1/2. Industrial- duty US-made Baldor motor Capacitor start motor with built-in thermal overload Less than 5 PPM oil carry-over blow-by rating 145-175 working PSI Pump RPM 1310 4-cylinder pump design Heavy-duty, easy-to-reach, manual ball valve 2-stage belt drive pump with solid cast iron cylinder Motor RPM 3450 Finned tube intercooler for maximum cooling and increased valve life Aluminum head for heat dissipation Extra-capacity oil reservoir for low oil temperatures Cast iron fly wheel for energy efficiency and durability 100 duty cycle Splash lubricated UL & CSA approval on all electrical components ASME-coded pressure relief valves and tanks Additional charge for liftgate shipping option Ships in heavy-duty protective crate with oil in the pump Model Number: 2020029501. Size: 1. Age Group: Adult.
Manufacturer: Quincy
Part Number: 2020029501, 2V41C60VC
Item Weight: 475 pounds
Item model number: 2020029501
Size: 1
Style: Stationary
Power Source: Electric
Voltage: 230 Volts (AC)
Maximum Power: 5 Horsepower
Item Package Quantity: 1
Batteries Required?: No
Date First Available: August 8, 2008
