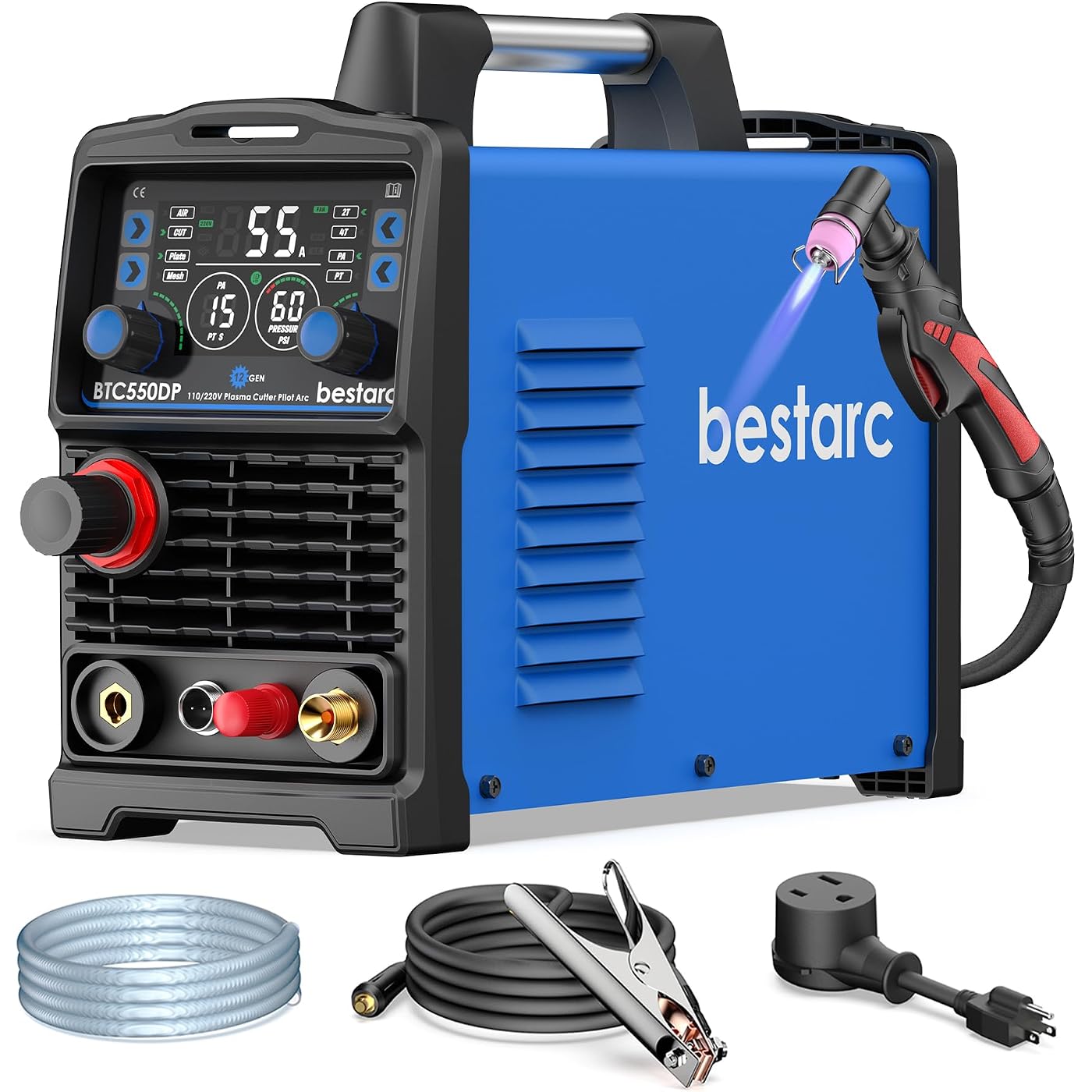

Bestarc Plasma Cutter Machine, 55Amps HF Pilot Arc, 110/220V Dual Voltage

Features

• [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance 1/2 clean cuts on Iron, Steel aluminum and copper with Inverter IGBT Technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 12mm@35A 110V 50PSI; 20mm@55A 220V 65PSI. Dry and compressed air is required. Power breaker up to 40A@110V 35A; Up to 30A@220V 55A.
• [Pilot Arc]: Bestarc plasma cutter with the pilot arc function. It is a high-frequency non-touch arc starting mode. The torch head does not need to touch the metal plate, making it effective on rusted, painted, or dirty metal surfaces. Adjustable PA function for extended pilot arc duration, reduced energy consumption in non-cutting work, reduced electrode burning, and extended consumables cutting life.
• [Air Sensor Technology]: The air sensor built in machine displays air pressure on front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). Air filter is installed in the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 65 PSI, with a flow rate of 250 liters per minute. Note: The compressor needs to be purchased separately.
• [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.
• [2T/4T/PA/PT Function]: Post time adjustable from 315s to cool the torch. Adjust the cooling time of the torch head to extend the service life of consumables. We recommend a cooling time of 4-8 seconds. The PA function allows pilot arc timing adjustment up to 15s; longer times are ideal for mesh cutting, shorter times help extend consumable life. 2T/4T automatic cutting release your finger. 2T is a semi-automatic cutting control, and 4T is an automatic cutting control.

Description

BTC550DP ULTRA BTC500DP PRO BTC500DP 5GEN PRO BTC500DP 7GEN PRO BTC500DP 8GEN BTC500DP 10GEN BTC800DP 9GEN

Manufacturer: ‎bestarc

Part Number: ‎BTC500DP-12GEN-1122

Item Weight: ‎20.4 pounds

Product Dimensions: ‎14.17 x 6.14 x 11.02 inches

Item model number: ‎BTC500DP-12GEN-1122

Size: ‎55A Pilot Arc

Color: ‎Blue

Style: ‎BTC550DP Pilot Arc

Material: ‎ABS, iron, Electronic

Power Source: ‎ac

Voltage: ‎110220 volts

Wattage: ‎12000 watts

Item Package Quantity: ‎1

Included Components: ‎20mm Max cutting thickness @220V 65PSI, Built-in Regulator, Air sensor, Pilot Arc Plasma cutting torch, Powerful performance, Set up within 1 min, Easy to use

Date First Available: July 20, 2025
