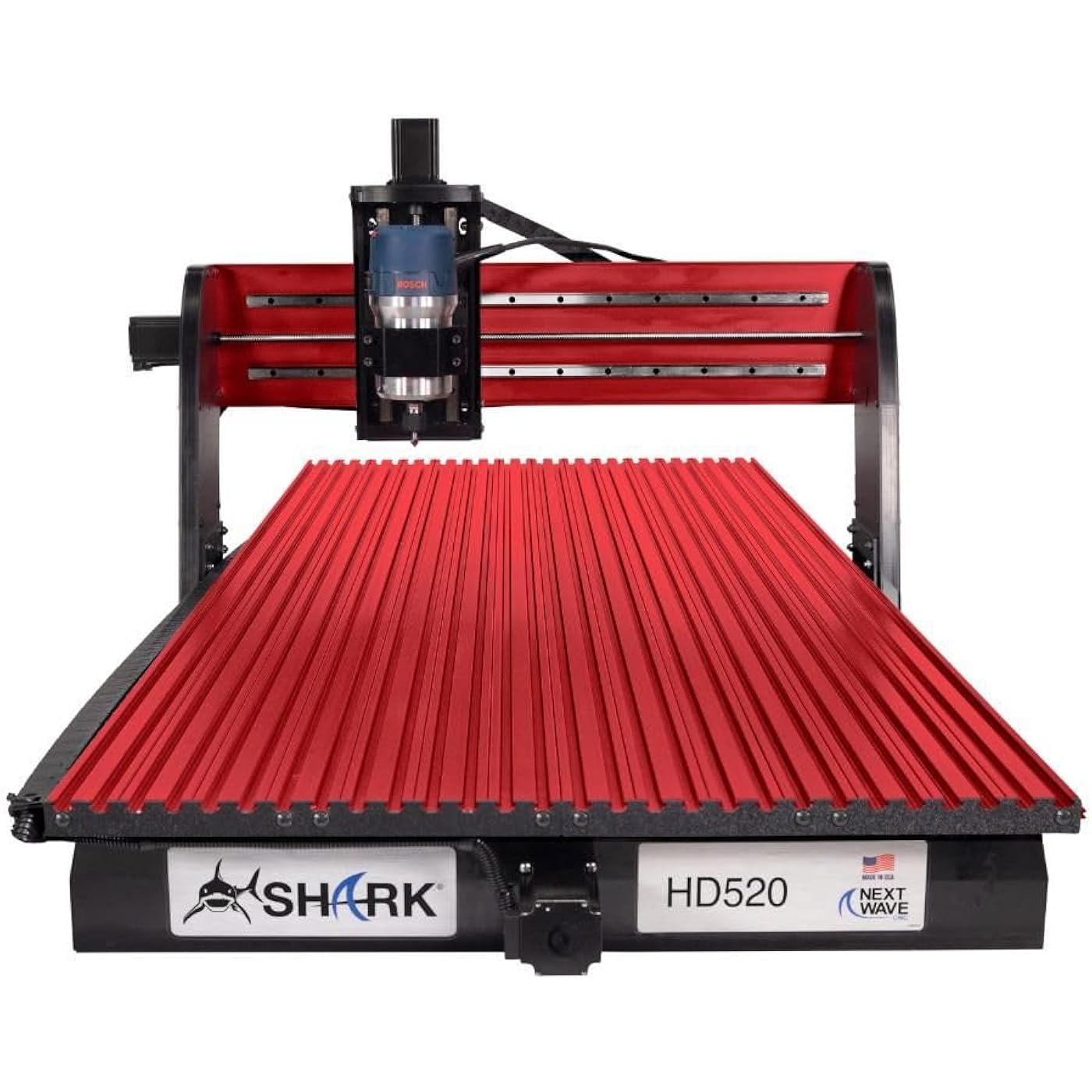

Next Wave CNC HD520 25" x 50" x 7" CNC Routing/Engraving/Laser on Wood/Acrylic/Non-Ferrous Metal

Features

• Table dimensions: 28 x 63. XYZ travel: 25 x 50 x 7. Overall dimensions: 36-1/4 W x 63 L x 24-1/2 H.
• Color Touch Screen pendant controller system. Router/Spindle on/off is controlled by the software and machine controller. Built to handle larger 2.25 HP routers with 3.5 barrel diameter like DW 610, 616, 618, PC 890 Series, B 1617 or 1618 (router sold separately).
• Built with industrial-grade components, the SHARK HD520 also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails, and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis. Interlocking slotted rigid aluminum table allows virtually unlimited clamp positioning
• The latest edition of Vectric Vcarve Pro design software $349 Value now incorporating Cut 3D functionality and Vector Art 3D Sampler Pack. Ready2Control Software to control your machine with a PC if desired. Also, Virtual Zero Unlimited, $149 value, this patented Next Wave exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. (Requires a PC computer with USB 2.0 port (not included))
• 2 hold down clamps. Carbide V Bit. Made in USA. 2 Year Warranty. USA Based Technical Support.

Description

The SHARK HD520 CNC router features a 25” x 50” x 7” cutting area, ideal for both home shops and production environments. It comes ready to use with Vectric VCarve Desktop software, a color pendant controller, two hold-down clamps, a carbide V-bit, and unique Virtual Zero Unlimited software. With a 28” x 63” table and an aluminum router mount for 3.5” barrel routers or a water-cooled spindle, the HD520 also has sturdy linear gantry rails. It can be controlled via a pendant or a computer, making it suitable for projects like plaques, signs, ornamental boxes, and precision parts from wood, Non-Ferrous Metals, or plastics. This versatile machine enhances woodworking capabilities with 3D carving functionality and includes a model library for creating detailed relief carvings, inlays, and engravings. Suitable for all skill levels, the HD520 can be used for custom parts, joinery, and decorative projects. Control options include: 1. Using Vectric VCarve Pro software, create your project and transfer it to a USB drive for direct use with the pendant's touch screen interface. 2. Run the HD520 from a computer with the Ready2Control program, allowing interactive control and enabling the Virtual Zero Unlimited feature for design adjustments. The Shark HD520 is compatible with a range of materials and Next Wave CNC's extensive accessories, such as spindles, lasers, a 4th axis, and probes. Made in the USA, it also includes US based technical support.

Brand: Next Wave

Power Source: ac

Voltage: 120 Volts

UPC:

Manufacturer: ‎Next Wave CNC

Item Weight: ‎245 pounds

Package Dimensions: ‎74 x 40 x 22 inches

Item model number: ‎Shark HD520

Color: ‎Red

Power Source: ‎ac

Voltage: ‎120 Volts

Included Components: ‎Comes as a Combo Set

Batteries Required?: ‎No

Date First Available: March 11, 2025
