Set name: NX4G

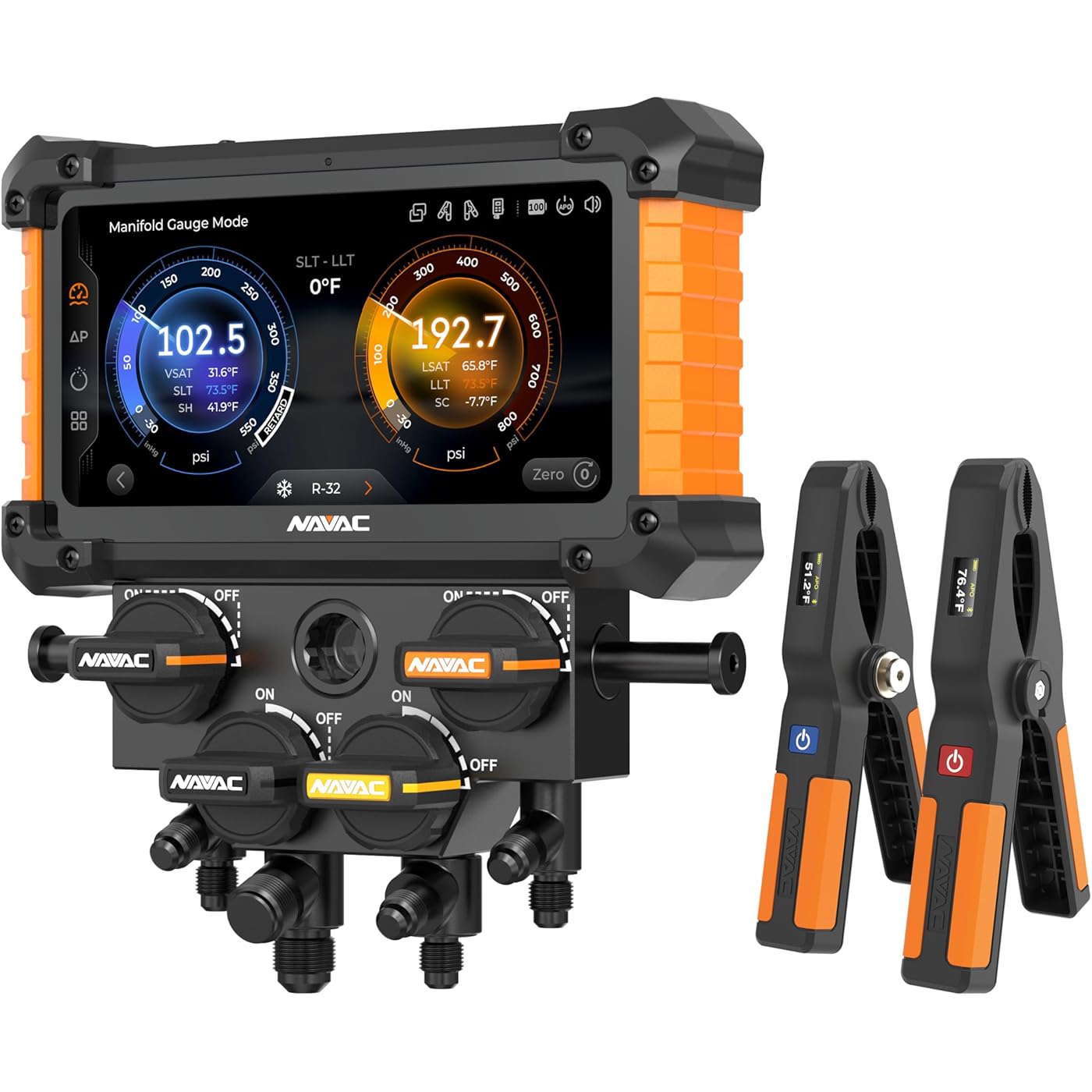

Features
- 4-VALVE CONFIGURATION DEDICATED PORTS FOR SUCTION, LIQUID, RECOVERY AND EVACUATION: Four dedicated 1/4 in SAE ports: one for evacuation, three for suction line, liquid line, and refrigerant recovery/charging. Hook up hoses once and handle diagnostics, charging, and evacuation without reconnecting purpose-assigned ports eliminate valve-switching between tasks on complex service calls.
- 5.5 IN HD COLOR TOUCHSCREEN 3 OPERATION MODES: Highly responsive IPS touchscreen with aviation-inspired UI across four themes including Daylight Mode for direct sunlight. Covers Manifold Gauge Mode with superheat/subcooling display, Leak Test Mode, and Evacuation Mode with decay test all touchscreen-navigated for faster diagnostics.
- BLUETOOTH HVAC GAUGE 260 FT RANGE, WIRELESS TEMP CLAMPS INCLUDED: Pairs wirelessly with included NST1 and NST2 Bluetooth temperature clamps up to 260 ft. Compatible with NAVAC NMV1S micron vacuum gauge (sold separately; included in NX4GV). Integrates with myNAVAC App and MeasureQuick App for remote monitoring, data logging, and field reporting.
- 100+ REFRIGERANTS A2L COMPATIBLE, APP-UPDATABLE | CLASS 0.4 ACCURACY, IP54 RATED: Supports R22, R410A, R32, R454B, R1234yf, R290, R600a, and 90+ more. A2L compatible, firmware updatable via myNAVAC App. Class 0.4 digital precision at up to 1087 psi. Aluminum body with shock-absorbing corners, rubber housing, IP54 dust and splash resistance, and 360-degree swivel hose ports.
- 3000mAh TYPE-C BATTERY, 8100 HR RUN TIME: Includes NX4G gauge, NST1 and NST2 Bluetooth temp clamps, Type-C charging cable, and carry case with folding hook. Rechargeable 3000mAh lithium battery, 8 to 100 hr run time. Four 1/4 in SAE ports.
Brand: NAVAC
Material: Aluminum, Rubber
Item dimensions L x W x H: 8.11 x 2.88 x 8.5 inches
Item Weight: 4.18 Pounds
Number of Items: 1
Brand Name: NAVAC
Part Number: NX4G
Warranty Description: 2 year manufacturer
UPC: 811245035890
Manufacturer: NAVAC
Set Name: NX4G
Model: NX4G
Unit Count: 1.0 Count
Included Components: NST1/NST2 Bluetooth temp clamps, Type-C cable, carry case
Material Type: Aluminum, Rubber
Thread Style: Unc
Item Dimensions: 8.11 x 2.88 x 8.5 inches
Item Weight: 4.18 Pounds
