Mssoomm 130W 130watt Co2 Laser Tube Length 1650mm Dia 80mm with Metal Head 10000hr Service Life for CO2 Laser Cutter Engraver and Cutting Engraving Machine
Buy Now, Pay Later
- – Up to 36-month term if approved
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
This item is eligible for return within 30 days of receipt
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
Size: 130W 1650mm
Features

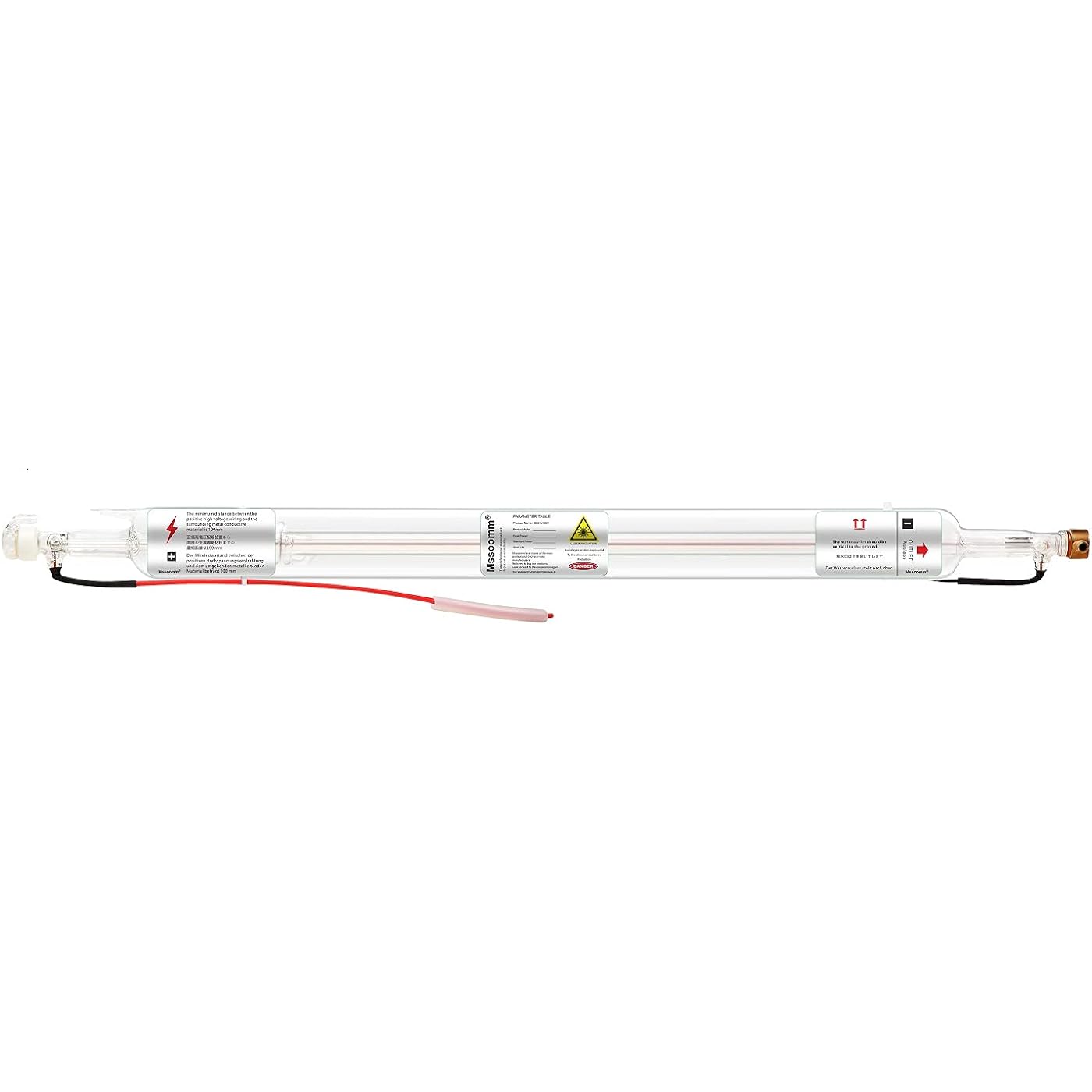

- REPLACEMENT DETAILS: This CO2 laser tube Power: 130w /watt, Outer Diameter: 80mm, Length: 1650mm, universal for AC 110V and 220V, you can get more details from the 2nd image. The laser tube adopts inner discharge tube coated with nano gold catalyst, power is improved, and service life can get 10000hr
- TEM00 MODE: The output laser is the TEM00 mode, which has high spot concentration, high energy density as well as good and stable spot, making laser machine with better performance
- METAL HEAD: With metal head, it is not easy to crack like the glass head laser tube, make service life longer
Description
Specifications:Brand: MssoommPower: 130W Length: 1650mm ±30mmTube Diameter: 80mmInstallation Instructions 1. Determine the positive and negative poles of the laser tube (the end of the spiral glass tube inside the tube is positive and the light exit is negative).2. The original positive and negative wires of the machine can be connected to the corresponding joints of the laser tube, and the insulation (mainly the positive high-pressure end) need to be sealed with a high-pressure tape or 704 silicon rubber.3. Insert the inlet and the outlet water pipe into the water , usually the positive high-pressure line is the inlet, light outlet is the outlet, pay attention to the low into the high ( otherwise it is easy to cause cracking, burst pipe because the water is not filled ).4. Adjust the optical path with the laser and test switch on the machine. The final target is to make the laser point enter from the middle of the entrance hole of the laser head, and then adjust the vertical optical path.5. When the light path is adjusted, you can cut or use engraving, according to the actual situation to control the power output.Tips & Warning1. You must check whether the water circulation cycle is normal and no bubbles before each use.2. The cooling water should have at least 20 liters, water temperature under 86℉ or 30℃, change water every 2 weeks.3. Please keep the high voltage electrode dry and clean, and keep it away from the metal to avoid damage to the main board.4. The laser tube is fragile. Avoid local stress when installing and using.5.The color of the laser from new tube or with sufficient power is purple or pink. The beam is thick and strong. When the power of the laser tube decreases, the beam is thin and the color is white.
Package Dimensions: 70.9 x 13.3 x 11.9 inches
Item Weight: 16.96 pounds
Manufacturer: Mssoomm
Date First Available: June 23, 2020
