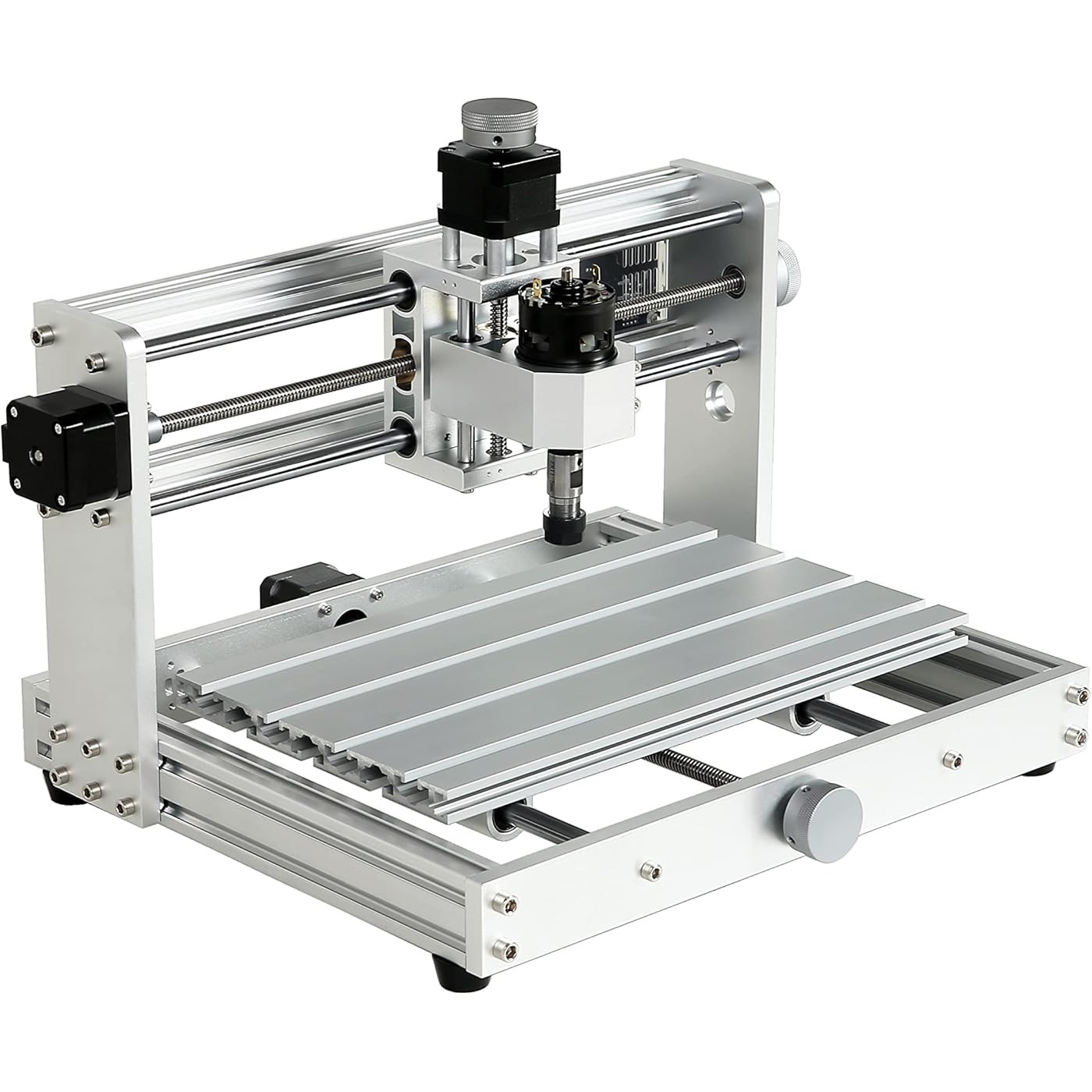

Mostics, CNC 3018 Pro Engraving Machine, CNC Router,3 Axis CNC Router Machine,Mini Milling Machine, Diy CNC Engraver 3018 Pro

Features

• This machine is sold directly by the manufacturer, and the price is compressed to a minimum while ensuring quality.The Z-axis Part is already assembled, the rest of the machine has to be assembled by you.
• The entire frame is made of metal, which makes the machine stronger and more stable.
• The entire Z-axis is made of metal, with two screws to lock the spindle motor, making it more stable in operation.
• The XYZ-axis limit switch hole and emergency switch hole are reserved for later upgrade of the machine.
• The whole machine is guaranteed for 2 years and we have a professional and prompt after-sales service. We can help with simple STL drawings free of charge, please contact us for data if required.

Description

【NOTE】 Following materials can be cut or engraved with our machine, others need testing. [Non-metal] paper, wood, bamboo, leather, etc. [metal] copper, aluminum and other soft metal Cutters: can cut 0.1mm-2mm per time, for copper, aluminum and other soft metal, plastic, wood, acrylic, pvc, pcb, etc; Specifications : Machine frame: All metal(Aluminium Alloy,Copper,Stainless steel) Software: GRBL 1.1.7 control systems Supported System: Windows XP / Win 7 / Win 8 / Win 10 Effective Engraving Area: 300 x 180 x 45 mm Frame Size: 420 x 355 x 280 mm Spindle: 775 motor, 24V, 120W,10000 RPM; Stepper Motor: 1.3A, 12V, 0.25 Nm torque (2.2 in lb). Drill bits: 5 pcs router bits, tip 0.1mm, 30 degrees, diameter 3.175mm Clamps: 4 pcs, Hold the thickness of 0-30mm, size: 50 20 3 (length width thick), the inner slot width 6mm Products include: 1 x CNC 3018 PRO DIY Router Kit(include 1x775 spindle) 1 x mainboard 1 x USB cable 1 x 24V5A Power Supply 1 x Extension Rod with ER11 Collet 3.175mm 4 x Plate Clamp 5 x CNC Router Bits 7 x Wenches 4 x Rubber Foot N x Screws and Nuts 1 x U disk (free software, user manual, learning video) 1 x User Manual

Manufacturer: ‎Mosticsmaker

Item Weight: ‎15.4 pounds

Package Dimensions: ‎17.49 x 9.81 x 7.72 inches

Item model number: ‎CNC 3018 PRO

Power Source: ‎dc

Included Components: ‎CNC 3018 PRO Kit

Batteries Included?: ‎No

Batteries Required?: ‎No

Date First Available: March 15, 2023
