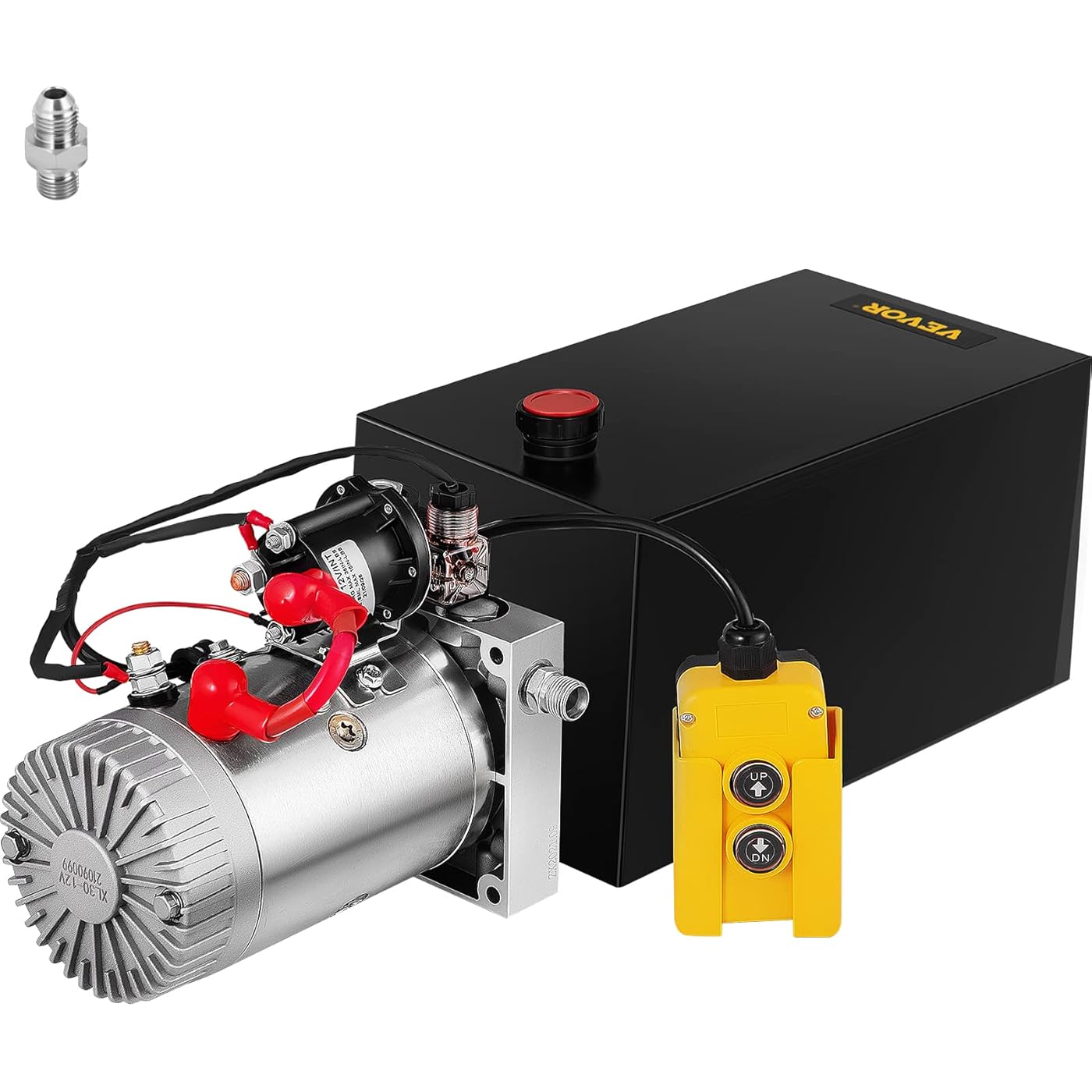

Mophorn Hydraulic Pump, 10 Quart Hydraulic Power Unit, Single Acting Hydraulic Pump, 12V DC Hydraulic Pump (Steel Reservoir, Single Acting, 3200 PSI) w/SAE#6 Connector for Dump Trailer Car Lifting
Condition: New
Checking for product changes
Buy Now, Pay Later
As low as
$36.17
/ mo
Learn more
- – 6-month term
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
This item is eligible for return within 30 days of receipt
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
Only 1 left in stock, order soon!
Arrives
Tuesday, Jul 22
Recently Viewed
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 10 Quart
Features
- HYDRULIC PUMP SINGLE ACTING - This electric hydraulic pump is the perfect single-acting replacement pump for 12V DC remotely controlled hydraulic systems. Adopted durable materials, the hydraulic pump can resist corrosion and weariness, with high strength and hardness, to ensure its longer lifespans.
- POWER UNIT SPECIFICATIONS- The pump power unit kit features single-acting functions, 10-quart metal reservoir; standard duty 12V DC motor; SAE # 6 Port Connector; 3200 PSI Max relief setting on A port and 1500 PS Max on B port; 15ft remote pendant for control.
- QUICK LIFTING & LOWERING- The hydraulic dump kits are built to start quickly and reliably. The positive and negative ports need to connect with the battery correctly to delivers quick oil output. With single-acting power to lifting-up and gravity to lowering-down, it tackles massive works with high efficiency.
- 15FT CONTROLER EASY TO USE- This dump trailer hydraulic pump is equipped with a 10qt metal tank, solid enough to use in different hydraulic sites, mounted both in vertical/ horizontal. We offer an additional SAE#6 connector for your replacement. The 15ft up-down control pendant can be used for a long distance.
- WIDE RANGE APPLICATION- These reliable hydraulic powerlifting kits are used in applications where extending a hydraulic cylinder is needed. It suits truck tailgate lift, scissor lift, dump trailer, lifts truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Is Discontinued By Manufacturer : No
Product Dimensions : 21.65 x 11.02 x 11.81 inches; 31 Pounds
Item model number : Pompe Hydraulique 12V 10L
Date First Available : December 18, 2017
Manufacturer : VEVOR
Country of Origin : China
Best Sellers Rank: #36,566 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #15 in Hydraulic Power Units
#15 in Hydraulic Power Units:
Customer Reviews: 4.4 4.4 out of 5 stars 283 ratings
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Tuesday, Jul 22
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- PayTomorrow Financing
- Financing through Apple Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 4 Quart Single
The unit does not have a #6 an fitting on it. It is actually take a #12 Female DIN24 fitting to screw onto adapter in unit Napa numbers for 3/8 hose Straight G25645-0612 45* G25650-0612 or 90* G25655-0612 Hope this helps someone
Reviewed in the United States on October 5, 2023 by marty huntley
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 10 Quart
The media could not be loaded. Needed an adapter in order to hook this pump up the high pressure hose. You need a conversion from metric to British standard. Once everything was hooked up it seemed to work just great. Plug and play for the most part. You will need all 10 quarts.
Reviewed in the United States on July 24, 2023 by Anthony Anthony
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 8 Quart
First things first, the listing says that it has an SAE #6 output port. What it means is it has a #6 SAE ORB (O-ring boss) output. The confusing part is that there's a #6 ORB male to some sort of female adapter installed in the unit when you get it. Here's what you need to do. Determine what your hydraulic cylinder receives. If you're replacing an old pump, just determine what fitting size the hose you have is. Search online for a combination of adapters/hoses that will let your current hydraulic piston connect to #6 SAE ORB. Also, know that the threads on the unit aren't exactly correct for #6 SAE ORB. It's a tight fit. Don't force it, work it back and forth. If you're building a system from scratch, you'll note that there are two ports on your hydraulic cylinder, and only one on the pump. That's okay. You need to order a breather for the port at the working end of the cylinder (where the shaft comes out of). Just figure out what thread that port is and look for a breather that fits that thread. The reason is that in a single action hydraulic circuit, we rely on gravity to retract the piston. Since we don't want the piston to get full of grit and ruin the seal, we install a breather on the port nearest the extending shaft. Some people have posted comments saying that the implement raises just fine, but falls at free fall. That's down to one of two things. If you only raise the dump bed (or whatever thing) a little bit, you've got a hydraulic piston under the greatest amount of force that it encounters. If you raise it six inches and then lower it, it'll slam down. The piston does most of the work at the beginning for the process and at the end. Also, since this pump is single acting, it relies on bubbles in the hydraulic fluid to prime the cylinder. Each time you raise and lower the implement, more air is driven out in the form of bubbles. So the first time you raise the bed (or whatever) it's got a lot of air in it and will lower quite a lot faster. Just extend and release, extend and release a bunch of times. Also there's no wiring diagram, so just look online for KTI hydraulics wiring, because this unit is a cheap copy of theirs. In fact, KTI has all sorts of drawings that you can use for this company's units. The question is, is this one half the cost because hydraulic pumps are very cheap to make, or because a hydraulic pump that lasts for one year is cheap to make. Time will tell.
...
show more
Reviewed in the United States on June 9, 2019 by Patrick M. Burke
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 10 Quart
The media could not be loaded. Arrived packaged well with no shipping damage. Simple install. Battery positive connects to the large solenoid post (see photo, red cable), battery negative connects to the large post on the backend of the motor (see photo, black cable). The fitting adapter that came with replaces the installed fitting, it fits into the pump outlet and accepts a -6 JIC Female swivel. The pressure relief valve on this one ( the pressure setting screw is the lower one) was fully out and required loosening the lock nut and a metric Allen wrench to turn it in, I needed to turn it completely in to the stop to achieve full pressure and then tightened the lock nut and reinstalled the cap nut for the adjustment screw. The upper screw is for setting the flow allowed when the lowering solenoid is active (this is used to adjust how fast the hydraulic fluid is allowed to return to the reservoir and requires the same metric Allen wrench, turning it in slows the flow). The switch pendant work fine, I will be installing a weather proof connector ito the side of the box to allow easier access with the box closed and locked. So far I have loaded the dump bed with 5 large loads in excess of 8000 lbs and the pump unit had me issues supplying enough flow and pressure to lift it quickly and smoothly. My system has a 3.25 inch cylinder (see the video). At max pressure had no leaks or seepage at the pump unit. I did add a fitting to the tank to accept a 3/8 inch rubber line from the dead end of the cylinder but a simple breather/filter would also work just fine.
...
show more
Reviewed in the United States on October 4, 2021 by Jess H. Jess H.
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 8 Quart
We used this unit to do a hydraulic steering system on our race truck as a power steering pump would not fit with our bbc on a front motor plate. Since we run 2 12 bolt batteries in parallel, power draw would be no issue
Reviewed in the United States on June 18, 2023 by Tim Kuhlman
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 4 Quart Single
We used this on a BraunAbility wheelchair lift on a shuttle bus. Had lots of problems with original wiring on bus. This unit is prewired. Simple and straightforward. Need better product operation instructions
Reviewed in the United States on June 27, 2023 by Sharon McLellan
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 6 Quart
Can’t say much about the pump or electric motor. I repaired my old one before I received the new one. Might be years before I ever need to use it. It’s always a good feeling to have a backup. Even better when it’s psid for
Reviewed in the United States on December 23, 2022 by Jay Moon
Style: Single Acting
Pattern Name: Trailer Pump
Size Name: 13 Quart
Great pump. Easy install Except for the goofy fitting they send you. Went to the hydraulic store got the right fitting for 8$ and everything was good. Don't try to do a weekend install unless you have the fitting ahead of time.
Reviewed in the United States on March 9, 2023 by John McAfee
