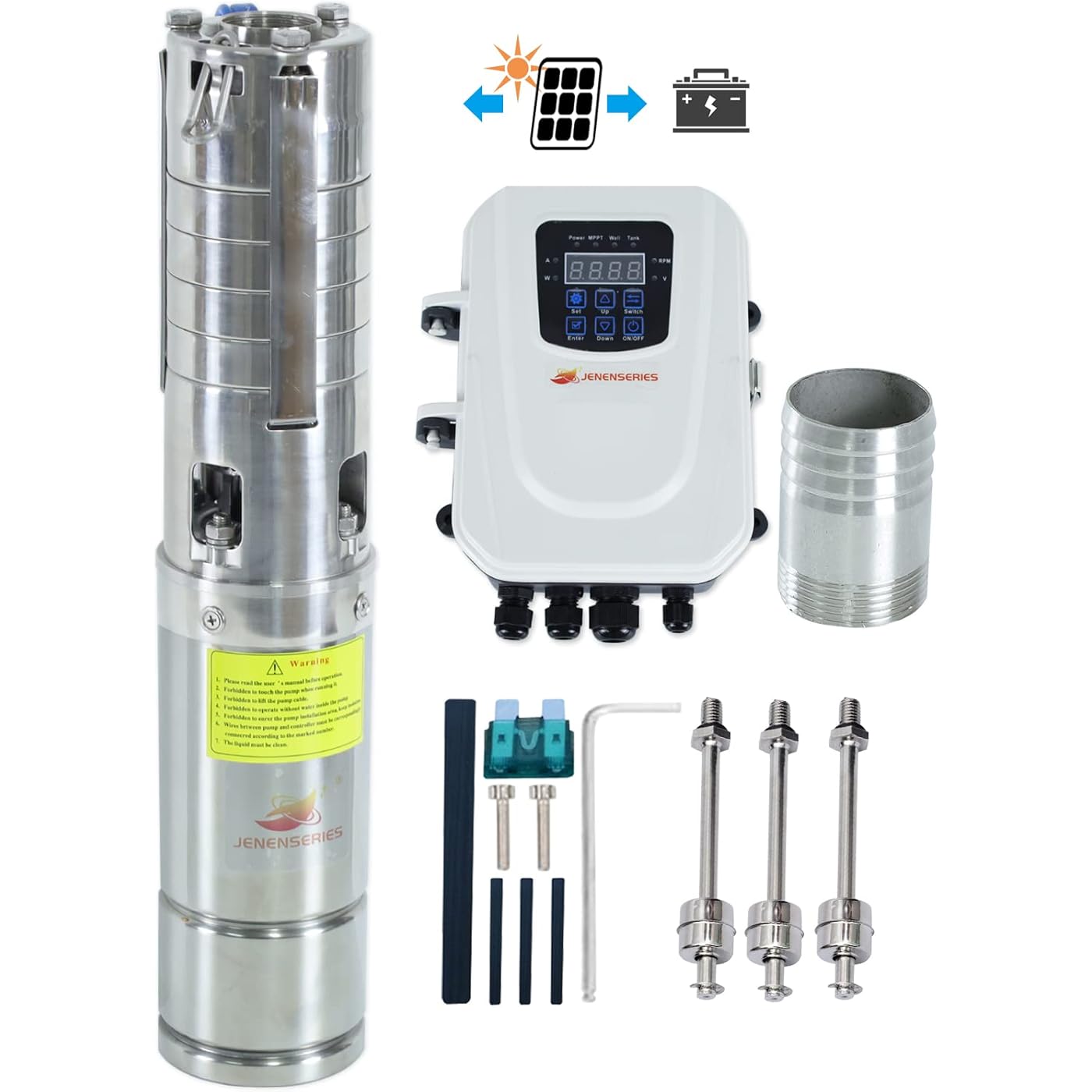

JENENSERIES Pump 750W DC 48V Solar Water Pumps, 4 inch Stainless deep well impeller pumps with max head 40m, 30.7GPM Flow and MPPT charge controller float switch kits for home or farm
Condition: New
Buy Now, Pay Later
As low as
/ mo
Learn more
- – Up to 36-month term if approved
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
This item is eligible for return within 30 days of receipt
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
11 left in stock
Arrives
Friday, Sep 26
Recently Viewed
Size: 750W + charge controller
Features
- [Specification]: JENENSERIES Solar Water Pump 48V DC,4 Inch Dia,9.8ft extension cable, Max head 40m(131ft),7m3/h (30.7GPM)Flow, PV open circuit voltage 42-100V with MPPT controller for farm, Garden, home, pool, Industrial
- [High-quality controller]: The solar water pump controller utilizing MPPT technology to ensure maximum flow is delivered under all light conditions. At the same time, it can also charge the battery and store excess solar energy in the battery. It comes with LED lights and LCD display so you can check the working status of the pump.
- [Intelligent Water Shortage Sensers]: This solar water pump has an intelligent water shortage sensor, so it has an intelligent water shortage protection function. When there is no water in the well, the pump will automatically stop working.
- [Pump Motor]:The solar pump use NSK bearing with permanent magnet brushless synchronous motor. So the pump has sufficient power and high efficiency.
- [Make full use of energy]: 304 stainless steel deep well impeller submersible pump can make full use of solar energy and can charge the battery at the same time. This solar impeller pump has a check valve. The check valve is used to prevent the water from flowing back into the pump and causing the impeller to reverse. The check valve can be removed if it is not needed. If you have any questions about the product, please contact us in time, we will be happy to help.
Description
1.Specifications:DC Voltage: 48VRated power: 750W Pump speed range: 1000-4000RPM Max. Head: 40m(131ft)Working Temperature : -15-60℃Outlet diameter: 1.25 inch Pump Size: 4 inch Length of cable: 9.8ftVoltage range: 48v-100vSolar panels：5200W（not included）2.Features: Solar water pump：304 stainless steel deep well submersible pump, durable for home and industrial use.MPPT controller: The solar water pump controller drives the high efficient brush-less DC pump motor, utilizing the latest MPPT technology to ensure maximum flow is delivered under all light conditions. It also protects the submersible pump from frequent start up in low light conditions, overheating & running dry.Alloy mechanical seal:Longer working life and high reliability.Intelligent water shortage protection: The pump stops working automatically when there is no water in the well, and automatically start working 15-30 minutes later.3.Package：1Solar pump1MPPT charge controller1 Float switch1 Accessories1 User's manual
Brand: JENENSERIES
Color: Black
Material: Stainless Steel
Style: Submersible
Power Source: Solar Powered
Voltage: 48 Volts (DC)
Manufacturer: JENENSERIES
Item Weight: 22.2 pounds
Package Dimensions: 20 x 14.9 x 6 inches
Size: 750W + charge controller
Color: Black
Style: Submersible
Material: Stainless Steel
Power Source: Solar Powered
Voltage: 48 Volts (DC)
Batteries Included?: No
Batteries Required?: No
Date First Available: December 29, 2020
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Friday, Sep 26
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- PayTomorrow Financing
- Financing through Apple Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Size: 500W-393ft
The media could not be loaded. I have to say I was skeptical at first of buying this and even more skeptical when I received it because of how small and lightweight the pump was. I figured there was no way this little pump is gonna produce any legitimate amount of water out of a 130ft well. I was wrong but more on that later. Setup: For me the setup was fairly easy, I know the well will produce more than I can pump and I am pumping into a 1 acre pond rather than a tank so I did not bother with any of the level switches that turn the pump on and off based on well or tank level. It was just splice the wires together (I used a well splice kit from Menards), hook up the drop pipe (I used 1” poly pipe for potable water usage), connect a safety rope and drop it in the well casing and hooked it up to the solar panels. The only hiccup I had here which maybe the manufacturer can correct is that the tags on the pump cable (w, v, u) were not correct and made the pump spin backwards which results in the impeller unthreading and popping out. We switched one set of the wires at the controller and pushed the impeller back in and then when the pump started it re threads the impeller back in as it is spinning the correct way. I would recommend putting the pump in a 5 gallon bucket and starting it up briefly to ensure it is spinning correctly and pumping water. This would have saved us from having to pull the pump back out of the well after the initial startup attempt. Regardless it didn’t damage anything or cause too much grief so I am not docking it any stars for that. Performance: This little pump has exceeded my expectations. The pump curve they supplied seems to be accurate and maybe even a bit conservative in how much flow you should expect. The water level in my well is right at 130ft below ground and this pump is able to fill a 5 gallon bucket in under 1 minute (5.85 gpm). The controller also has worked well for my application as it shuts off when the sun isn’t shiny and runs on and pumps when it is shining. I am using 8 x 100w solar panels and still only get max rpms for about 4 hours a day. So if you think you can get by with 500w of power you will likely be disappointed. From what I can tell the controller tries to maintain ~70-75 volts by adjusting the pumps rpm’s up to 4000rpm. There really isn’t great instructions on any adjustments or settings changes on the controller to adjust really anything. I tried to press the “settings” button and it just give like a p-0 message that you can adjust but I have no clue what I am adjusting so I just least it alone. It has performed well out of the box with the default settings. Overall, it has been good so far for the money. The well company wanted to charge me 7500 for a solar pump setup so for the tots cost of this system I have saved a lot of money and still get good performance out of it.
...
show more
Reviewed in the United States on April 13, 2022 by LunaDawn LunaDawn
Size: 500W-393ft
Pump has been in the ground for about four days and it is working amazing on four 120 W panels Lifting about approximately 400 vertical feet. Thank you, Amazon
Reviewed in the United States on September 28, 2023 by 400 feet vertical lift
Size: 500W-393ft
The media could not be loaded. Three days in and this well pump has been fantastic. This pump (500w, 48v version) is smaller than I expected, think smaller than two wine bottles stacked without the necks. The directions have typos and larger mistakes, but the wiring instructions are correct and clear. The rest of the install is straight forward. We sent the pump 100' down and it was pushing 6-7gpm out at the surface. I then connected 300' of 3/4" PEX and a garden hose spigot. The pump was still pushing 4-5gpm. We're powering it with 4 200W solar panels in series and parallel so roughly 65V/70VOC and 500-800w depending on sun. The pump will slow down when it loses sun, but that's to be expected. Tips: You'll need three wire cable to connect the pump to the controller. The outlet is 1" barbed. It comes with three float switches, one for low water in the well, one for high water in the tank, and one for low water in a tank. The well does not turn back on when the high water float switch is no longer active, you need to use the low water float switch too or manually turn the pump off and back on. My one complaint - the controller does not remember its last state after it loses power. If you don't have any of the float switches connected and just turn off the pump, it will automatically power on the next day when it gets solar power again. If you have the appropriate float switches installed this shouldn't be a problem, but if you want to manually control the well you need to disconnect the solar panels for the well to stay off. I'm thrilled.
...
show more
Reviewed in the United States on June 16, 2023 by T. Harper T. Harper
Size: 500W-393ft
Have bought and using 5 of these on the ranch to supply water to cattle. Needed another option than the power company. Contacted customer service for replacement part they responded immediately with No charge you Rock Jenenseries
Reviewed in the United States on August 27, 2023 by Rambo
Size: 500W-393ft
I'm pretty impressed with this pump so far. I have it hung at 135ft. in our 4" well casing. The static water level is 85 feet. I did install the low water level sensor about 5 ft. above the pump down inside the well. The float is protected inside some 1" sch 20 PVC pipe with caps on both ends. Drilled some holes in the caps so the float can operate with the water level in case it pumps down. Initially I powered the controller with our 48V golf cart. It would produce a solid 5 gpm at 3100 rpm with 48v. After my solar panel installation was completed (4) panels each rated at 395 watts and 49.5 VOC. They are wired 2S2P. This works out to be about 98 volts in series then when paralleled with the other two series panels about 790 watts of total power. My solar array is 250 ft. away from the well due to shade. The pump is now producing about 8-9 gpm through a 5/8" garden hose. I have attached up 150ft. of water hose at the top of the well to simulate extra head and it still produces 6-7 gpm. I will later be doing some irrigation and pond filling so only time will tell but so far its a great value and seems to be decent quality. Read the manual to understand how the sensors work.
...
show more
Reviewed in the United States on August 3, 2022 by dwolken dwolken
