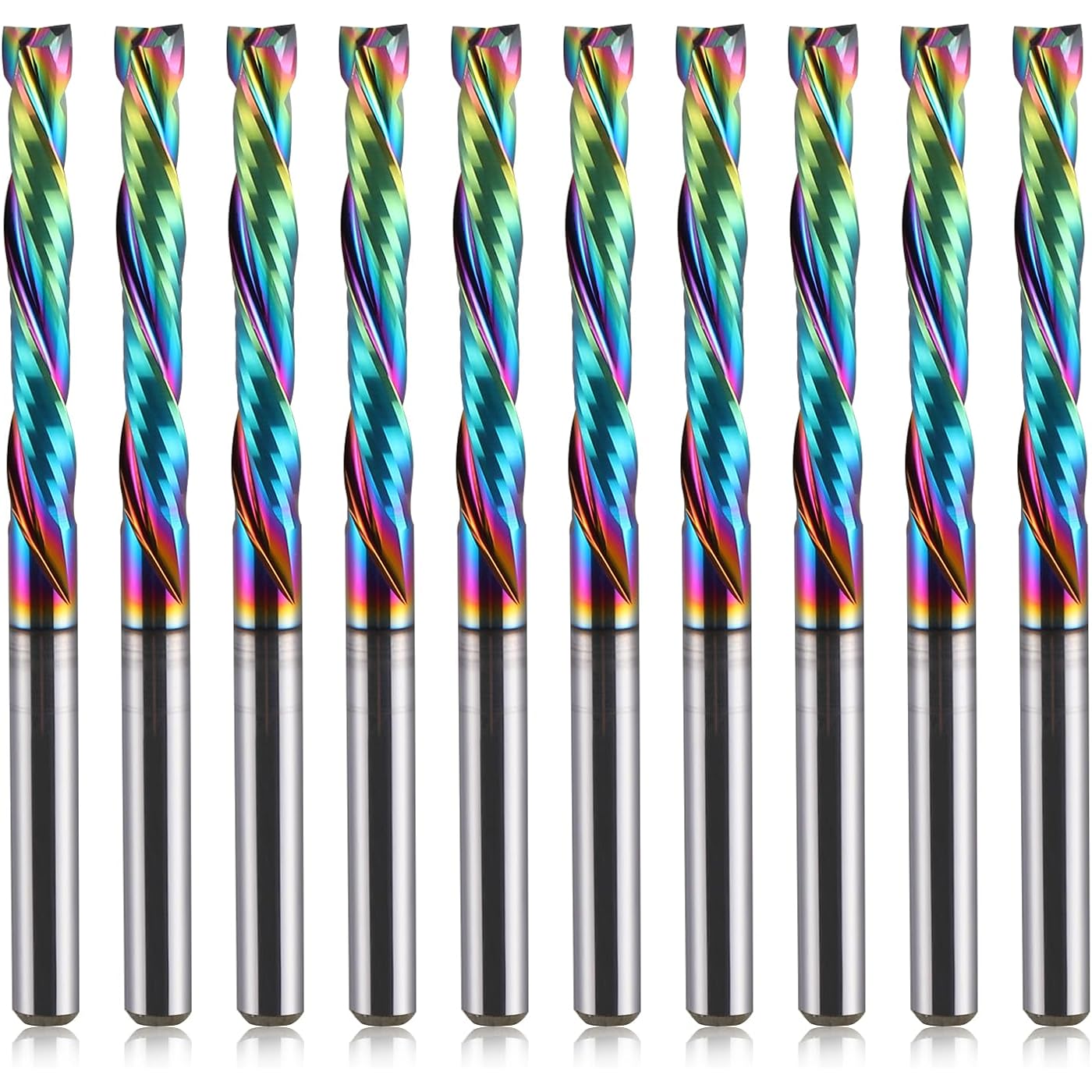

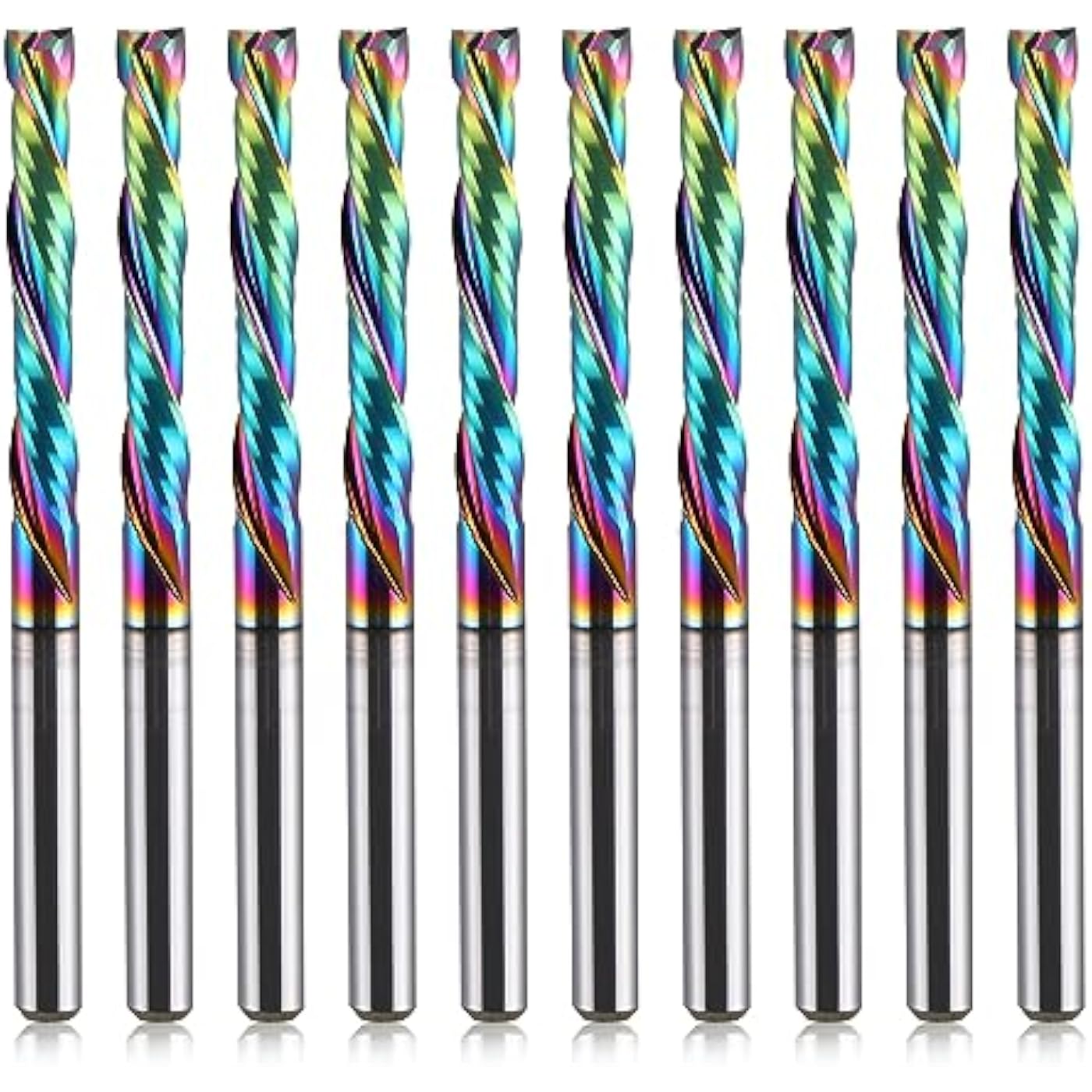

1/8 inch Shank Compression CNC Router Bits Spiral End Mill Wood Cutters 10 PCS, DLC Coating Compression CNC Spiral Bits 1/8 Cutting Dia, 22mm CEL, 2 Flutes Up &Down Cut Carbide End Mills

Features

• 10PCS UP & DOWN CUT compression router bit with 3.175mm(1/8") shank and 3.175mm(1/8") cutting diameter, 22mm (7/8") cutting length, 45mm(1-3/4") for total length. Please choose a cutting length that exceeds the board by 2-5mm, or it will result the end mill breaking.
• SOLID CARBIDE AND DLC Coating: The 1/8 spiral router bit is made of solid carbide. And DLC Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of better quality. Clean surface, neat, no glitches.
• CNC Spiral bits used for side milling, end milling, finish machining, etc. 1/8 End Mill Bits can smoothly upcut and downcut groove and slots, mortises, cycles and dados with clean edge and bottom, better than straight bits.
• The Compression CNC Bits apply to various wood: such as Plywood, OAK, MDF, and any hardwood working and Long tool lifespan for sharp.
• HIGH PROCESSING EFFICIENCY Carbide Router Bits 1/8 Shank: The edge of end mill bits is HARD and SHARP, process the heat treatment materials under 32 with high speed, reduce changing times and improve the production efficiency.

Description

The compression cutters are designed with both up and down-cut flutes. The top portion of the length of cut, closest to the shank, has a left hand spiral, forcing chips down. when using the compression bit, you must ensure the first pass is below the upcut portion of the bit, or you will get results similar to just cutting with an upcut bit; Using a ramp in, plunging into the material over a distance instead of all at once, and a lead in, starting outside the design to get to the pass depth, it will ensure that the entire piece is super clean on the top and bottom. Compression bits are designed to cut in a single pass, however, if your machine cannot handle that depth of cut you can cut in multiple passes, as long as that first pass is below the upcut portion of the bit. Compression bit is the combination of both upcut and downcut spirals. The bottom of the material will be pulled upwards while the top of the material is pushed downwards thus eliminating the risk of damaging the laminated surfaces, leaving a sharp, clean edge on both sides of your workpiece. Non-stick crumbs, smokeless, and silent during processing, smooth cutting, and fast chip removal. For carving/cutting/engraving/milling/slotting/sculpturing in materials like MDF, ABS, PVC, PCB, SMT, CNC, acrylic, nylon, resin, plastics, density board, wood, plywood, hardwood etc. Ideal for three-dimensional sculpture, surface machining, 3D relief sculpturing etc. We believe that every craftsman has their own unique style and creativity, and our tools can help them achieve these dreams Whether you are an architect, mechanic, electrician, or carpenter, whether you want to create a beautiful wooden table, repair a damaged electrical appliance, or create a unique handicraft, we all hope to become partners of craftsmen We are committed to providing equivalent to qualified cutting tools & router bits manufactured in the factory to ensure the durability and reliability of the product, so that you are no longer the victim of tool consumption, but the master of the tool. Let you enjoy endless fun and harvest in creating. We work with you to explore, innovate, and achieve.

Material: Tungsten Carbide

Cutting Length: 0.87 inches

Finish Type: DLC

Cutting Diameter: 0.13 inches

Number of Flutes: 2

Cutting Length: 0.87 inches

Cutting Diameter: 0.13 inches

Size Name: 0.125 inches

Item Weight: 0.08 kg

Brand Name: HOZLY

Manufacturer: HOZLY

UPC: 631384621385

Number of Items: 10

Included Components: Carbide

Model: 5

Part Number: 5

Unit Count: 1 Count

Finish Types: DLC

Number of Flutes: 2

End Cut Type: Center

Cut Type: Spiral

Tolerance Held: Precision

Number of Cutting Edges: 2

Material Type: Tungsten Carbide

Shape: Round
