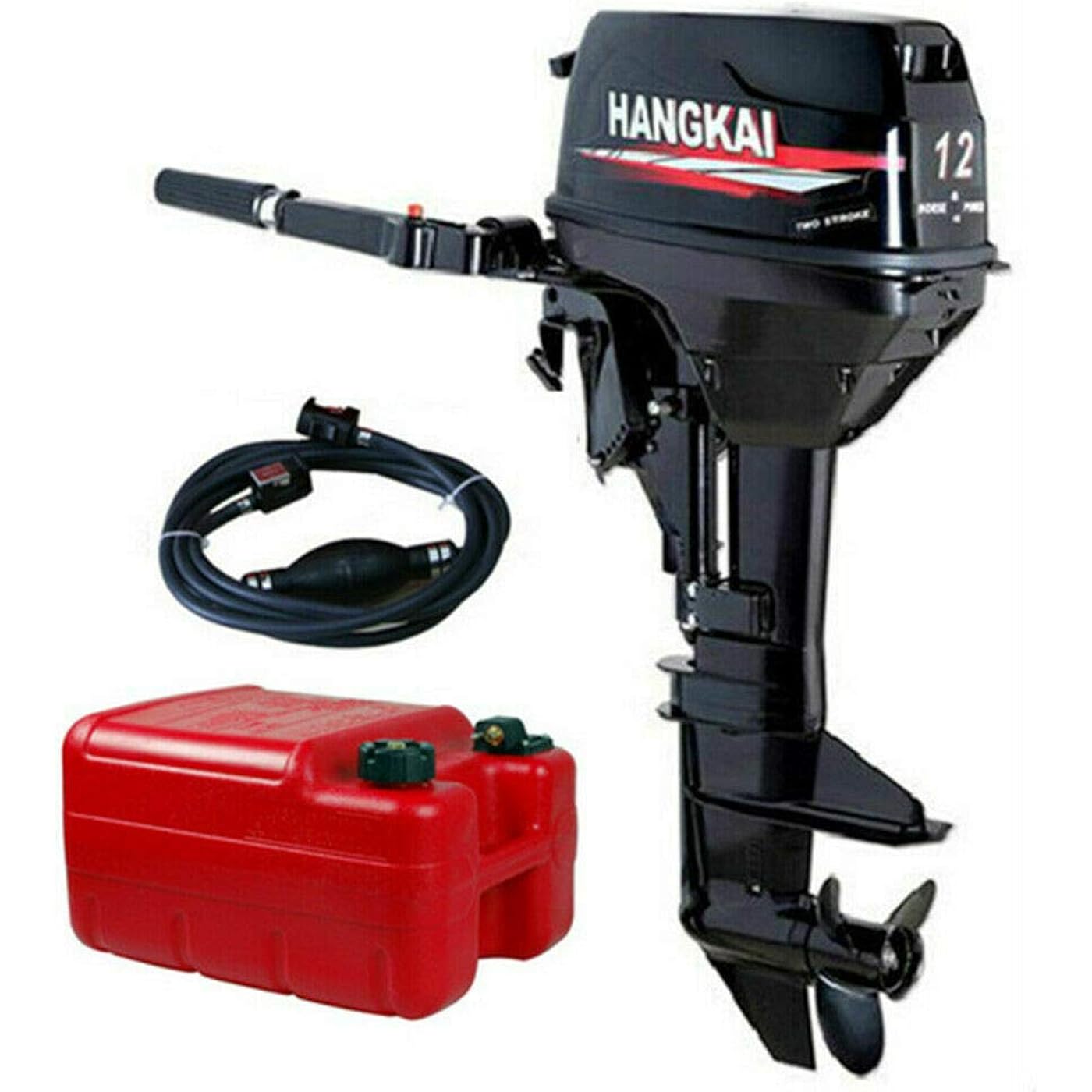

HANGKAI Outboard Motor,12HP 2 Stroke Outboard Motor Boat Engine Heavy Duty Fishing Boat Engine Water Cooling Sys 93 Gasoline 169CC 8.8KW Tilt shaft

Features

• Main ParametersDisplacement: 169CC; Max.speed(r/min): 4500-5500; Ignition System: CDI; Cooling System: Water-cooling; Control System: Tiller control; Starting System: Manual start; Control System: #93 gasoline; Mixing ratio: Fuel:oil=50:1; Standard fuel tank capacity: 24L
• Prefect DesighLight Weight,Easy To Carry,Unique Appearance,Large Tank Capacity.Environmental Protection:Clean and Pure Gasoline Fuel Makes Emissions Targets The Outboard Engine Has Been Able To Meet The CE Certification,Which Contributed To The Promotion Of Green Sports.
• NoteSeveral issues with this motor first the linkage that goes from the gear selector to the starting rope to block the rope to be pull when the motor is in gear was unattached , and still after fixing it every time you go into any gear it gets unattached second, the starting rope doesn't retract all the way when you attend to start the engine.
• Noise SmallerThe Machine Can Run In The Maximum Throttle Continuous Operation,Power Attenuation,With Circulating Oil Lubrication System and Direct Bearing Supporting Precision,Smooth Operation and Quiet,Sound Design,Excellent Noise Smaller,More Comfortable To Use.
• About certificationWe can only provide CE certification, there is no other certification can be provided,thanks for your understanding.

Description

Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.Must Read before using!Two stroke 12 hp:Firstly, Fill the gear oil (open gear box lid and fill it).Secondly, Fill NO. 92 petrol, lightly press oil pump 6-10 times.Thirdly, Fill engine oil don't exceed the head of the pattern.Forthly, turn the throttle to the start up and turn the accelerator gets up to 50%.Then, Rapidly pull the starter line.After the motor start, please turn the throttle to running state.Then, it can be operated now.Don't do the following will avoid cylinder Scoring: 1，start the motor in the water2, use the motor when it stop cyling waterEven if you want test the motor, it should be done in the river!When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked.Brand: HANGKAIDisplacement: 169CCGear ratio: 2.08(27:13)Cylinder: 2Max.Output(kw): 8.8Max.speed(r/min): 4500-5500Gear Positions: F-N-RPacking size: 120x70.5x37.5cmIgnition System: CDICooling System: Water-coolingControl System: Tiller controlStarting System: Manual startControl System: 93 gasolineN.W./G.W.(kgs): 27/31Bore x Stroke(mm): 50x43Recommended Propeller range: 3 -9"1/4''x8"Recommended Lubricant: 2 Stroke Lubricating oilMixing ratio: Fuel:oil=50:1Trim and tilt system: Manual TiltOverall LxWxH(cm): 78.3x33.2x104Standard fuel tank capacity: 24L

Brand: CNCEST

Color: Black

Material: Aluminum

Engine Displacement: 169 Cubic Centimeters

Engine Type: 2 Stroke

Engine Displacement: 169 Cubic Centimeters

Engine Type: 2 Stroke

Operation Mode: Manual

Mounting Type: Engine Mount

Fuel Type: Gasoline

Maximum Horsepower: 11.78 Horsepower

Fuel Capacity: 24 Liters

Color: Black

Material Type: Aluminum

Brand Name: CNCEST

Recommended Uses For Product: For Fishing Boats

Manufacturer: HANGKAI

UPC: 738633653385

Item Dimensions D x W x H: 30.83"D x 13.07"W x 40.94"H
