GeeekPi Cluster Case with Cooling Fan and Heatsinks for Raspberry Pi 4B/3B+/3B/2B
Condition: New
$19.98
Buy Now, Pay Later
As low as
$4
/ mo
Learn more
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
Only 10 left in stock, order soon!
Arrives
Monday, Nov 9
Recently Viewed
At a glance
- Condition
- New
- Color
- Brown
- Model
- ZP-0039
- Dimensions
- 1.18"D x 3.94"W x 2.83"H
- Weight
- 260 g
- Material
- Acrylic, Aluminum, Metal
- Case Type
- Raspberry Pi
- Warranty
- 6 months
- Works with
- Raspberry Pi 4 Model B, Raspberry Pi 3 B+, Raspberry Pi 3/2 Model B
Features 5
- Compatible with Raspberry Pi 4 Model B & Raspberry Pi 3 B+ & Raspberry Pi 3/2 Model B; Raspberry Pi Board Not Included!
- Access to all ports and slots of Raspberry Pi, including SD card slot, GPIO port, USB ports, HDMI port and so on.
- The case includes cooling fans and heatsink for cooling down your Raspberry Pi better. The metal protective cover on the top will protect the cooling fan against being destroyed.
- The stackable case can provide you with an environment to put four pieces of Raspberry Pi board together. The instruction manual will tell you how to assemble step by step.

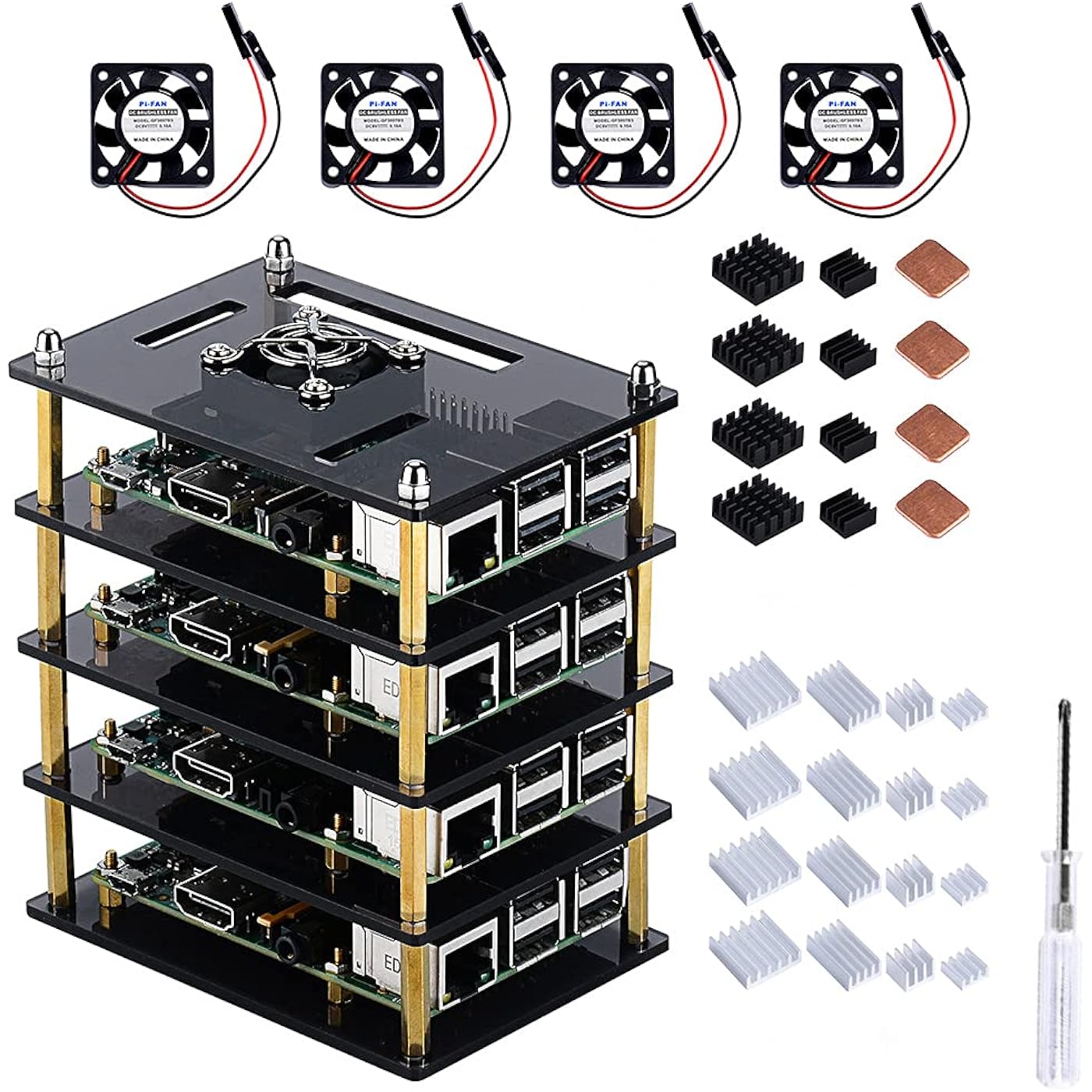

- Package Includes: 5x Acrylic Plates, 4x Cooling Fans with Metal Protective Cover, 12x Heatsinks for Raspberry Pi 3B+/3B/2B,16x Heatsinks for Raspberry Pi 4 Model B(Added on 2019.8.2), 1x Screw Set, 1x Screw Driver,1x Instruction Manual
Description
The stackable case is made of acrylic and compatible with Raspberry Pi 4 Model B & Raspberry Pi 3 B+ and Raspberry Pi 3/2 Model B The Size of 4 Layers Case One acrylic plate: 100mm*72mm*30mm The gap between two acrylic plates: 25mm Four Layers Case: 120mm*100mm*72mm Mini Cooling Fan Cable Length: 80mm Working Voltage and Current: DC 5V / 0.15A Rotation speed: 6000RPM±10% Color: Black Heatsinks ---Big black one Materiel: Aluminum Size: 14mm*14mm*6mm ---Small black one Materiel: Aluminum Size: 9mm*9mm*5mm ---Thin copper one Size: 12mm*12mm*1mm They all have adhesive thermal tapes on the back. Outer Package:135mm*98mm*42mm Weight: 260g Package Includes 5x Acrylic Plates 4x Cooling Fan 12x Heatsinks for Raspberry Pi 3B+/3B/2B 16x Heatsinks for Raspberry Pi 4 Model B(Added on 2019.8.2) 1x Screw Set 1x Screw Driver 1x Instruction Manual
Specs 24
| Brand | GeeekPi |
|---|---|
| Motherboard Compatability | Mini ITX |
| Case Type | Raspberry Pi |
| Recommended Uses For Product | Business, Gaming |
| Color | Brown |
| Material | Acrylic, Aluminum, Metal |
| Power Supply Mounting Type | Rack Mount |
| Cooling Method | Air |
| Model Name | GeeekPi Cluster Case |
| Item Weight | 260 g |
| Supported Motherboard | Mini ITX |
| Total USB 2.0 Ports | 2 |
| Total Usb Ports | 2 |
| Hard Disk Form Factor | 3.5 inches |
| Internal Bays Quantity | 4 |
| Number of Fans | 2 |
| Power Supply Maximum Output | 15 watts |
| Enclosure Material | Acrylic, Aluminum, Metal |
| Manufacturer | GeeekPi |
| UPC | 703501206499 |
| Model Number | ZP-0039 |
| Mfr Part Number | ZP-0039 |
| Antenna Location | Business, Gaming |
| Item Dimensions D x W x H | 1.18"D x 3.94"W x 2.83"H |
No specs match.
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Monday, Nov 9
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- Zip Pay in 4
- Financing through Apple Pay
- Financing through Google Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Love the modular design
Color: Brown
I really appreciated the modular design of this case. I had an old Pi and a new Pi 4 and wanted to keep them together. Of course, this case was NOT made with mounting hole location for the original Pi (which I should have checked, my bad), and the fan location would normally conflict with the video out of that board. However, the design made it very easy to just cut a new bottom plate from hardboard to the same size but with the correct mounting holes, and to flip the intermediate layer to put the fan where it wouldn't hit the video jack. Once that was sorted, assembly was not difficult and it works great. With the fans running, I don't think the heat sinks are necessary; without them, the Pi 4 never got above 65°C under full load and the original Pi doesn't even break 45°C, and they're both overclocked as high as possible. A downside might be that the GPIO pins are harder to get at except for the top-most Pi. Also kind of wish it had non-skid rubber foot pads on the bottom. Overall I think it's a great deal for a case if you plan on running multiple Pis under heavy load.
...
show more
Reviewed in the United States on July 29, 2019 by Ashley
It works just fine once you figure out how it goes together
Color: Clear
At first it wasn't clear from instructions how it went together. The instructions said "screw the short standoff on" but it didn't make it obvious to use the screws in the bag in a separate bag from the standoffs. Looked at the pictures here and realized thats how it went and then it all came together really quickly. It does include a mini screw driver,but a small socket tool to get the nuts on wouldve been more useful. The tight spaces and small pieces requires you to just use your fingers and have some patience. Using this with pi4s and the loverPi PoE hats means 2 heatsinks wont fit. The fans will also hit so I skipped them. Some taller standoffs would solve this problem but if you are not using any hats, the standoffs in this kit will work fine with just the PIs. Also worth note that the short standoffs are different diameter thread than the longer ones. Don't expect the short ones to screw into the long ones and vice versa if you intend to stack them that way. You will need to get a different set of standoffs to do that.
...
show more
Reviewed in the United States on August 16, 2020 by joe hicks
It makes your project look professional, and it cleans up the space.
Color: Clear
this cleans up your cabling and cooling, and makes a project that needs more than one pi look like it was planned. also, it works fine for two pi up to 5, and you could probably stack more if you wanted.
Reviewed in the United States on March 10, 2026 by Bob
Good product, terrible instructions.
Color: Brown
The product seems to be well made for the price point. It is sturdy and all parts fit well. The main reason for 4 star instead of a 5 star rating is the assembly instructions. Once I was able to determine how to assemble the unit the assembly process was easy. An exploded assembly view would have been a great help and language neutral. The 3-point font assembly instructions were almost useless. I appreciated the inclusion of extra parts to aid in the assembly and upkeep. Overall I am pleased with the results.
...
show more
Reviewed in the United States on March 19, 2026 by Phil K.
Sleek & easy to put together!
Color: Clear
I actually ordered two of these, because I have more than 4 Pis and this seems modular enough that I could just keep stacking. The current setup in the picture is as follows from bottom to top: Pi 2, Pi 3, Pi 4, Pi 4. I didn't use the set of heatsinks provided for the Pi 4's because the kit I ordered those from had heatsinks already and while putting it all together, I'm not sure the heatsinks provided in this case would have fit the Pi 4. I did use the provided heatsinks for the Pi 2 and the Pi 3 though and everything is great. So far, I'm happy with this purchase.
...
show more
Reviewed in the United States on July 10, 2019 by Jason R
Unit works well, assembly requires some thought to do it correctly.
Color: Brown
Instructions to build were not very clear
Reviewed in the United States on December 15, 2025 by Isleguard
Works for the price...
Color: Brown
Fans and heatsink works great. Overall, the stackable open rack design is very functional and has tremendously improved the cooling for my Pi setup. HOWEVER..... Three of the plates have since broken on me with almost NO movement whatsoever. They're just incredibly brittle. Also, the mounting hardware is incredibly poor. My box came with some of the correct nuts/bolts, but not all. Some of the hardware is the wrong size or threading. Very odd. The standoffs are great on their own, the fans work well enough, the heatsinks are adequate like most Pi heatsinks, and the kits overall did what I wanted for a very cheap price. Overall, I give it a 3/5. Two of my plates are completely broken and unusable now, with a third having a corner missing. I had the missing hardware, so I didn't have an issue there. It's a meh from me.
...
show more
Reviewed in the United States on April 20, 2021 by Michael
Not too hard to assemble, good cooling
Color: Clear
On the plus side, it's not very difficult to assemble and does the job for my Pi4 cluster. It's open and includes fans so it keeps things nicely cooled. On the minus side, you must disassemble the case to remove or add a Pi. Since the alternatives that allow easier removal of the boards are much, much more expensive, this was a good buy for me.
...
show more
Reviewed in the United States on August 5, 2020 by SonnyB
