Foredom Drill Press for H.30, H.30H, H.44T

Features

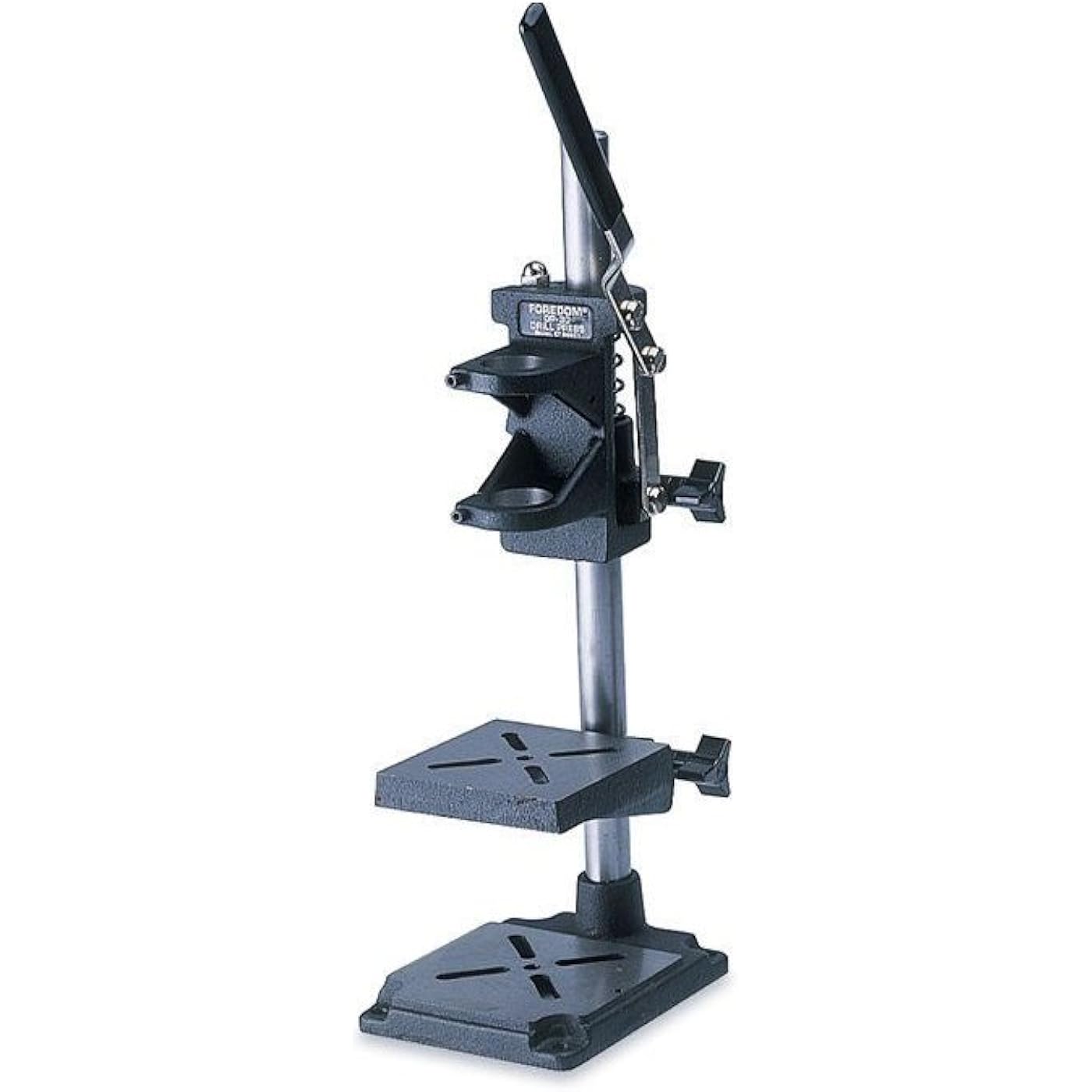

• Product Model: P-DP30 rugged all-metal drill press stand converts your Foredom flexible shaft power tool into a precise benchtop drill press.
• Rugged Construction: Features a sturdy all-metal frame with a 2-inch throat capacity and a stroke length up to 1-1/4 inches for highly accurate, repeatable drilling depth.
• Adjustable Work Table: Fully adjustable work table moves smoothly up and down the post or completely swings away to easily accommodate drilling larger workpieces.
• Exact Handpiece Compatibility: Designed specifically for use with Foredom Handpiece models H.30, H.30H, and H.44T. (Note: Not compatible with the shorter H.43T handpiece).
• Motor & Material Versatility: Ideal for drilling, modeling, spot-facing, and countersinking gemstone, metal, wood, or wax. Pairs perfectly with high-torque Series LX or reversible Series SR motors.
• Motor Compatibility: Works with any Foredom motor, particularly suited to Series LX motor for high torque and slow speed applications like stone setting and wax modeling
• Reversible Motor Function: Compatible with Series SR reversible motor which permits drilling into workpieces in forward rotation and out in reverse rotation without enlarging the drilled hole

Description

P-DP30 is a rugged and precise stand which converts your Foredom flexible shaft power tool into a drill press by securely holding a handpiece in a vertical position for drilling straight, accurate holes to specified depths. The sturdy, all metal stand is fully adjustable, has a 2” throat capacity, and a stroke length up to 1-1/4”. The work table moves up and down on the post or can swing away for drilling large pieces. Foredom's drill presses are designed for use with Handpiece H.30, H.30H, H.44, H.44T and H.44HT. They can be matched with any Foredom motor, but are especially suited to the Series LX motor for high torque/slow speed applications like stone setting and wax modeling. They also work great with Series SR reversible motor which permits drilling into the workpiece (such as a pearl or bead) in the forward rotation and then out when switched into reverse rotation without increasing the size of the drilled hole. Foredom drill presses are also ideal for modeling, spot- facing, countersinking and reaming in wood, wax, plastic, metal, glass and gemstone. The H.43T handpiece cannot be used in the drill press, it is too short. P-DP30 is a rugged and precise stand which converts your Foredom flexible shaft power tool into a drill press by securely holding a handpiece in a vertical position for drilling straight, accurate holes to specified depths. The sturdy, all metal stand is fully adjustable, has a 2” throat capacity, and a stroke length up to 1-1/4”. The work table moves up and down on the post or can swing away for drilling large pieces. Foredom's drill presses are designed for use with Handpiece H.30, H.30H, H.44, H.44T and H.44HT. They can be matched with any Foredom motor, but are especially suited to the Series LX motor for high torque/slow speed applications like stone setting and wax modeling. They also work great with Series SR reversible motor which permits drilling into the workpiece (such as a pearl or bead) in the forward rotation and then out when s

Brand: Foredom

Power Source: Corded Electric

Maximum Rotational Speed: 18000 rpm

Amperage: 1.7 A

Maximum Chuck Size: 2 inches

Power Source: Corded Electric

Maximum Rotational Speed: 18000 rpm

Amperage: 1.7 A

Maximum Chuck Size: 2 inches

Drill Type: Drill Press

Drilling Capacity Wood: 2 inches

Compatible Devices: Foredom H.30, H.30H, H.44, H.44T, H.44HT handpieces

Drilling Capacity Metal: 2 inches

Material Type: Metal

Brand Name: Foredom

Included Components: Handpiece

Model Number: P-DP30

UPC: 640823562103

Number of Packs: 1

Unit Count: 1 Count

Manufacturer: Foredom

Number of Items: 1

Manufacturer Part Number: P-DP30
