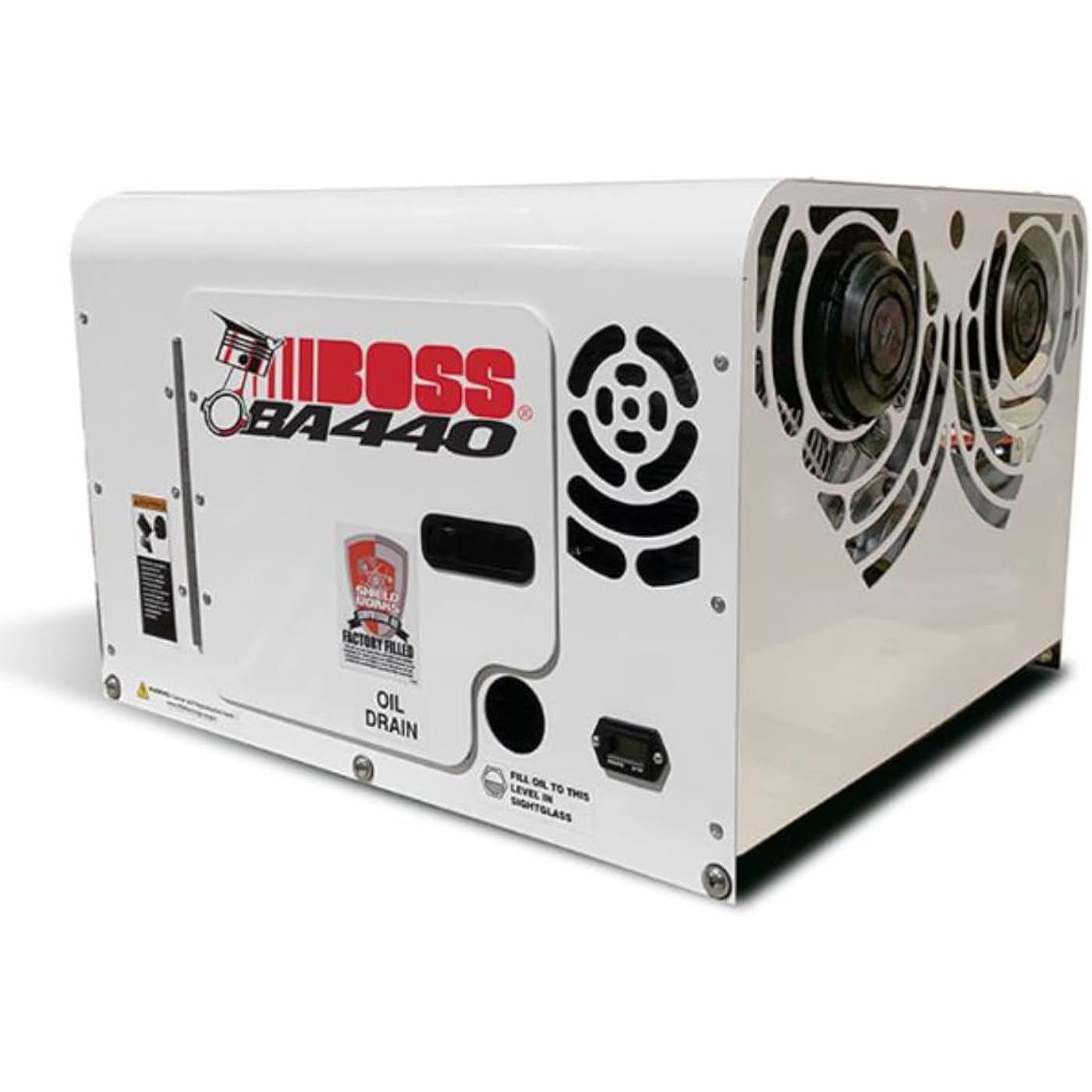

BOSS Industries 20013-006, BA440 Hydraulic Drive Piston Air Compressor (12VDC)

Features

• Integrated compressor hydraulic cooler Low oil level and pressure shutdown Pressure lubricated oil pump and splash lubrication
• The piston assembly is direct coupled to a hydraulic gear motor resulting in a No belt, No Couplings, No worries air compressor Open center valve block with hydraulic pressure relief
• Graphite and stainless steel precision valve assembly Auto start/stop based on system air pressure Lightweight rustproof aluminum canopy
• Aluminum piston assembly with cast iron cylinder sleeves for maximum thermal heat transfer 1/2 the weight of comparable cast iron piston assemblies
• Easy access, high efficiency 2-Stage Solberg air filters Auto head unloader for smooth starting Balanced crankshaft

Description

The new BOSS BA440 is now even lighter smaller and more efficient! By eliminating the coupler, we have reduced the weight by 20 lbs, shortened length plus made the routine maintenance even easier. Plus we added an hour meter! At the heart of the system is an aluminum, single stage, V4, pressure and splash lubricated reciprocating air compressor. Fully assembled in the U.S., the aluminum compressor assembly offers lighter weight and higher thermal efficiency than cast iron compressor assemblies. The BA440 includes an internal oil pump for increased lubrication over that of splash lubrication only compressors. And here is what's exciting about the BA 440! Now, with our new design, we are as flexible as your hydraulic requirements. From 8 GPM to 12 GPM, we can offer you a variety of outputs to fit your demands! See the chart below for all the hydraulic pressure and flow requirements. CFM/PSI INPUT RPM GPM HYD PSI 30/100 (150 max) 1,150 8 1,850 (2,100 max) 35/100 (150 max) 1,400 10 1,850 (2,100 max) 40/100 (150 max) 1,650 12 1,850 (2,100 max) The compressor is direct coupled to a gear-type hydraulic driven motor, no need to replace and tension belts when time is of the essence! Routine maintenance items are accessible without the removal of the canopy. The 160lbs dry weight of the BA440 is half that of competitive brands due to the aluminum compressor, enclosure and small footprint. The aluminum enclosure not only reduces weight, but also is rust resistant. Also, included standard with the Boss BA440 are an integrated hydraulic system cooler, integrated solenoid and relief valve, 12 VDC fan assembly, heavy-duty filtration and 18-month warranty.

Brand: BOSS Industries, LLC

Voltage: 12 Volts (DC)

Special Feature: Lightweight

Included Components: Filters

Item Weight: 163 Pounds

Brand: ‎BOSS Industries, LLC

Voltage: ‎12 Volts (DC)

Special Feature: ‎Lightweight

Included Components: ‎Filters

Item Weight: ‎163 Pounds

Air Flow Capacity: ‎12 Gallons per Minute

Model Name: ‎BA440

Manufacturer: ‎BOSS Industries, LLC

UPC: ‎643934621325

Part Number: ‎20013-006

Item Weight: ‎163 pounds

Product Dimensions: ‎23.8 x 21 x 16.25 inches

Country of Origin: ‎USA

Item model number: ‎BA440

Item Package Quantity: ‎1

Special Features: ‎Lightweight

Date First Available: May 22, 2024
