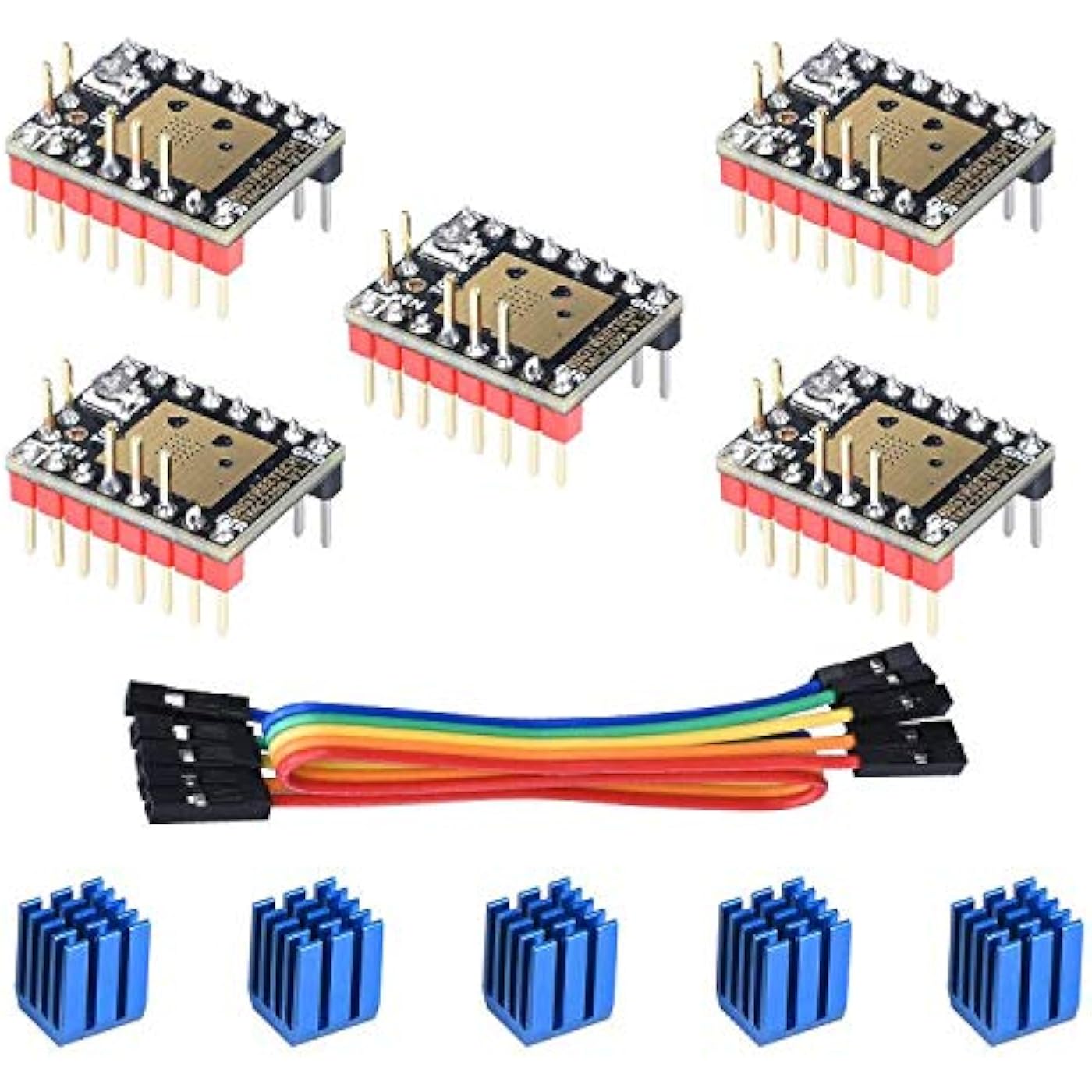

BIGTREETECH TMC2209 V1.2 Stepper Motor Driver Stepstick Mute 3D Printer Part with Heatsink for SKR 2/Octopus V1.1/SKR V1.4 Turbo/SKR V1.3 Control Board(Pack of 5pcs) (UART Mode)
Condition: New
Buy Now, Pay Later
As low as
$7
/ mo
Learn more
- – 4-month term
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
This item is eligible for return within 30 days of receipt
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
In Stock.
Arrives
Tuesday, Dec 16
Style: TMC2209 UART
Features
- High CompatibilityDrive current 2A, peak current 2.8A, voltage range 4.75V-29V, 256 subdivision. BIGTREETECH TMC2209 V1.2 is an ultra-silent motor driver IC for two-phase stepper motors,it can be compatible with popular mainboards like SKR 2, Octopus, MKS GEN L V2.0, Anycubic I3 Mega mainboard.
- Excellent Heat dissipation and Low HeatCompare to other TMC2209 stepper motor driver in the market, our TMC2209 silent stepper driver generate lower heat and it has a large-area cooling position to lower the temperature. It driver can lower 30% heat than others stepper motor drivers even working last for a long time. With Passive cooling on a 10 hours print, they only hit 37C.
- Ultra Silent Step DriverTMC2209 stepper motor driver adopts stealthChop2 Mute technology which reduces motor noise to the point of silence at low velocities to ensures noiseless operation, maximum efficiency and best motor torque. spreadCycle allow for highly dynamic motion.
- Multiple FunctionsThe Flexible microPlyer interpolation unit can provide 256 microsteps. Stallguard4locked-motor test can provide an abnormal signal when the motor rotates abnormally. CoolStep current dynamic control can save 75% energy.
- After-Sale GuaranteeWe offer long-term after-sales guaranteed time for 12 months, If you have difficulties in using our step driver or other questions, please let me know what help you need, we are here ready to support you.
Package Dimensions : 3.8 x 2.3 x 1.3 inches; 1.59 Ounces
Date First Available : October 8, 2019
Manufacturer : BIQU
Best Sellers Rank: #28,693 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #2 in 3D Printer Interface & Driver Modules
#2 in 3D Printer Interface & Driver Modules:
Customer Reviews: 4.7 out of 5 stars 376 ratings
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Tuesday, Dec 16
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- PayTomorrow Financing
- Financing through Apple Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
I purchased the EZ2209, and used the carrier boards that they come with to install on a BTT Octopus PRO. Overall work very well, the only problem is that sensor-less homing will NOT work with the EZ2209 when installed via the provided carrier board. The carrier board does not have the DIAG pin necessary to get sensor-less homing working. I am not sure if the EZ2209 supports sensor-less homing on a board that takes the native EZ form factor (such as the SKR EZ), but it cannot work via the carrier board - the pin is not provided. Had to purchase a couple of regular (non-EZ) 2209s for my X/Y axis drivers to get sensor-less homing working.
...
show more
Reviewed in the United States on July 18, 2022 by Chris B
Style: TMC2209 UART
I ordered a pack of 5 2209 uart drivers. 1 of the 5 did not work. I verified this by putting a different driver in and it works.
Reviewed in the United States on June 28, 2022 by jose perez
Style: TMC2209 UART
Easy upgrade. Just beware of the orientation
Reviewed in the United States on August 1, 2022 by Nick
Style: TMC2209 UART
I bought this board to build a custom 3d printer. I'd researched for weeks on the "best" replacement boards and this one was always at the top of the list. It was delivered as promised, in beautiful packaging, with ZERO instructions. None. There's a piece of paper that says to go to their GitHub, Discord or F**ebook page. What if I don't use Discord or Facebook? Well, despite this board having dozens of options, hundreds of connectors, jumpers and headers, the "user manual" is 8 pages of useless information. Both the GitHub location and the "user manual" indicate that some drawings (very important power-related jumper settings) might be wrong. I had questions, so I tried the Discord - no answers. I tried multiple emails - no replies. After complete frustration set in, I tried Facebook. I was berated and bullied by several members (including an admin) for asking questions too "aggressively". Still no answers, though. Not a one. TLDR; buy this product ONLY if you have 100% confidence that you know how to configure and connect it because there will be no help from the people that make it. BTT has already warned me that they're going to bully and shame me some more, using my Facebook posts, if I posted an honest review. So, that's who you'd be dealing with if you need help with this or any other BigTreeTech product. They'll never get another dime from me and whoever's reading this should reconsider, as well.
...
show more
Reviewed in the United States on August 7, 2022 by Dave
Style: TMC2209 UART
These were installed on my Anycubic Mega-s. I watched some YouTube videos and gave it a shot. The printer is much quieter. I started at .85v, but had shifting on the x and y axis. After some testing I was able to print without shifting with x and y at .98v. The stepper motors run cooler now too. These are a nice upgrade to the printer.
...
show more
Reviewed in the United States on May 2, 2022 by Dawn McGuire
Style: TMC5160
Got these to replace my TMC2100s and they work like a champ. No more skipped steps due to over heated motors. These crank out power to my stepper motors and allow me to fine tune just how much power is going to them thru menus on my printers menu. I now run nearly 3 times less power to my motors causing them to run cold, even at speed. This means no more skipped steps due to over heating. This also means my printer runs significantly quieter. These also crank enough power to my extruder motor to run retractions @ 80mms with zero skipped steps while running cold to the touch too. Pros: Runs my stepper motors quieter than any other driver I've owned, and I've owned a lot. DRVs As and older TMCs. These put them to shame. Ability to control vref voltage from menus on my printer is really nice. Sensor less homing is the bomb once you get it tuned. Cons: Had to remove a pin to get sensor less homing working. This was a pain. Price. Other thoughts: These were spendy but if you were like me and keep having motors over heat, these will fix your problem. Worth every penny.
...
show more
Reviewed in the United States on November 19, 2020 by Clayton
Style: TMC2209 UART
4 out of the 5 drivers are great. One stepper driver was shorted VM to GND from the factory (checked with a meter before installation). No big deal but I messaged the seller within a few days of delivery to get a replacement for the faulty one and have had no response. Very satisfied with shipping time and the working drivers though.
...
show more
Reviewed in the United States on March 31, 2022 by Kindle Customer
Style: TMC2208-UART
I bought these driver to replace the stock A4988 ones that came with my printer. Unfortunately those stock drivers are quite noisy and the screeching sound makes it not very pleasant. I had initially a problem with one of the drivers that was faulty but Bigtreetech send a new one and I got that one and the other ones straight away. They come with nice heatsinks and are very easy to setup. I adjusted the voltage to around 1V for the X/Y/Z axis and 1.2V for the extruder. Now the printer is very very quiet and unless I'm looking at the printer I'm not sure if it's printing or not as the only sound I can hear is the different fans spinning. They've been running for a few months already and still going strong. Definitely is a product I would recommend
...
show more
Reviewed in the United States on June 20, 2020 by Sergio
