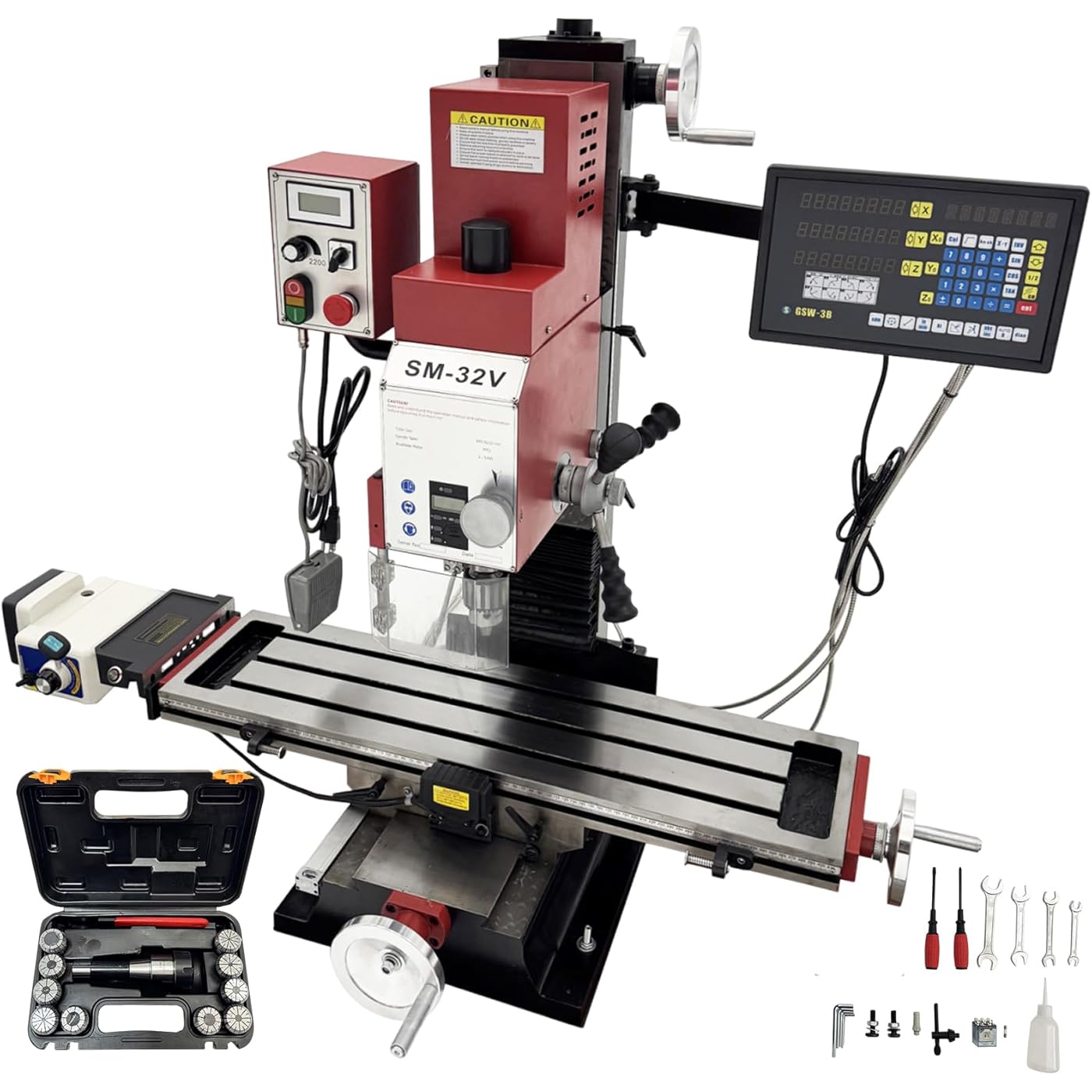

Benchtop Mini Milling Drilling Machine 1500W Brushless Mill Drill with X-Axis Power Feed,3-Axis Grating Ruler,±90° Spindle,50-2250 RPM for Metal/Wood/Plastic Working R8 Spindle 110V
Buy Now, Pay Later
- – Up to 36-month term if approved
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
Features
- 1500W Brushless Motor Power: High-torque brushless motor delivers robust, efficient, and precise drilling and milling performance across diverse materials (metal, wood, plastic)
- Expansive Work Envelope: Generous axis travels (X: 22.4"/570mm, Y: 8.7"/220mm, Z: 15"/380mm) enable seamless handling of large or industrial-sized workpieces
- High-Precision 3-Axis DRO System: Integrated precision grating ruler (0.005mm accuracy) with zero-clearance, preset functions, auto-centering, calculator, power-fail memory, and dual metric/imperial display ensures professional-grade accuracy and efficiency
- Versatile Adjustable Spindle: 90 tilting spindle (capable of 360 rotation) with wide speed range (50-2250 RPM) accommodates diverse operations, supporting max drilling (1.26"/32mm) and face milling (2.95"/75mm)
- Rugged All-Metal Construction: Built with an integrated spindle, brass gears, and an all-metal structure for exceptional durability, precise alignment, smooth operation, and long-term reliability
- Large, Flexible Worktable: Spacious table (33.1"x8.3"/840mmx210mm) with T-slots (0.47"/12mm) provides versatile and secure workpiece positioning and clamping options
- Operator-Centric Design: Features an intuitive LCD display with unit conversion, foot pedal control, and a user-friendly operation panel for enhanced convenience and workflow efficiency
- Multi-Functional Machining Capability: Combines powerful drilling, vertical milling, and face milling operations into one machine, ideal for precision parts, samples, models, and DIY projects on various materials
Brand: EQCOTWEA
Power Source: AC
Maximum Rotational Speed: 2250 RPM
Voltage: 110 Volts (AC)
Amperage: 13.6 Amps
Brand: EQCOTWEA
Power Source: AC
Maximum Rotational Speed: 2250 RPM
Voltage: 110 Volts (AC)
Amperage: 13.6 Amps
Color: Red
Included Components: Axis X power feed *1 / Grating ruler *1/ Milling chuck set *1/ Straight screwdriver *1 / Cross screwdriver *1/ Fork wrench *4/ Hexagon wrench *5/ Drill chuck wrench *1/ Oil can *1/ English manual *1/ Fuse *1/ Relay *1
Special Feature: All Metal Construction, Brushless Motor, High Configuration, Variable Speed
Product Dimensions: 50.4"L x 28"W x 39.4"H
Material: Steel
Speed: 2250 RPM
Item Weight: 525 Pounds
Maximum Power: 1500 Watts
Is Electric: Yes
UPC: 198462095907
Manufacturer: EQCOTWEA
Part Number: T028365
Item Weight: 525 pounds
Item model number: SM-32V
Style: Benchtop Milling Drilling Machine
Wattage: 1500 watts
Horsepower: 2 Horsepower
Item Package Quantity: 1
Special Features: All Metal Construction, Brushless Motor, High Configuration, Variable Speed
Date First Available: April 2, 2025
