4-Stroke 9 HP Outboard Motor, 225cc 3800 RPM Heavy Duty Fishing Boats Motor Air-Cooling Adjustable Universal Shaft Inflatable Boats Engine with TCI Ignition System for Water Transportation

Features

• 225cc Four-Stroke OHV Engine: Outboard motor is powered by a 225cc single-cylinder four-stroke OHV engine delivering 4.3kW maximum output with operating speeds of 3800 RPM, providing propulsion for inflatable boats, fiberglass boats, and wooden vessels.
• Clutch-Type Gear Operation: Boat motor features a clutch-type gear system that eliminates the need for shifting between forward and reverse, with throttle lever control enabling step-less speed adjustment for smooth acceleration and constant-speed cruising.
• Forced Air-Cooling System: Outboard includes a forced air-cooling system with dense heat dissipation holes that manage engine temperatures. It is also equipped with an air filter, which helps the engine run more smoothly.
• TCI Ignition with Fuel Efficiency: 4 stroke outboard motor is equipped with transistor-controlled ignition system and high-quality carburetor achieving fuel consumption of 0.4 gallons per hour.
• Aluminum Alloy Construction: Boat engine is crafted from aluminum alloy with spray molding finish, providing a lightweight framework with 27.6-inch standard shaft length suited for transom plate heights ranging from 11.8 to 19.7 inches.

Description

SpecificationColor: BlackMaterial: Aluminum Alloy, Nylon, RubberProcess: Spray MoldingEngine Type: 4-stroke, OHVDisplacement: 225CCCompression Ratio: 8.4:1Cylinder: 1Max.Output: 4.3kwRotation: 3800r/minMax. Speed: 15km/h/9.32miles/hIdle Speed: 1800+150rpmNet Torque: 12.5n.m / 7.7 Lbf.ft, 2500rpmGear: Clutch (No Shift Required)Ignition System: TCICooling System: Forced Air-coolingStarting System: Manual RecoilPower Transmission Mode: Gear Transmission ModeRecommended Fuel: Above 92 Unleaded GasolineEngine Oil: SAE10W-30 Four-stroke Oil (Approximately 0.6L Added to the Ccrankcase, Between the Upper and Lower Lines of the Dipstick)Trim and Tilt System: Manual TiltFuel Consumption: 1.5L/0.4Gal/HFuel Tank Capacity: 1-1.5L/0.26-0.4GalGear Oil Capacity: 0.1L/0.03GalBore Stroke: 75.8cm/2.762.28inchStandard Shaft Length: 70cm/27.56inchAdaptive Transom Plate Height: 30-50cm/11.81-19.69inchPropeller Diameter: 19cm/7.48inch Joystick Length: 59cm/23.22inchOil Filling Pipe Length: 14cm/5.51inchProduct Lower Part Length: 76cm/30inchProduct Total Length: 110cm/43.31inchGross Weight: 32.3kg/71.21lbsNet Weight: 25.6kg/56.44lbsEngine Size: 463730cm/18.1114.5711.81inchPackage Size: 120.552.540.5cm/47.4420.6715.94inchPackage Included1 Outboard Engine2 English ManualsAll Accessories for InstallationNotes1. Please carefully read the manual and strictly follow the precautions to have a better experience. 2. Please measure the height of your boat before purchasing to ensure suitability for this product.3. Please ask a professional master to fix it on the boat, then firstly add 4-stroke oil according to the scale between the upper and lower lines of the scale (please do not start the motor without engine oil). The fuel tank should be filled with pure gasoline of above No.92, and then start the motor.4. Please do not drive too fast during the running-in period. After the running-in period, the oil in the crankcase needs to be replaced, and the second replacement time is about 30 hours. Replace it every 50 hours thereafter.5. Please note that the propeller gearbox requires a gear oil change every 50 hours.6. After cruising in seawater or turbid water, please clean the rod and gearbox with fresh water. It should be stored in a dry and ventilated place.7. If not in use for a long time, please drain the gasoline tank and the carburetor.8. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind, and other factors.9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Brand: JDINAAS

Material: Aluminum, Nylon, Rubber

Manufacturer: JDINAAS

Brand Name: JDINAAS

Manufacturer: JDINAAS

Manufacturer Part Number: 4-Stroke 9 HP Outboard Motor

Model Number: 4-Stroke 9 HP Outboard Motor

Manufacturer Warranty Description: NO

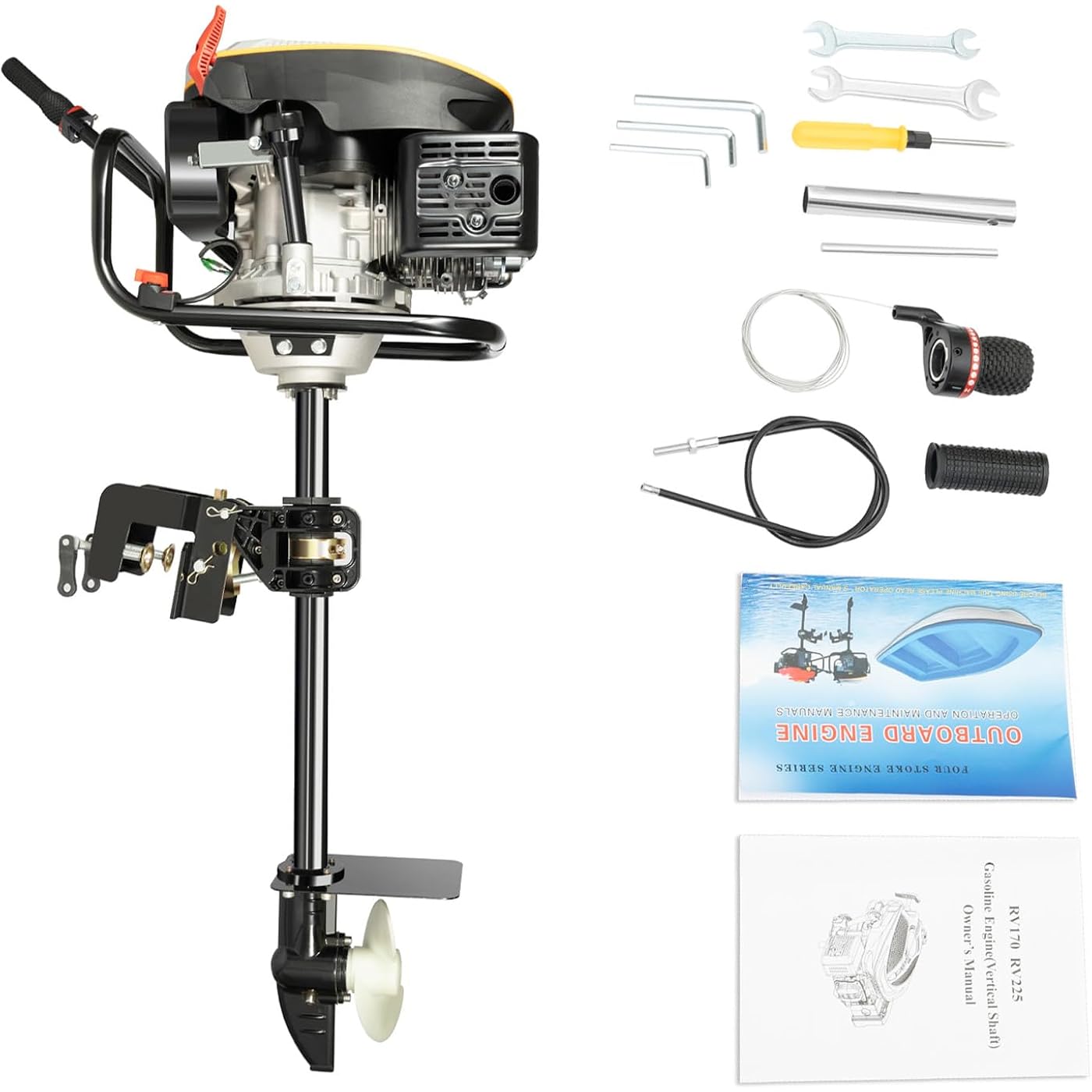

Included Components: 1* Outboard Engine 2* English Manuals All Accessories for Installation

Material Type: Aluminum, Nylon, Rubber
